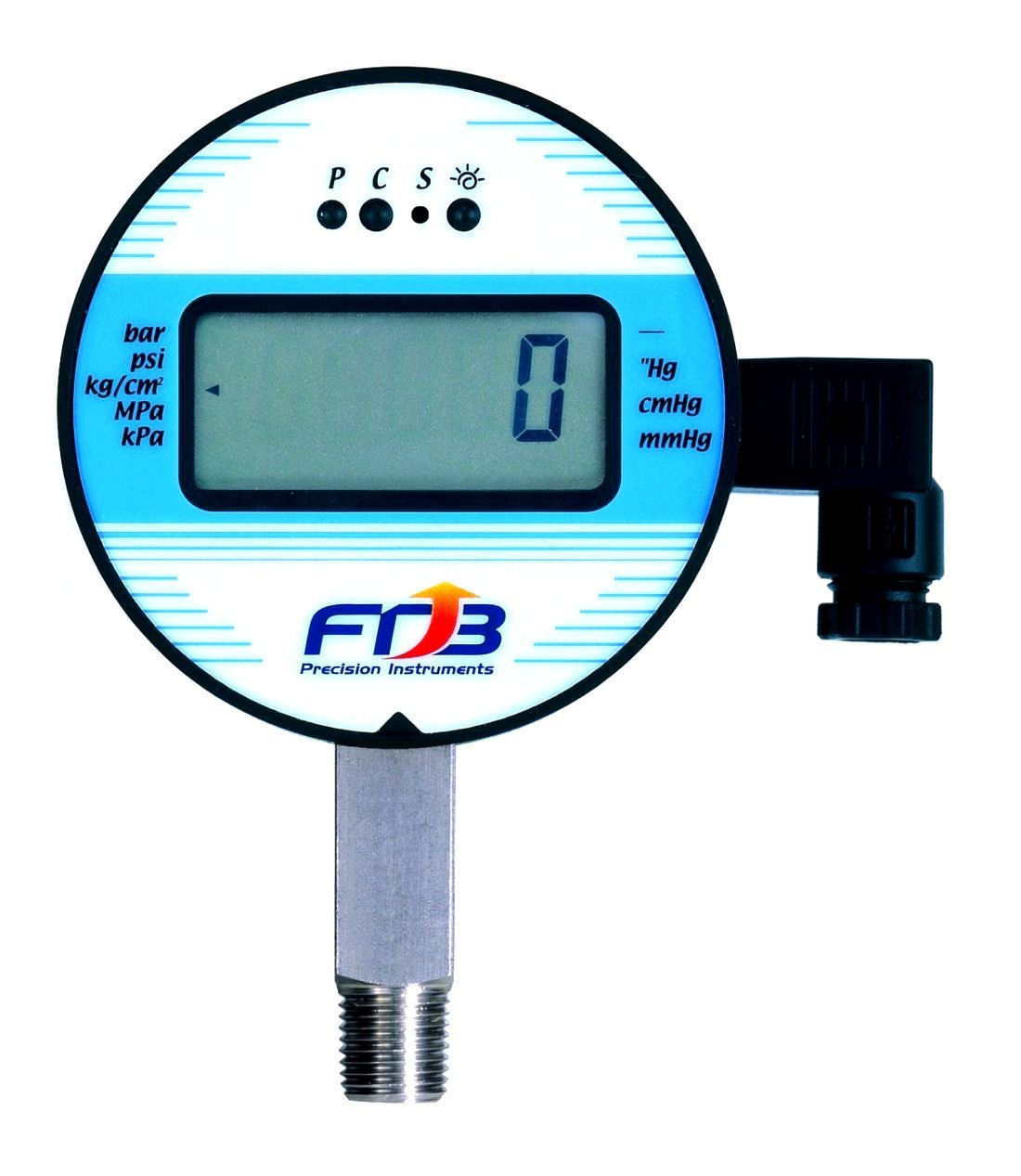

The PT-75 Pressure Transducers & Transmitters with 0.66% to 1% full scale accuracy uses FTB-developed and patented technology as your cutting edge, cost-effective provider for digital solutions.  The FTB-developed technology delivers stable and long-lasting performance.  5 1/2 digits blue backlit LCD makes PT-75 the largest in window size Pressure Transducer & Transmitter found available o market.  The PT-75 was built for the applications which the cost for digital solutions is highly concerned.

FTB PT-75 Pressure Transducers/Transmitters were designed to provide a wide variety of output signals suitable for all industrial applications, which need either CURRENT 4-20 mA or VOLTAGE (0-5 VDC or 0-10 VDC) outputs.  "One Size Fits All.", the output signals that PT-75 offers cover the entire industrial applications from hydraulic and pneumatic systems to refrigeration equipment with high accuracy of 0.66% to 1% Full Scale.

No need to worry about the Temperature Compensations that most pressure transducers/transmitters worry the most on market, the PT-75 is a more reliable Pressure Transducer/Transmitter derived from other FTB Digital-Family Products, Digital Pressure Gauges (DPG-75) and Digital Pressure Switches (DPS-75), with FTB-developed and patented technology.

Advanced manufacturing techniques combined with technologically advanced standard features allow FTB to offer PT-75 with no extra cost increased for an additional digital pressure gauge with 5 1/2 digits backlit LCD display, which is previously found only on a combination of transducers/transmitters with digital displays.

The PT-75 is rugged and features High Pressure Capture with pressure ranges ranging from vacuum (bar, "Hg, cmHg, mmHg) to 15,000 PSIG (displayed also in bar, kg/cm2, MPa, and kPa).  A direct current DC power of 5-24 Volts is required for direct current DC power input.  Typical applications include test and measurement in the process industries, hydraulic and pneumatic systems, industrial gases, industrial machinery and machine tools, injection molding machines, stamping and forming presses, and pumps and compressors.

The PT-75 Pressure Transducer & Transmitter do deliver additional analog outputs function to the applications which the control of set pressures is required.  Equipped with the analog outputs of CURRENT 4-20 mA or VOLTAGE 0-5/10 VDC, the PT-75 is the most economical pressure transducers & transmitters for all applications under the same roof.

The second generation PT-75 II and DPG-100 offers a better solution for all applications in one unit.  RS-485 serial communications, PNP or NPN open collectors, 0-5/10 VDC or 4-20 mA analog outputs are available to choose from.  RS-485, also known as TIA-485(-A), EIA-485, is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems.  PNP or NPN open collectors are suitable for replacing traditional mechanical switch contacts.  Analog outputs of 0-5/10 VDC and 4-20 mA are transmitter solutions to replace traditional pressure transmitters. The All-in-One design offers another ideal solution for system integration.

PT-75 Features & Specs:
Diameter: 3 inches (78 mm)
Operating Temperature: 14 - 392 F/-10 - 200 C
Storage Temperature: 14 - 122 F/-10 - 50 C
Ambient Temperature: 14 - 167 F/-10 - 75 C
Accuracy: +/- 0.66% to 1% Full Scale
Pressure Ranges: Negative (Vacuum) and Positive through 0-15000 psi
Over Pressure: 150% F.S.
Burst Pressure: 250% F.S.
Engineering Units: Negative/Vacuum (bar, "Hg, cmHg, mmHg), Positive (bar, psi, kg/cm2, MPa, kPa)
LCD Display: 5 1/2 Digits LCD, Blue Backlit with 0.5" height
Connection: Standard 1/4" PT Brass, SS316 Optional
Case Material: ABS Plastic
Field Calibration: Zero Adjustment
High Pressure Capture: Standard
CE Compliant: Standard

PT-75 II & DPG-100 Fetures & Specs
Diameter: 3 inches (78 mm - PT-75 II), 4 inches (100 mm - DPG-100)
Operating Temperature: 14 - 392 F/-10 - 200 C
Storage Temperature: 14 - 122 F/-10 - 50 C
Ambient Temperature: 14 - 167 F/-10 - 75 C
Accuracy: +/- 0.66% to 1% Full Scale
Pressure Ranges: Negative (Vacuum), Positive through 0-15000 psi, and Compound (-1-1, -1-2, -1-3, -1-4, -1-5, -1-6, -1-7, -1-8, -1-9, -1-10, -1-15, -1-20, -1-25, -1-30, -1-35, -1-40, -1-70, -1-100 kg)
Over Pressure: 150% F.S.
Burst Pressure: 250% F.S.
Engineering Units: "Hg, cmHg, mmHg, bar, psi, kg/cm2, MPa, and kPa
LCD Display: 5 1/2 Digits LCD, White Backlit with 0.5" height
Connection: Standard 1/4" PT Brass (PT-75 II), 1/2" PT Brass (DPG-100), SS316 Optional
Case Material: ABS Plastic (PT-75 II), Steel with Chrome-Plated (DPG-100)
Field Calibration: Zero Adjustment
High Pressure Capture: Standard
NPN/PNP Open Collectors: Up to 4 Editable (NO, NC, OFF) Contacts, NPN/PNP User-Selectable (DPG-100)
Transmitter Signal: 0-5/10 VDC, 2-10VDC, or 4-20 mA
Serial Communication: RS-485 Asynchronous Mode
CE Compliant: Standard

Models: (Externally 24VDC/110VAC/220VAC Powered)
