Industrial Thermometers
FTB Industrial Thermometers


> larger view

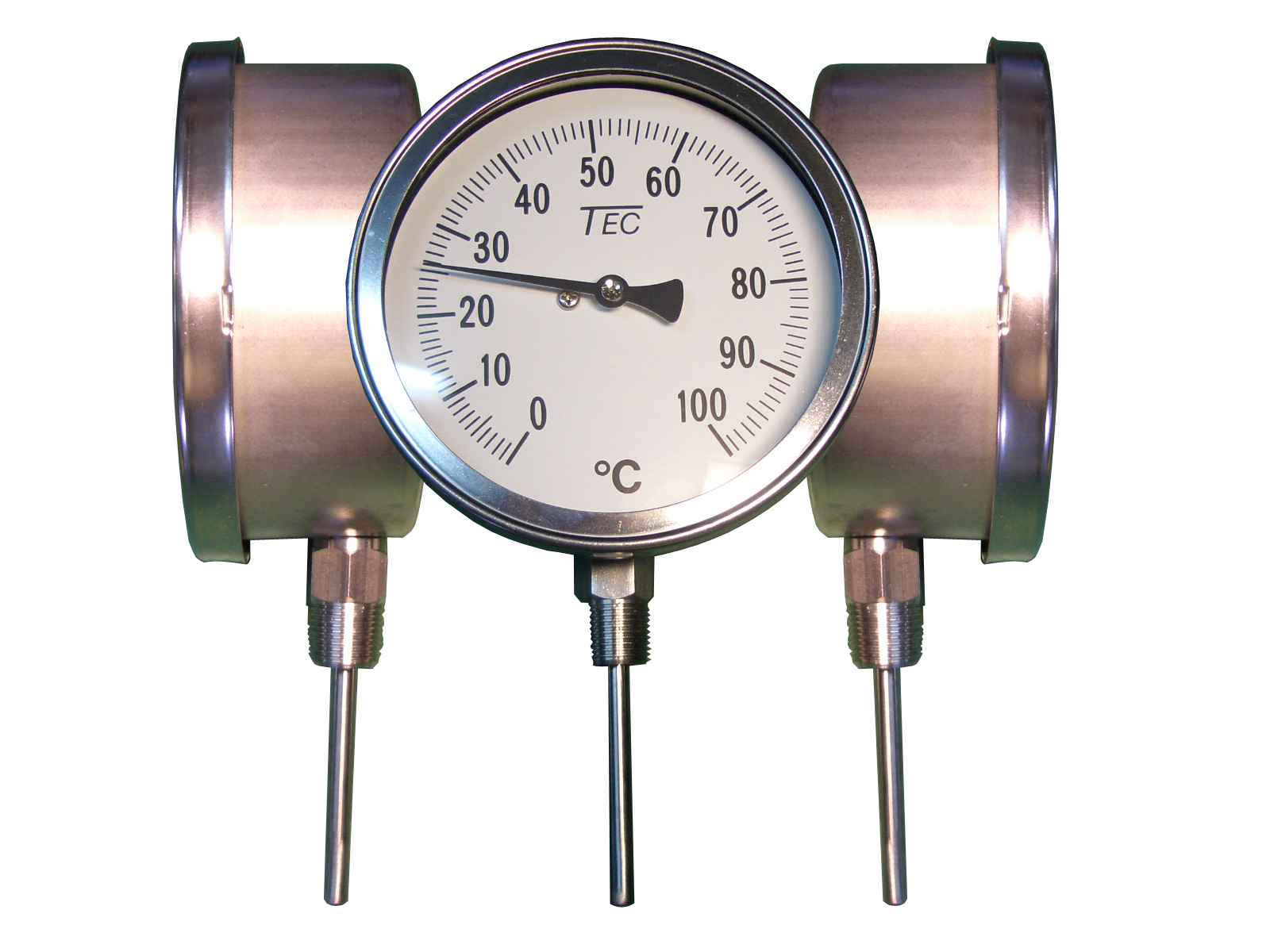

Bimetallic Thermometers:

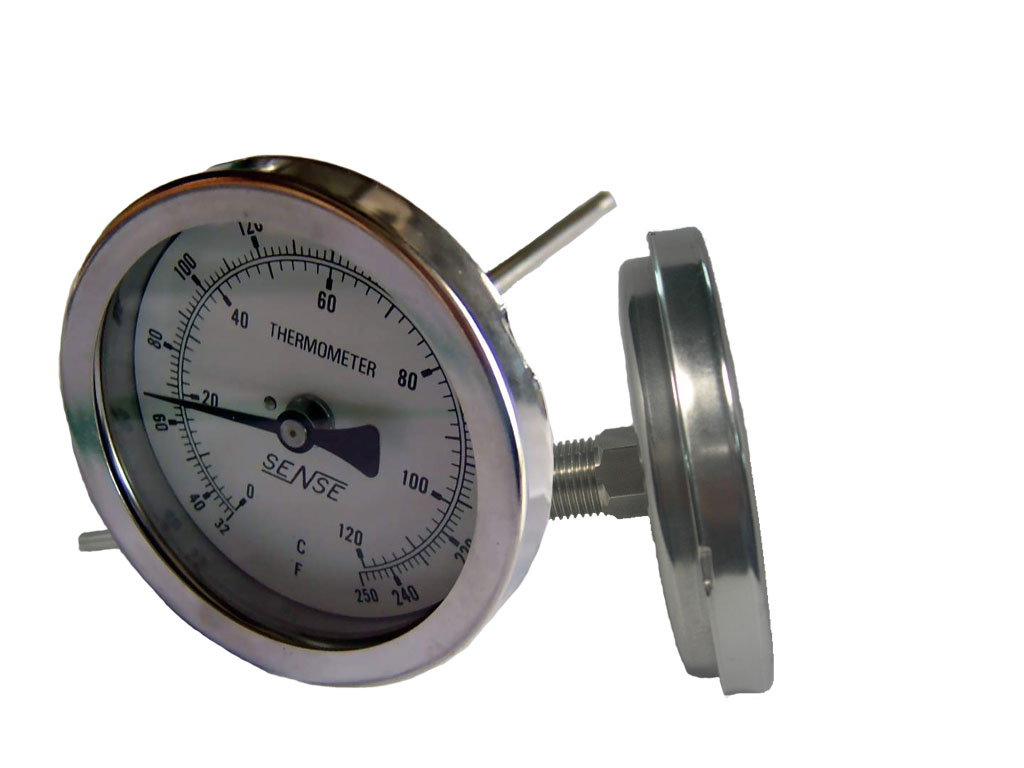

Back Entry Type Model BTT
Dial Size: 2 1/2", 3", 4", 5", and 6".
Temperature Range: -50 - 650 C.
Accuracy: 1% F.S.
Standard Stem Length: 6". Extended to 50" the longest.
Building Material: Stainless steel 304 case and stem. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Stem Diameter: 6.35 - 9.5 mm.














Back Entry Type Model BTI
Dial Size: 3", 4", 5", and 6".
Temperature Range: -50 - 650 C.
Accuracy: 1% F.S.
Standard Stem Length: 6". Extended to 50" the longest.
Building Material: Stainless steel 304 case and stem. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Stem Diameter: 6.35 - 9.5 mm.

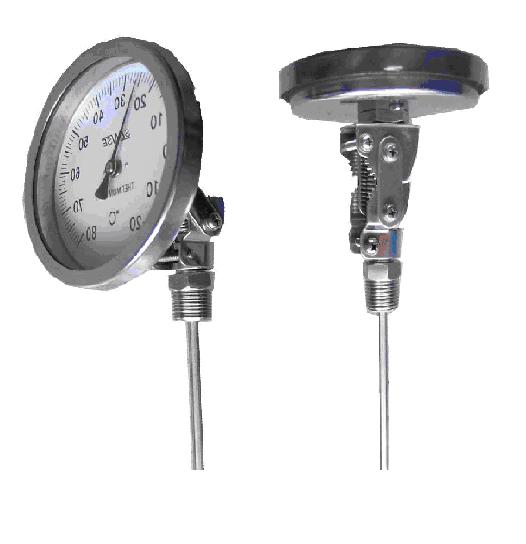

Adjustable Angle Type Model BTA Standard, BTAC with Contact
Dial Size: 3", 4", 5", and 6".
Lens: Resin or Glass.
Temperature Range: -50 - 650 C.
Accuracy: 1% F.S.
Standard Stem Length: 6". Extended to 50" the longest.
Building Material: Stainless steel 304 case and stem. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Stem Diameter: 6.35 - 9.5 mm.















Adjustable Angle Digital Type Model BTD
Dial Size: 3", 4".
Lens: Resin or Glass.
Temperature Range: -50 - 150 C.
Accuracy: 1% F.S.
Standard Stem Length: By Order.
Building Material: Stainless steel 304 or 316 case and stem. Stainless steel 316 is also available upon request.
Connection Thread: 1/4" NPT.
Stem Diameter: 6.35 - 10.0 mm.














Digital Thermometers:
Models: DT, DTT, DI, DA, DAT Types
Case: SS304 or SS316
Dial: 3", 4"
Stem Material: SS316
Temperature Range: -50 - 150 C
Ambient Temperature: 60 C
Water Proof: Yes
Connection: 1/2" NPT
Stem Length: By order
Accuracy:  0.5% F.S. (linear deviation: 1% F.S.)
Stem Dia.: 6.35 to 10 mm

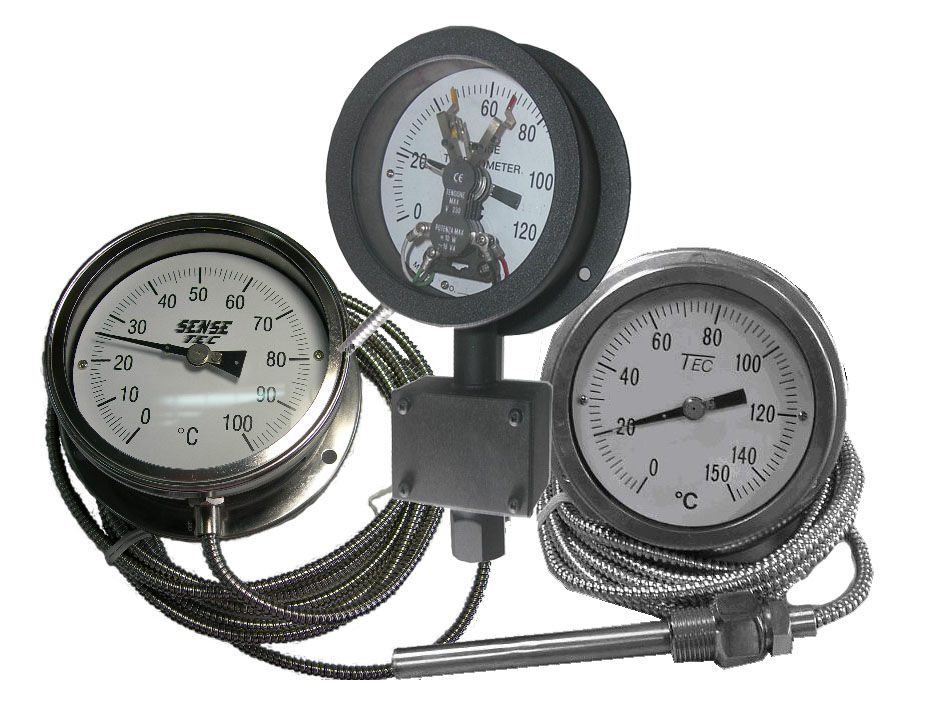

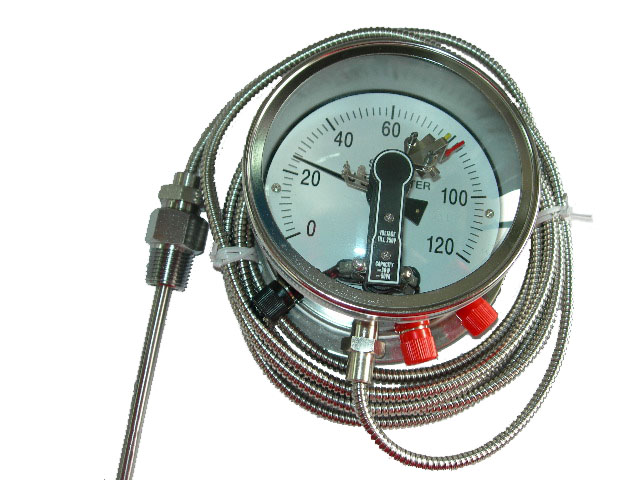

Remote Reading Thermometers:

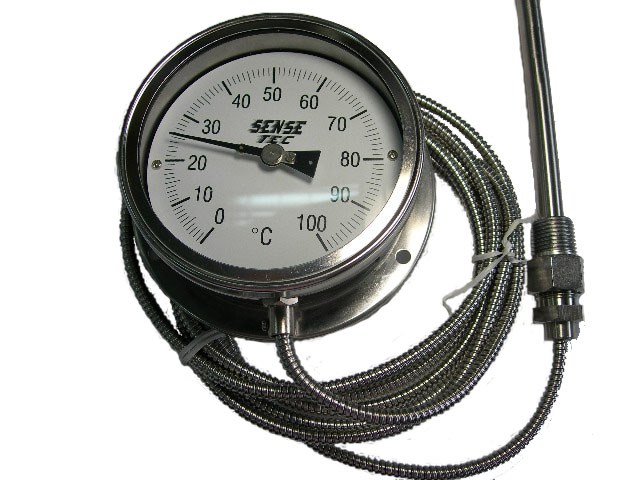

Wall Mounting with Flange Type Model FTWF Standard, FTWFC with Contact
Dial Size: 3", 4", and 5".
Lens: Glass.
Temperature Range: -50 - 650 C.
Accuracy: 1% F.S. with adjustable pointer.
Standard Stem Length: 6".
Standard Capillary Length: 3 meters. Extended to 20 meters the longest.
Building Material: Stainless steel 304 case and stem, and sensor. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Standard Stem Diameter: 12 mm. Available from 6.35 - 12 mm.











Wall Mounting with Ear Type Model FTWE Standard, FTWEC with Contact
Dial Size: 6" only.
Lens: Glass.
Temperature Range: -50 - 650 C.
Accuracy: 1% F.S. with adjustable pointer.
Standard Stem Length: 6".
Standard Capillary Length: 3 meters. Extended to 20 meters the longest.
Building Material: Stainless steel 304 case and stem, and sensor. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Standard Stem Diameter: 12 mm. Available from 6.35 - 12 mm.
Special Diaphragm with Customized designs for various applications, such as food processing and medical industries.

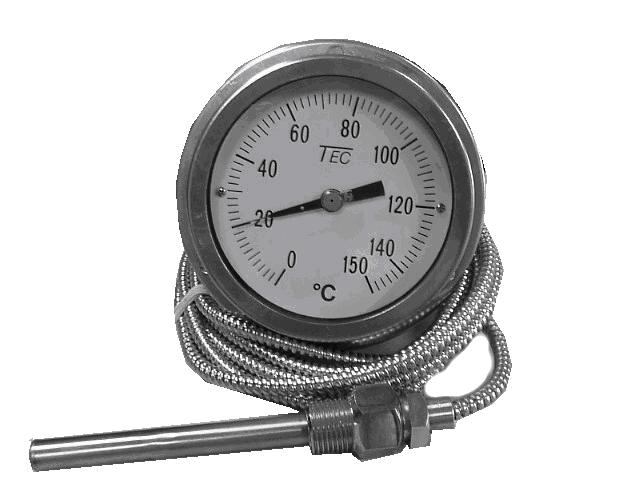

Flush Mounting without Flange Type Model FTFU Standard, FTFUC with Contact
Dial Size: 3", 4", and 5", and 6".
Lens: Glass.
Temperature Range: -50 - 650 C.
Accuracy: 1% F.S. with adjustable pointer.
Standard Stem Length: 6".
Standard Capillary Length: 3 meters. Extended to 20 meters the longest.
Building Material: Stainless steel 304 case and stem, and sensor. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Standard Stem Diameter: 12 mm. Available from 6.35 - 12 mm.














Flush Mounting with Flange Type Model FTFF Standard, FTFFC with Contact
Dial Size: 3", 4", and 5", and 6".
Lens: Glass.
Temperature Range: -50 - 650 C.
Accuracy: 1% F.S. with adjustable pointer.
Standard Stem Length: 6".
Standard Capillary Length: 3 meters. Extended to 20 meters the longest.
Building Material: Stainless steel 304 case and stem, and sensor. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Standard Stem Diameter: 12 mm. Available from 6.35 - 12 mm.














Direct Reading Thermometers:
Back Entry without Flange Type Model FTDT Standard, FTDTC with Contact
Dial Size: 3", 4", and 5", and 6".
Lens: Glass.
Temperature Range: -50 - 650 C.
Accuracy: 1% F.S. with adjustable pointer.
Stem Diameter: Standard 8 mm with 5" length thermowell (11 mm diameter).
Building Material: Stainless steel 304 case and stem, and sensor. Stainless steel 316 is also available upon request.
Connection Thread: 1/2" PT, NPT chromed brass.














Thermometer and Hygrometer Recorders:
Models: TR-1 single record , TR-2 double records.
Material: Stainless steel 304 case and sensor.
Recording Ranges: 0-100 C, 0-120 C, and 0-150 C for hygrometer; -50 - 500 C for thermometer.
Length of Spiral: 3 meters standard. Extended to 10 meters the longest.
Cycle Time: 24 hours.
Stem Diameter: Standard 8 mm with 5" length thermowell (11 mm diameter).
Power Consumption: AC/DC.

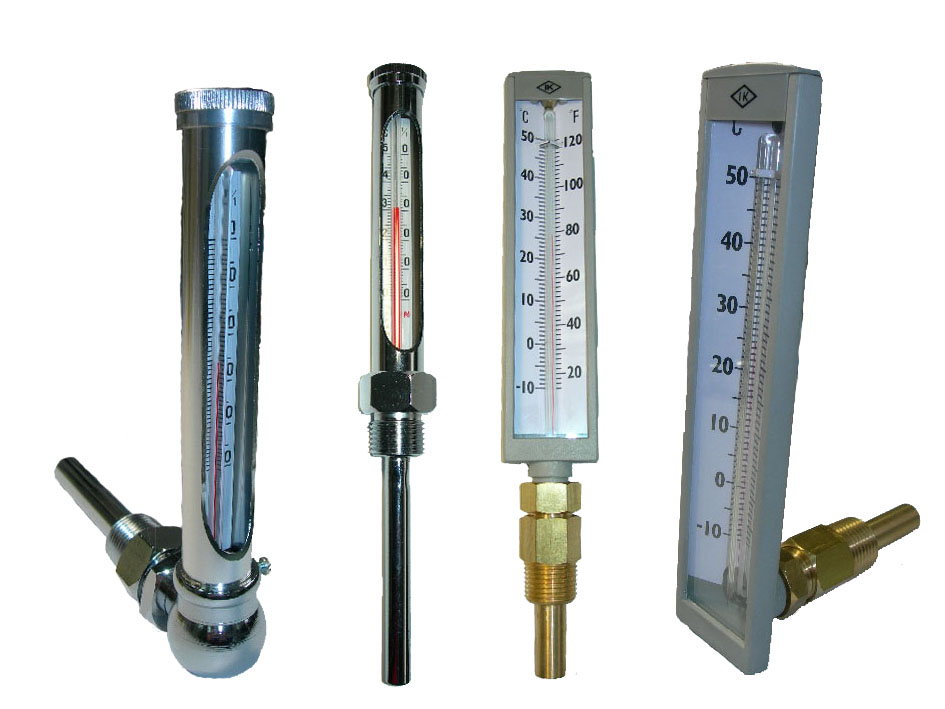

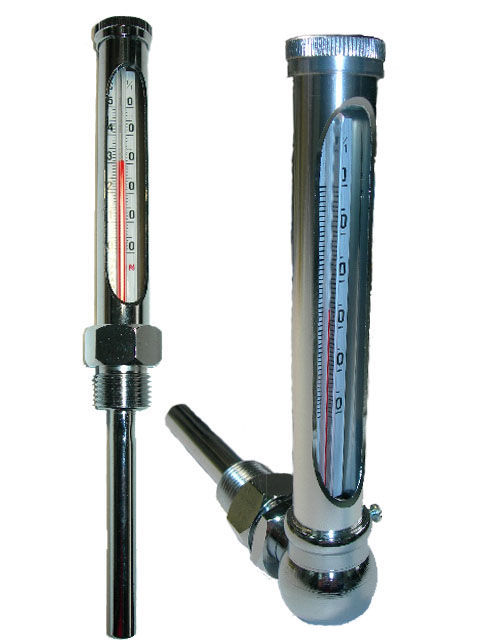

Glass Thermometers:
Triangle Type
Model: TG.
Material: Plastic or aluminum case.
Stem: Brass.
Round Type
Model: RG.
Material: Chrome-plated brass or aluminum case.
Stem: Chrome-plated brass or stainless steel 304.
Filling: Red organic liquid or mercury.
Temperature: -50 - 200 C for organic liquid filled; -50 - 500 C for mercury filled.

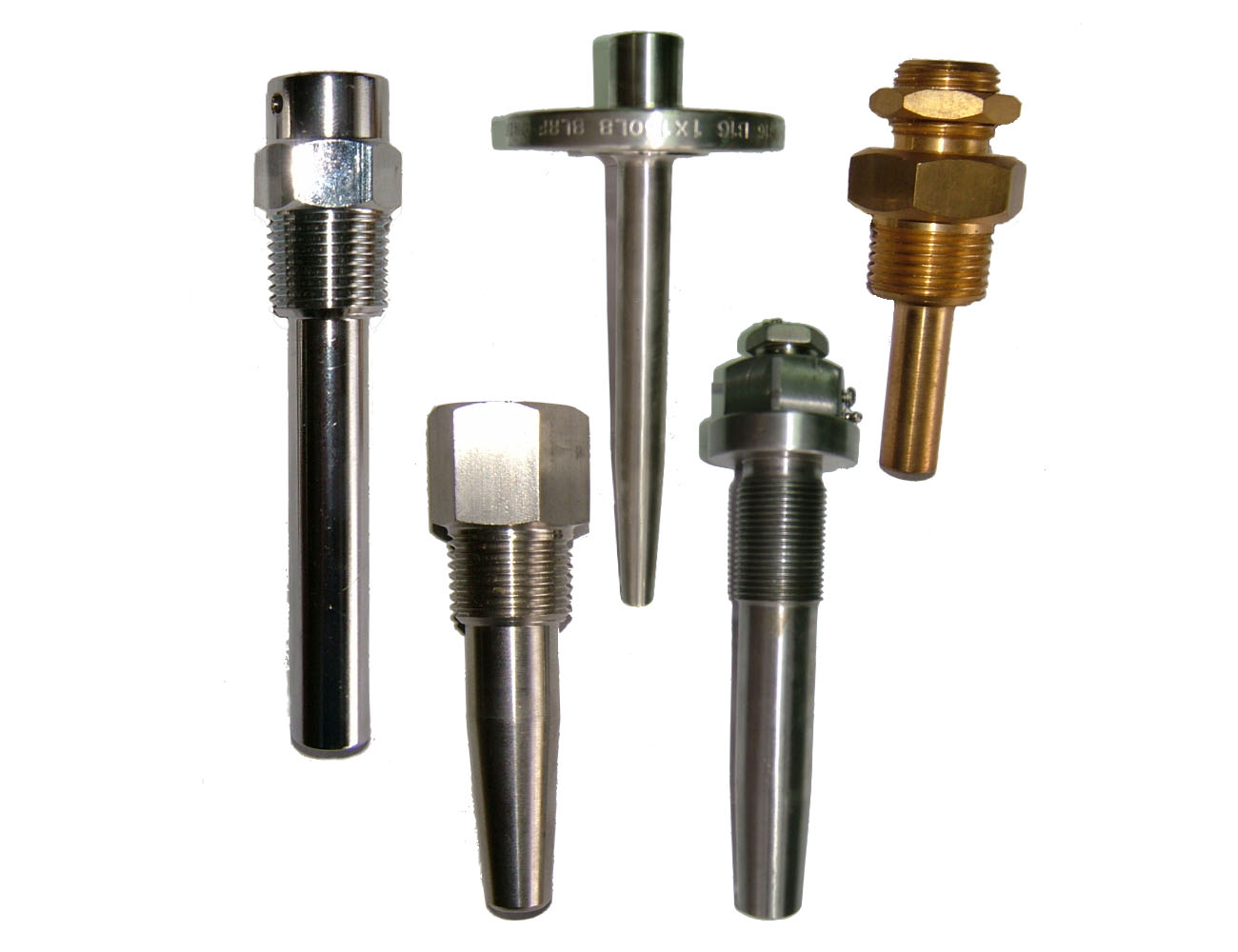

Thermometer Brass Fitting:














Level Thermometers:
Alcohol/Float Type
Model: LT-I/LT-T.














Compound Type
Model: LT-L.
