Introducing Dusun DSGW-090B 8 Channel LoRaWAN Indoor Gateway

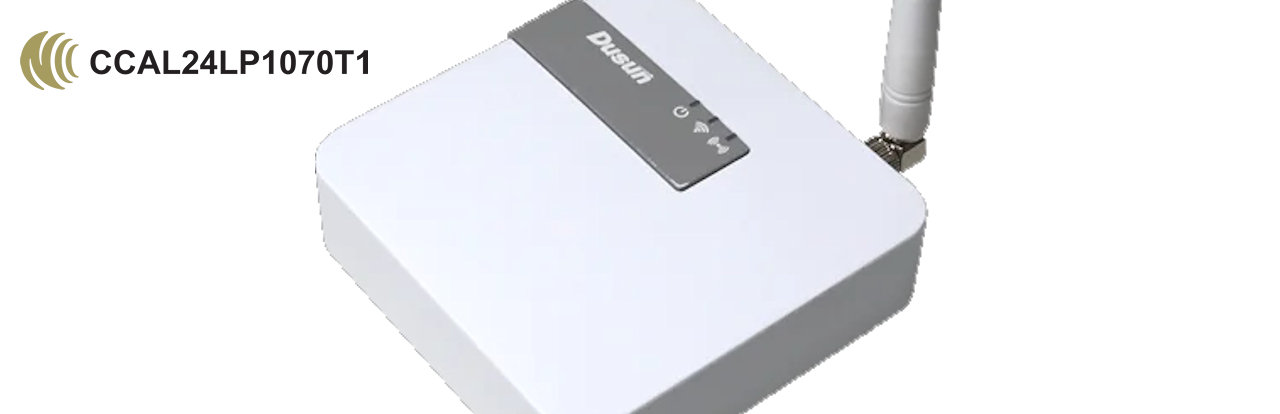

Dusun Indoor LoRaWAN Gateway DSGW-090B 8 Channel
DSGW-090B is a robust 8-channel indoor LoraWAN® Gateway Adopting SX1302 LoRa chip with Ethernet, Wi-Fi, & Bluetooth connectivity, offering long-range high-efficiency and reliable connection. Read further about its hardware list, region list, feature summary, block diagram, mechanical design, hardware and connectivity performance to know why it is so strong from HERE.

DSGW-090B LoRaWAN Gateway has a line of sight up to 15 km and can cover about 2 km in urbanized environment, which can cover larger areas and provide connectivity to more than 2000 nodes.

FEATURES:
1. 5V/2A type-C Power supply
2. Support IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol
3. Base on the LoRa Concentrator Engine: Semtech SX1302
4. TX power up to 27dBm, RX sensitivity down to -125dBm @SF7, RX sensitivity down to -139dBm @SF12, BW125kHz
5. Build-in ECC608 crypto chip for high security authentication and reliable Helium network connectivity
6. LoRa Frequency band support: CN470, RU864, IN865, EU868, US915, AU915, KR920, AS923
7. One WAN/LAN variable network port
8. FCC, NCC, CE, BSMI Certified

SPECS:
CPU: MT7628AN, MIPS24KEc, 580MHZ
RAM: 128MB Flash: 32MB
Encryption Chip: ECC608A/B
Power Adapter Input: 100V~240V AC/50~60HZ Output:5V/2A, USB type-C
Ethernet: RJ45
Indicator LEDs: Power LED normally on when powered on LoRaWAN LED is flash when the signal come Internet LED normally on after connecting to cloud
Reset Button: The reset button is hole button, After pressing the reset button for more than 5 seconds, the Gateway will be restored to the factory settings.
SD card slot: 1
Antenna: 1*external antenna (Lora), 3* internal Antenna (Wi-Fi,BLE,GPS)
Operating Temperature: -10℃~60℃ Models: SIG-36 (36 mm)

Certificates:
FCC-ID: 2AUXBDSGW-090B
NCC-ID: CCAL24LP1070T1
BSMI-ID: D57142 RoHS
CE
