Manufacturing Co., Ltd.
Industrial Thermometers
.jpg)
Bimetallic Thermometers:

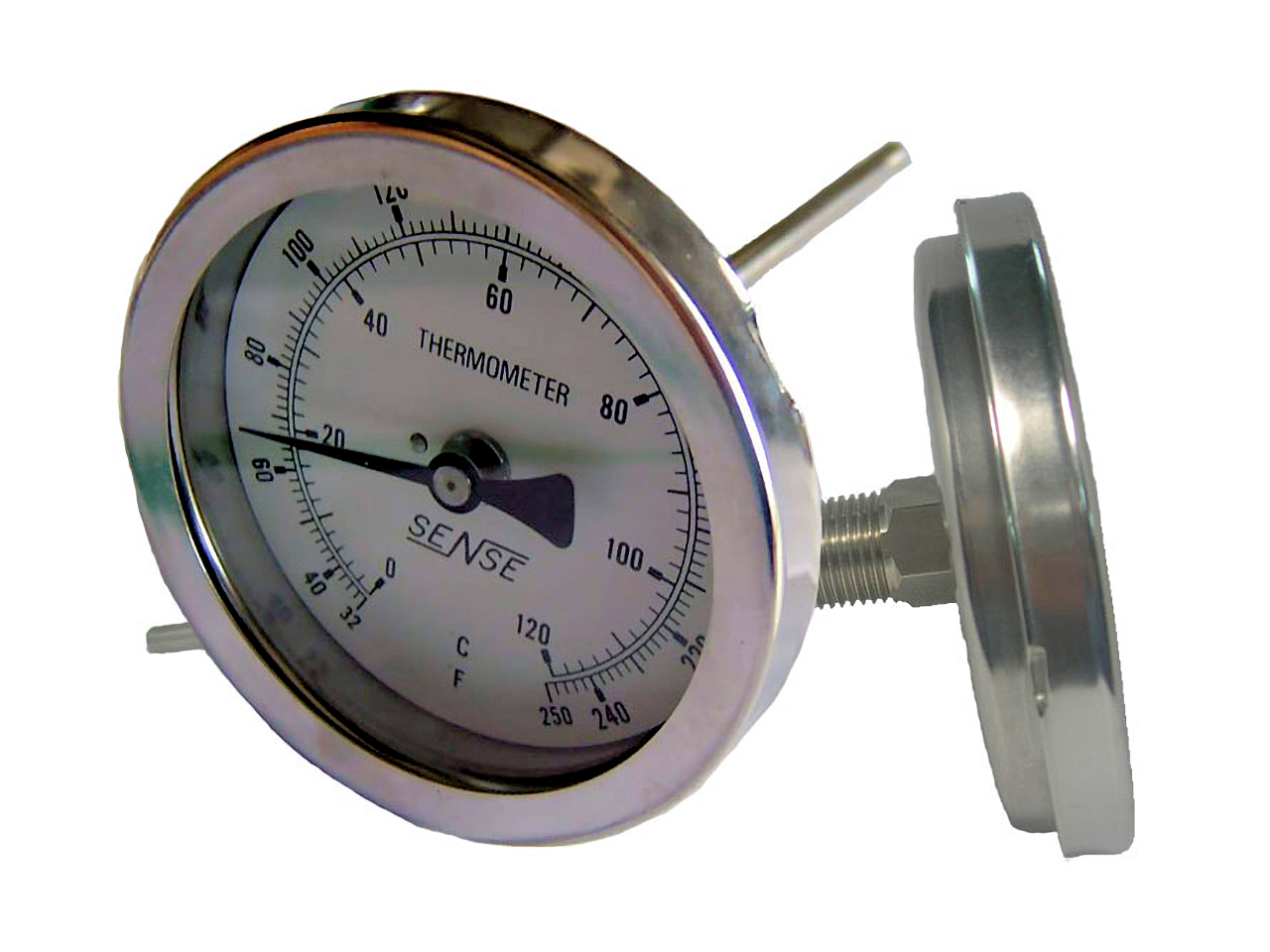

Back Entry BTT / Bottom Entry BTI / Adjustable Angle BTA / Adjustable Angle Digital Type BTD:
Dial Size: 3", 4", 5", and 6".
Lens: Resin or Glass.
Temperature Range: -50 - 650 C.
Accuracy: ±1% F.S.
Standard Stem Length: 6". Extended to 50" the longest.
Building Material: Stainless steel 304 case and stem. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Stem Diameter: 6.35 - 9.5 mm.

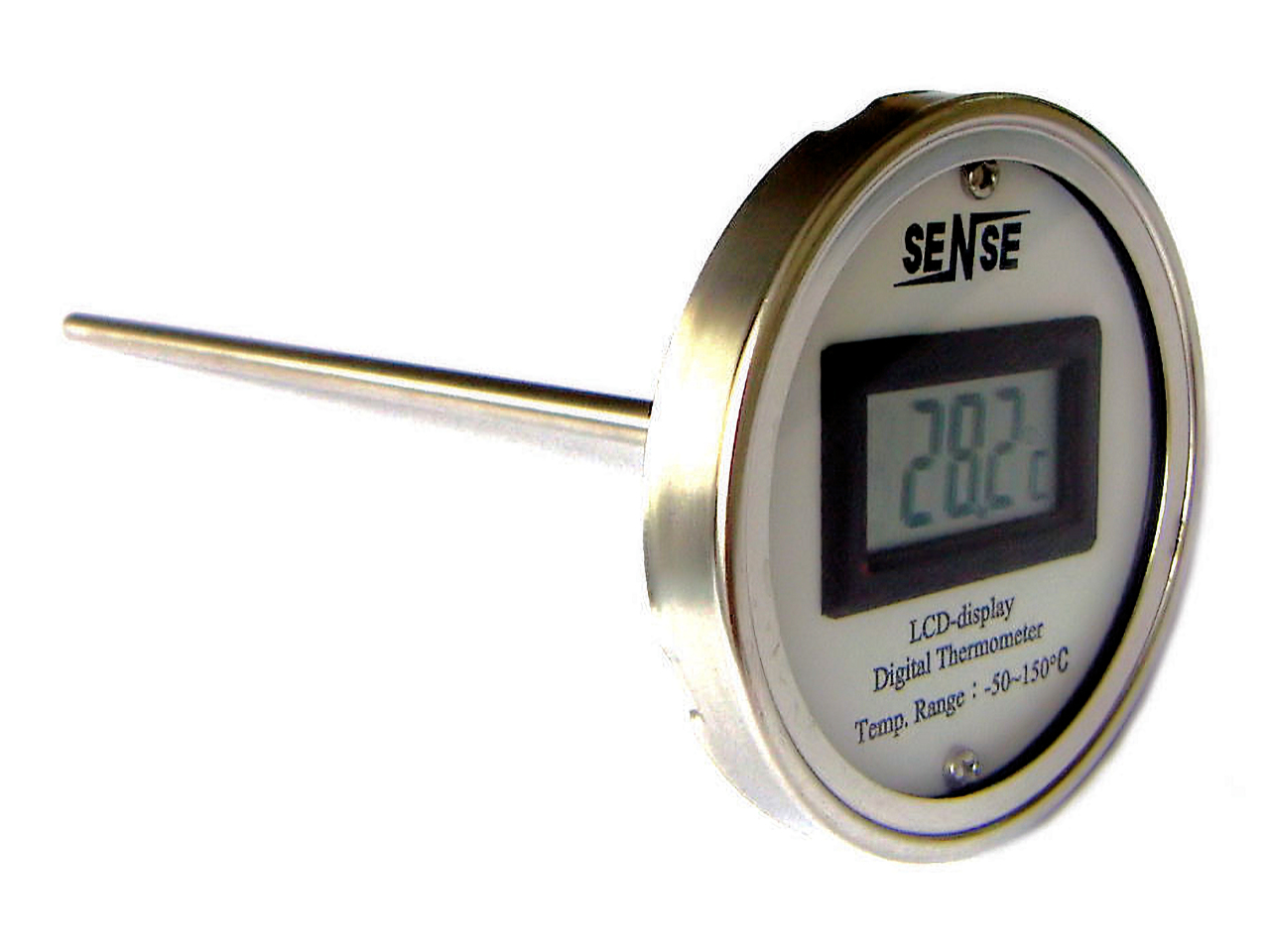

Digital Thermometers:
Models: DT, DTT, DI, DA, DAT Types
Case: SS304 or SS316
Dial: 3", 4"
Stem Material: SS316
Temperature Range: -50 - 150 C
Ambient Temperature: 60 C
Water Proof: Yes
Connection: 1/2" NPT
Stem Length: By order
Accuracy: ±0.5% F.S. (linear deviation: ±1% F.S.)
Stem Dia.: 6.35 to 10 mm

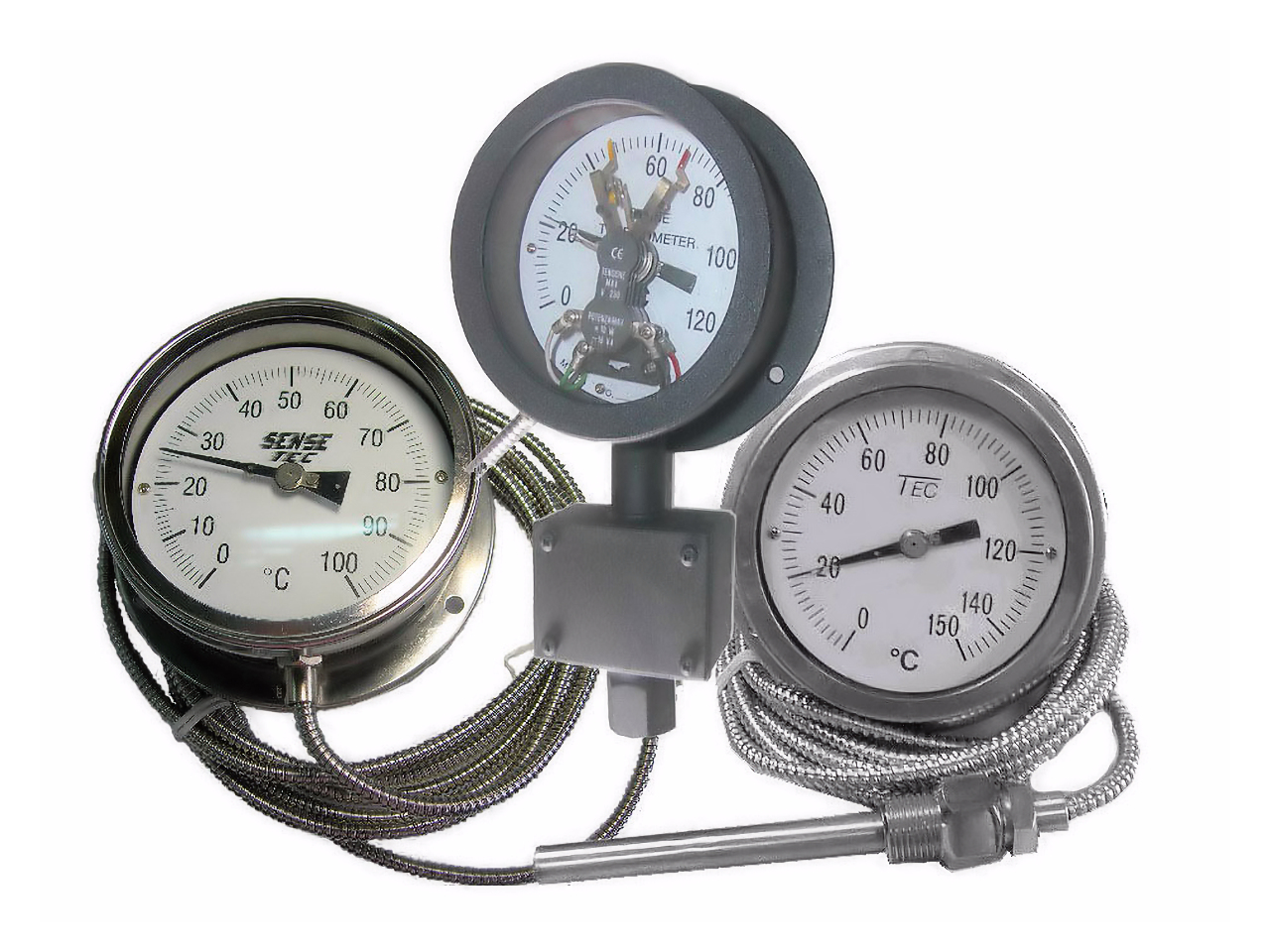

Remote Reading Thermometers FTWF|FTWFC / Wall Mounting with Ear Type FTWE|FTWEC / Flush Mounting w/o Flange FTFU|FTFUC / Flush Mounting with Flange FTFF|FTFFC / Direct Reading Back Entry w/o Flange FDTD|FDTDC
Dial Size: 3", 4", 5", and 6".
Lens: Glass.
Temperature Range: -50 - 650 C.
Accuracy: ±1% F.S. with adjustable pointer.
Standard Stem Length: 6".
Standard Capillary Length: 3 meters. Extended to 20 meters the longest.
Building Material: Stainless steel 304 case and stem, and sensor. Stainless steel 316 is also available upon request.
Connection Thread: 1/4", 1/2" PT, NPT, or on request.
Standard Stem Diameter: 12 mm. Available from 6.35 - 12 mm.
Special Diaphragm with Customized designs for various applications, such as food processing and medical industries.
Photo Gallery
If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.
.jpg)
DT
.jpg)

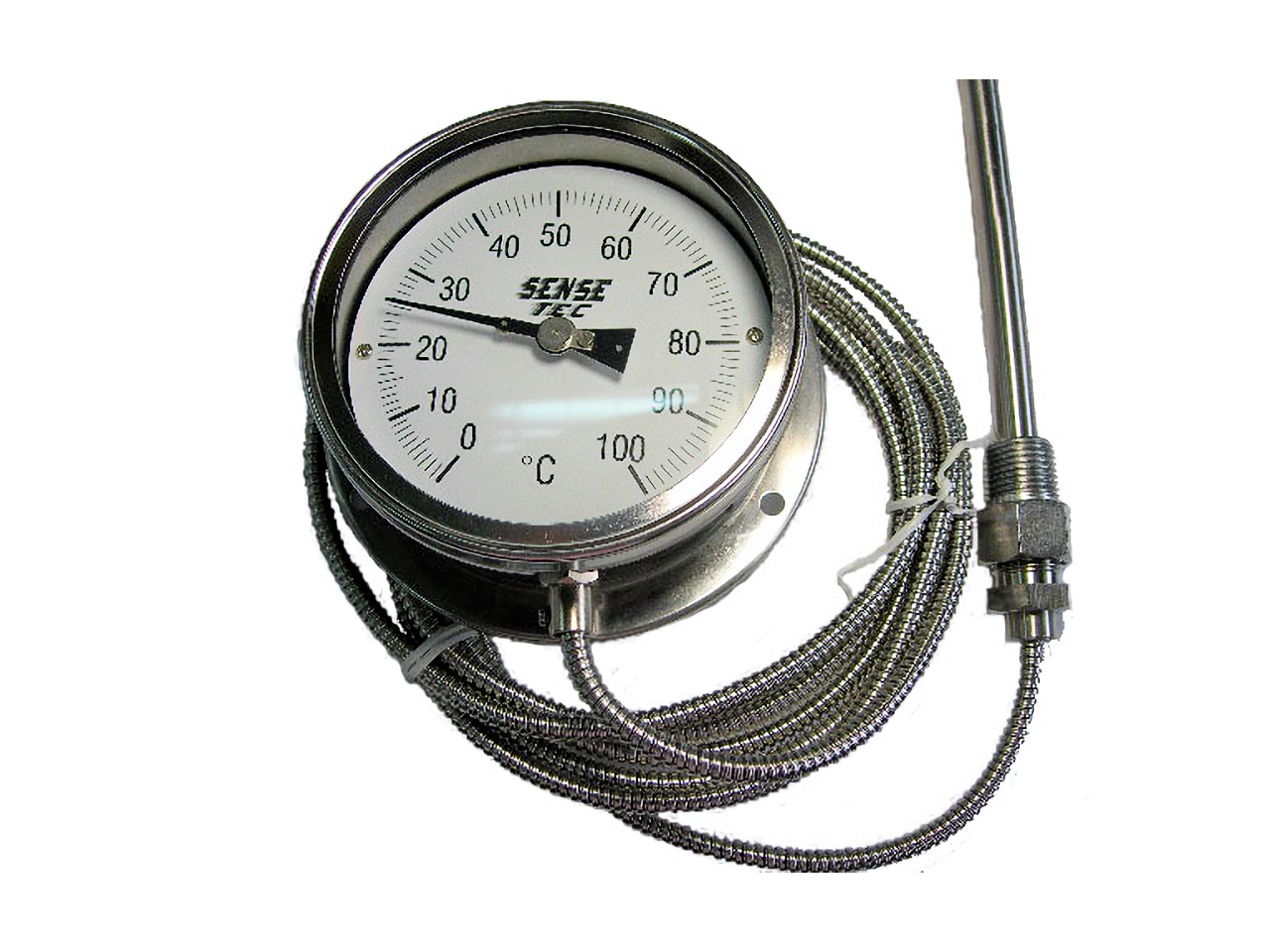

FTWFC
.jpg)
BTI
.jpg)
FTWE
.jpg)
FTFU / FTFF / FTDT
.jpg)

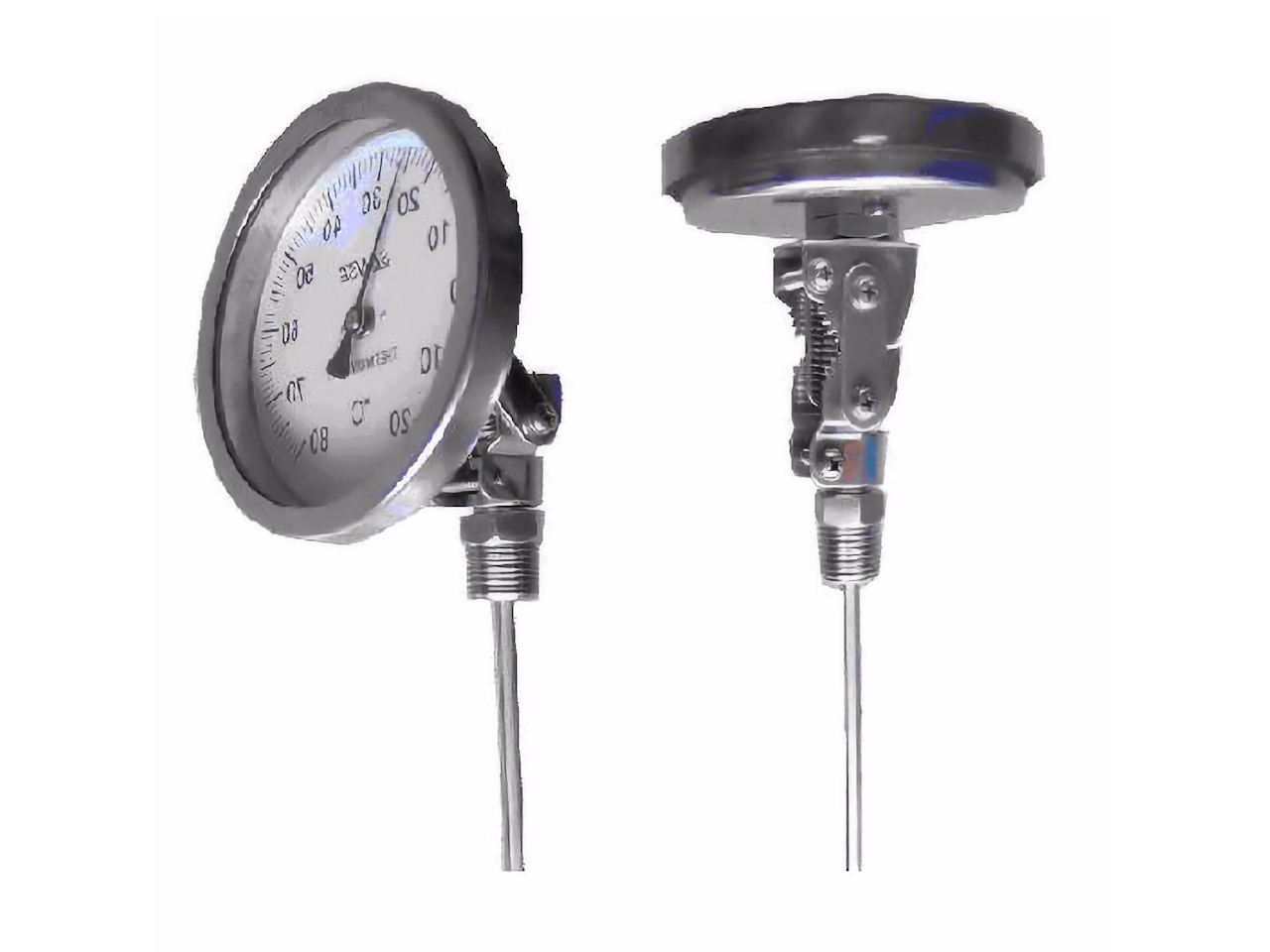

BTA
