Smart LoRa IoT Fire Extinguisher Pressure Gauges

SIG-36 Smart LoRa IoT Fire Extinguisher Pressure Gauges
LoRa Transmitted IoT Fire Extinguishers for both local display and remote alarm notification in Android, iOS, PC (both front and back ends) applications. Value-added "EMERGENCY" notification button with indoor addressing makes Smart LoRa IoT Transmitted Fire Extinguishers a helpful mobile emergency device everywhere when needed.  Additional user-defined temperature monitoring helps prevent fire source expansion in advance.

FEATURES:
Long range transmission up to 20 km in wide open areas
Real-time accessibility 24/7
Notify when extinguisher is removed or pressure is below safety level
Notify when extinguishers expires - the potential of fire extinguisher failures in progress
Notify when preset temperature is reached - the generation of a potential fire source in progress
Device expansions available
Built-in mobile "EMERGENCY" button makes every extinguisher a life saver
Mobile accessibility when you are on the GO. (iOS/Android Apps, and PC Portal)
LoRa Gateways can monitor thousands of IoT Fire Extinguisher Gauges at the same time.

SPECS:
Models: SIG-36 (36 mm)
Pressure Ranges: Assigned by customers.
Dial Sizes: 36 mm
Bourdon Tube: Standard brass with optional SS316
Movement: Standard brass
Connection: Standard brass, 1/8" PT or NPT, M10x1.2 to choose from
Pointer: Steel
Case: Stainless Steel, Center Back Mount
Engineering Units: psi, kg/cm2, MPa
Voltage: Battery DC 3V
Transmission: Periodic
Connectivity: LoRa
ISM Band: By region

LoRa Gateway/ Web Portal/ iOS/ Android:
Supplied Free of Charge for Web Portal, iOS & Android downloads. LoRa gateway will be quoted along with SIG-36 together. Software supported languages are English, Traditional Chinese, Simplified Chinese, Japanese, and Korean.
iOS: Download Here
Android: Download Here

Videos:
Chinese
Jananese

PowerPoint Presentation:
English

• Catalogs Download

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.

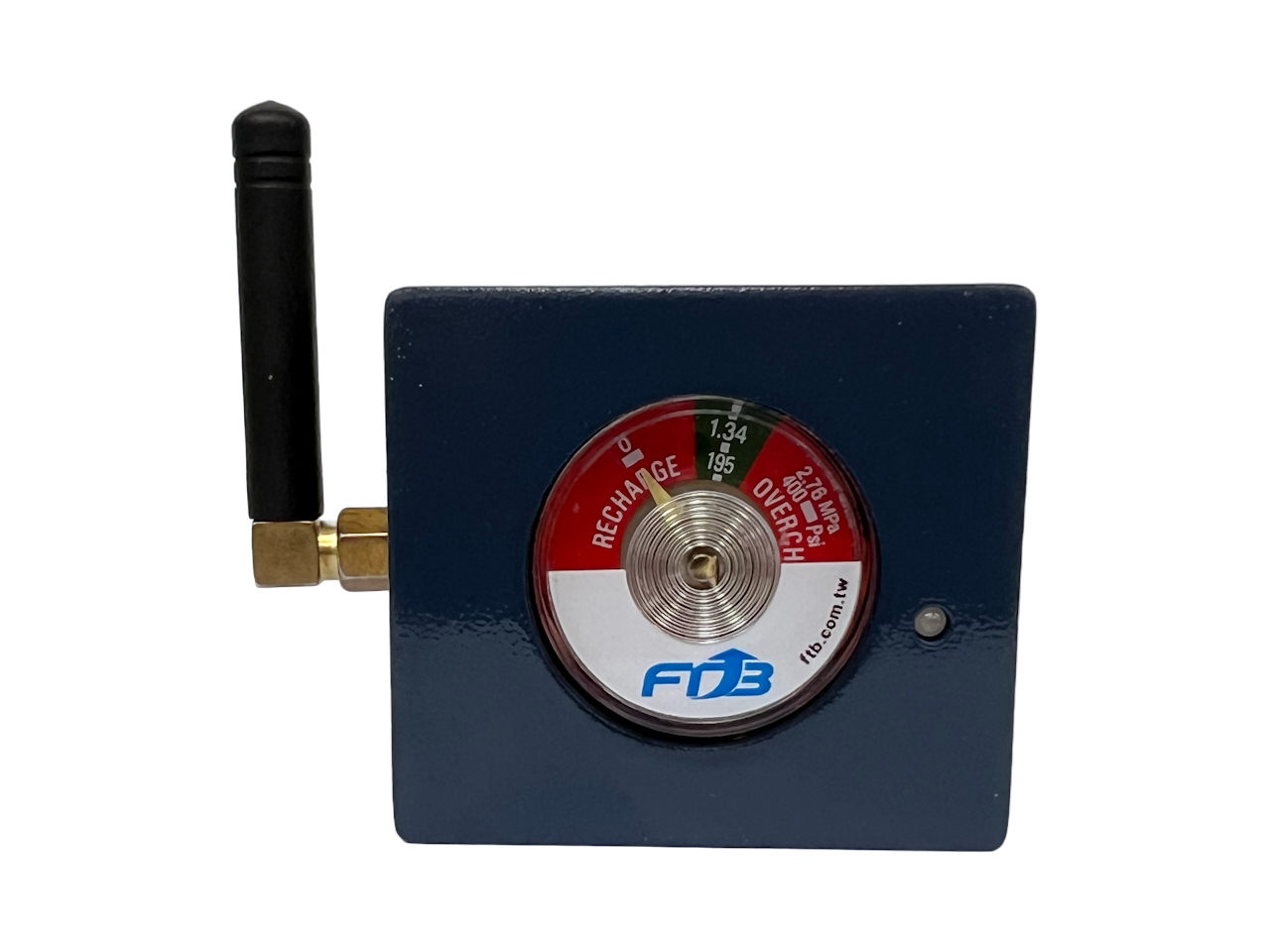

SIG-36 (outdated)

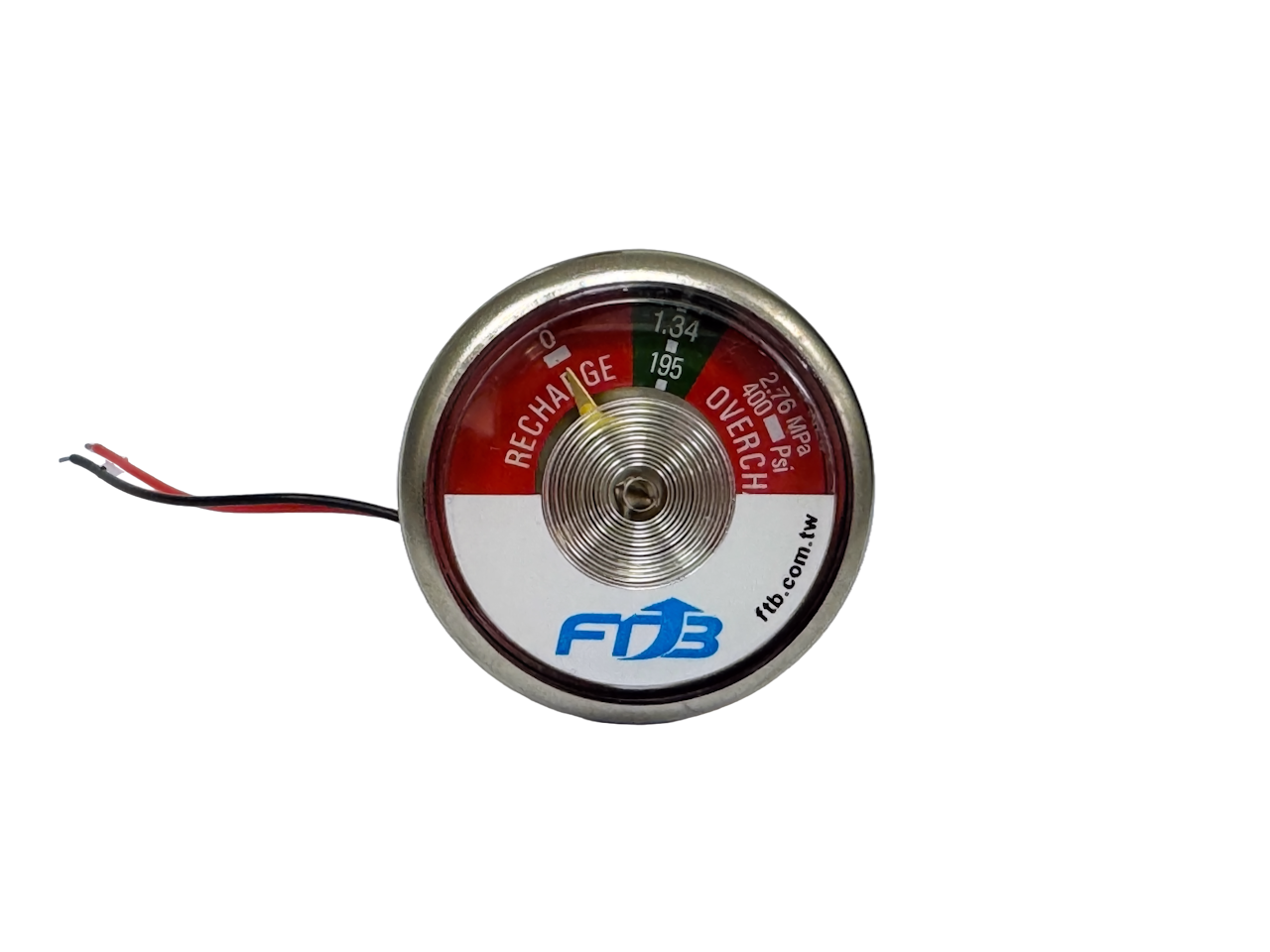

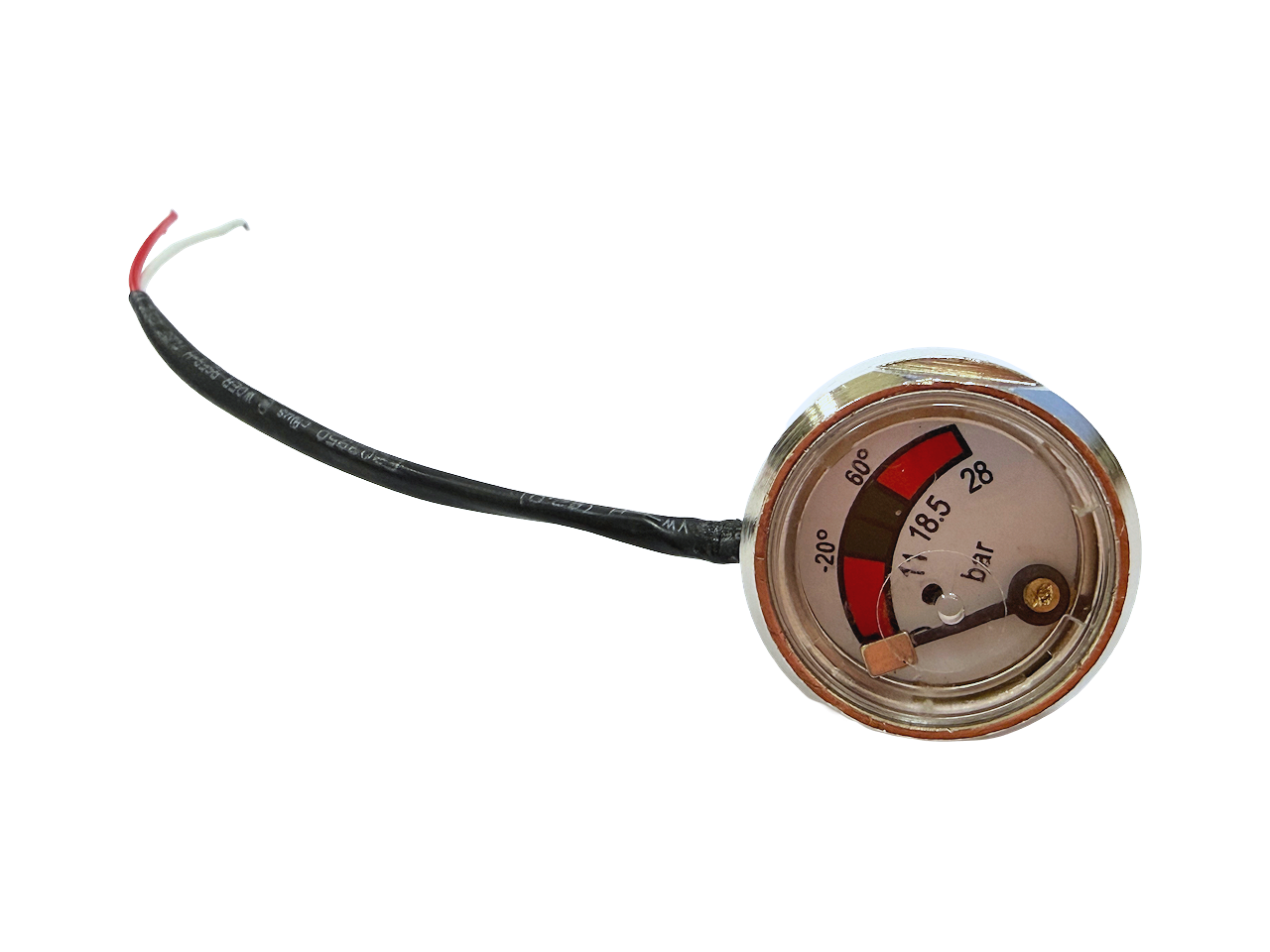

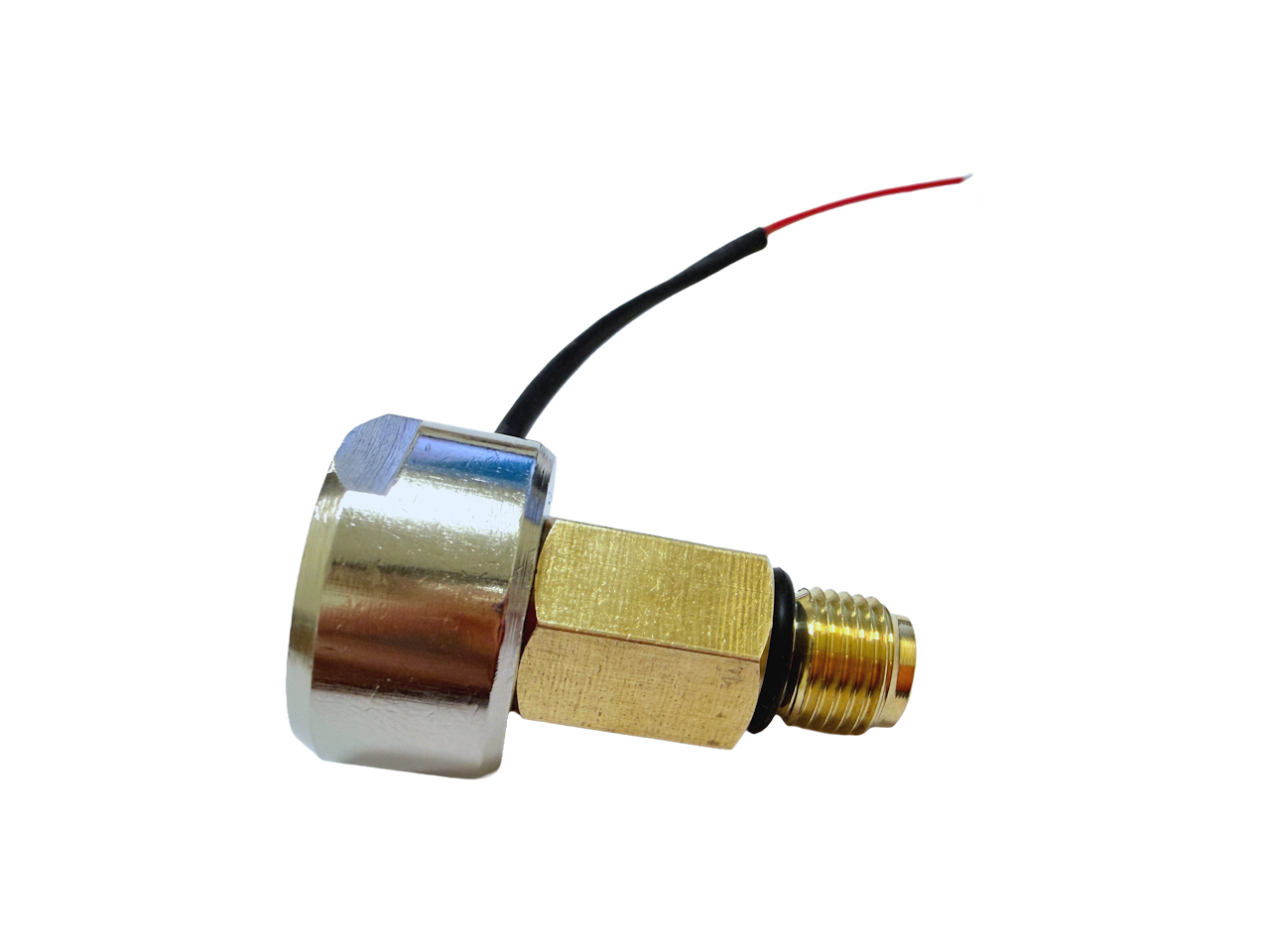

SG-36F (1 Contact)

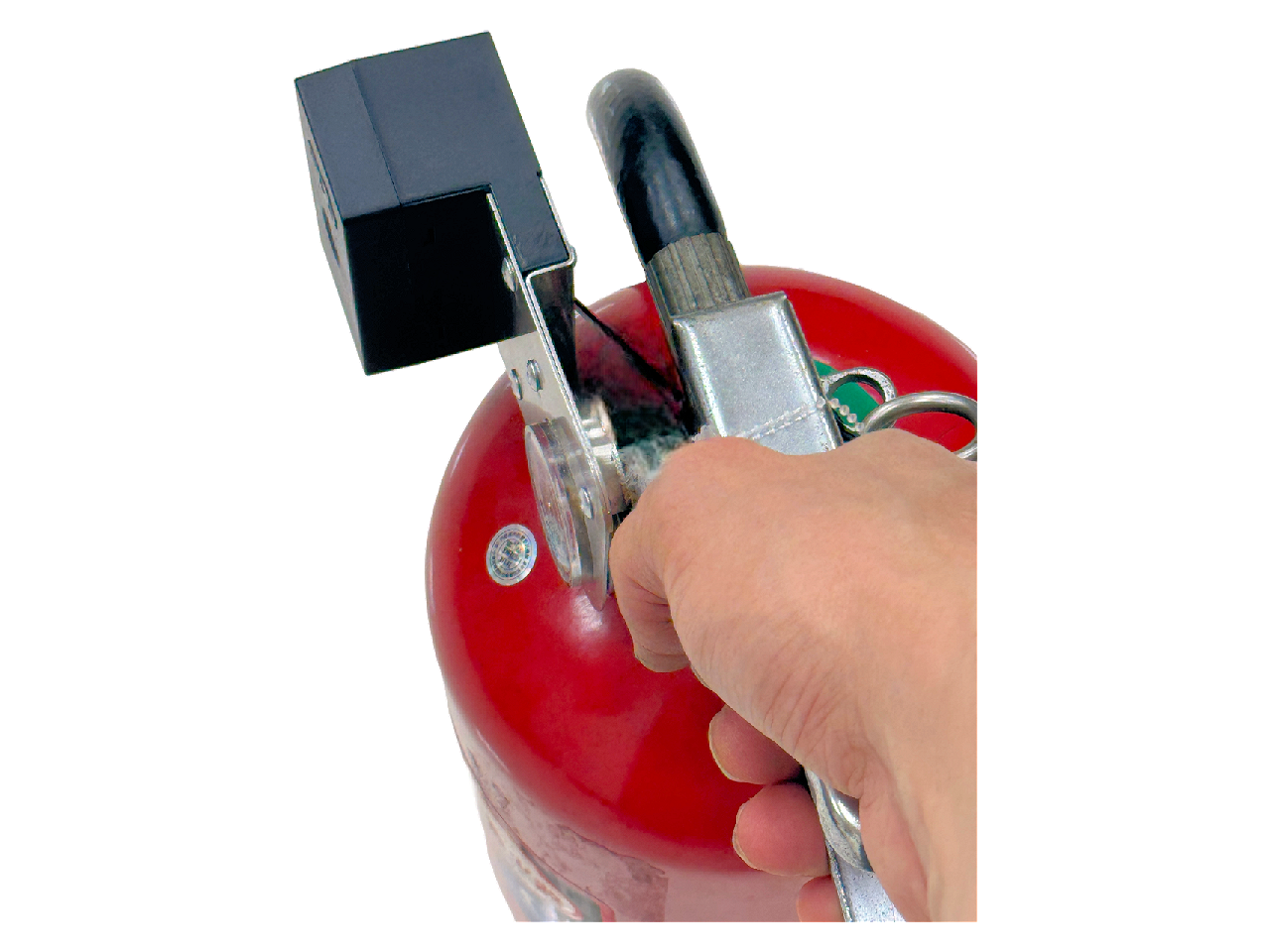

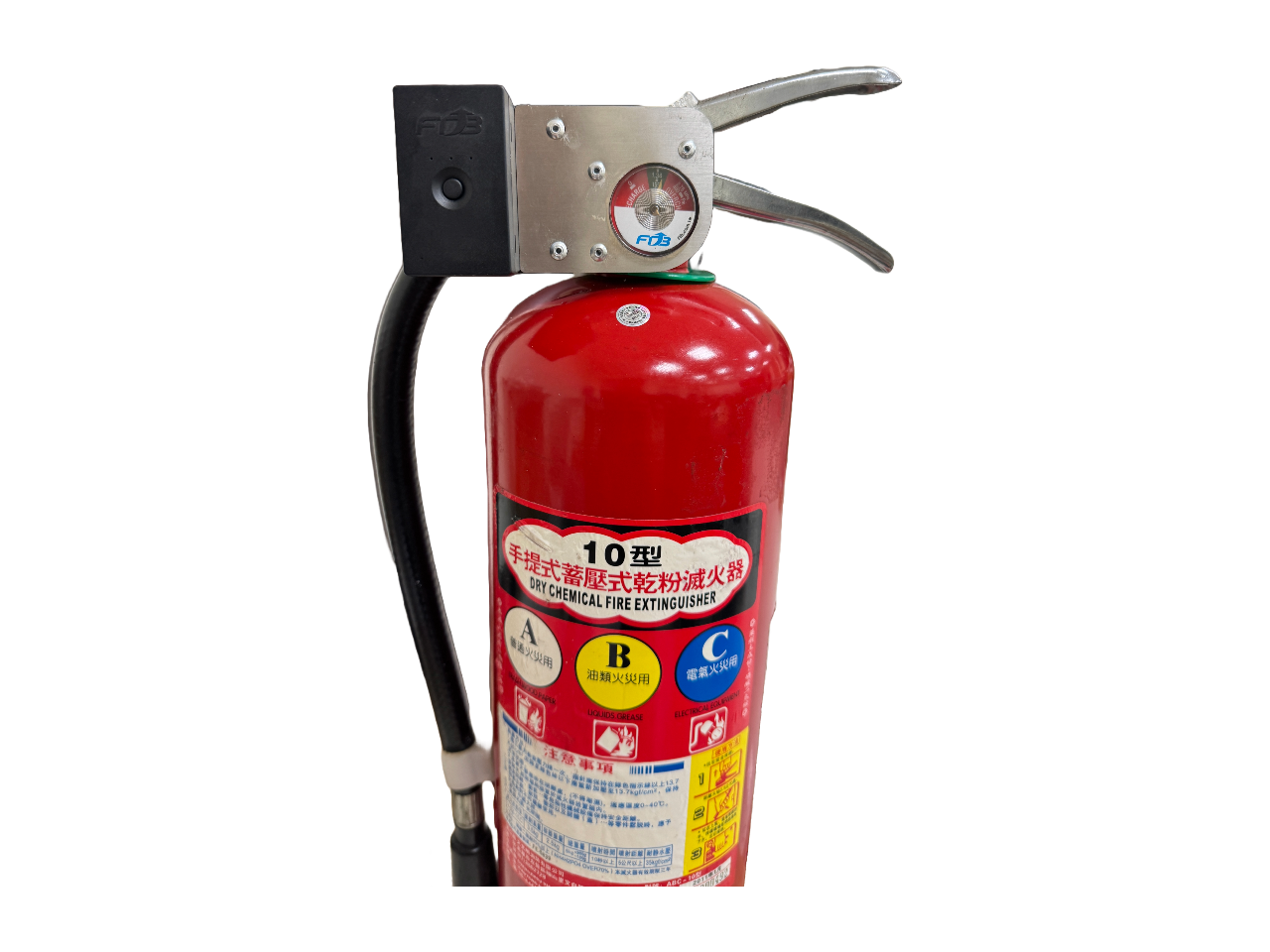

SIG-36 on Extinguisher

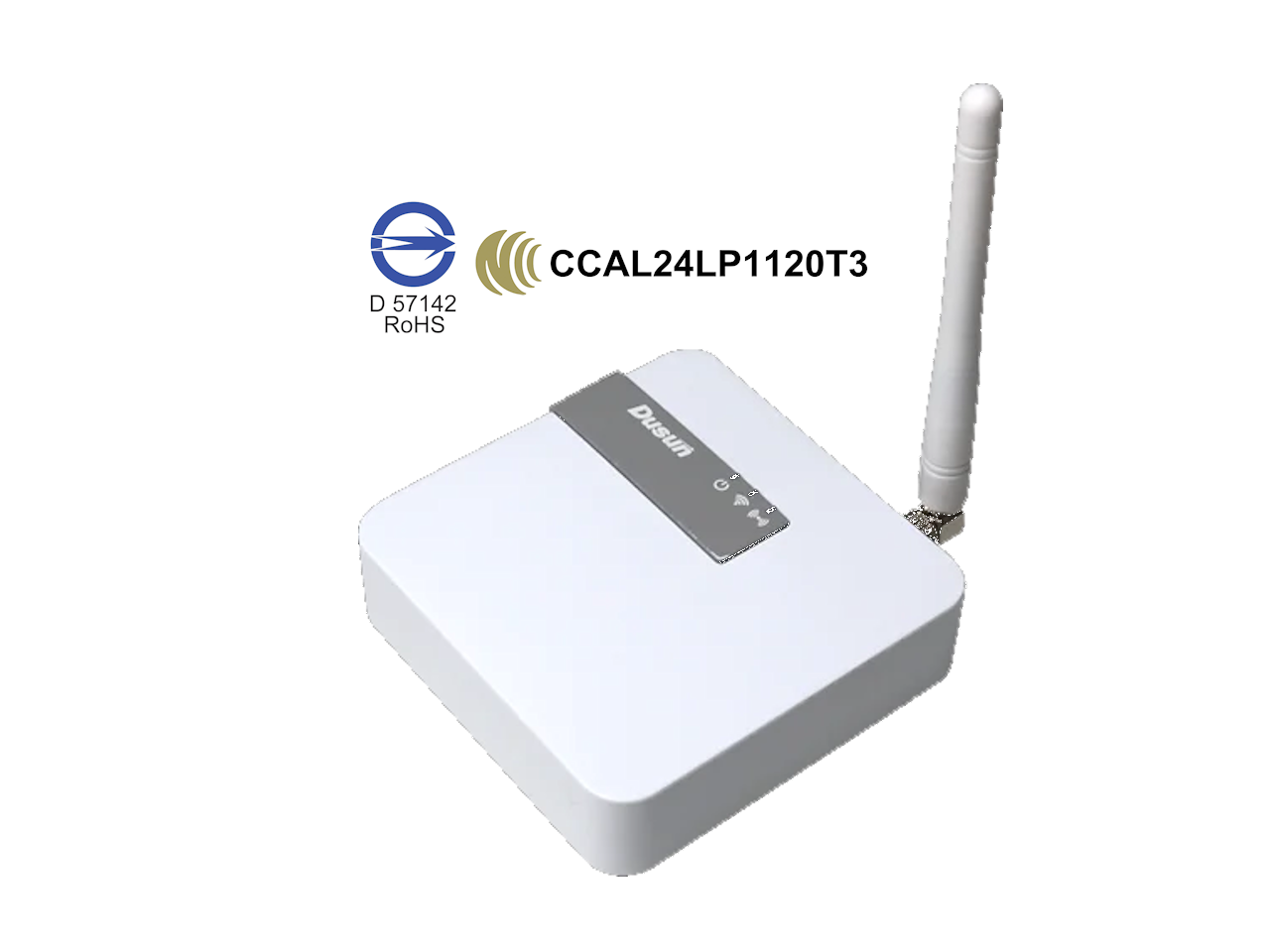

LoRaWAN Gateway 090B

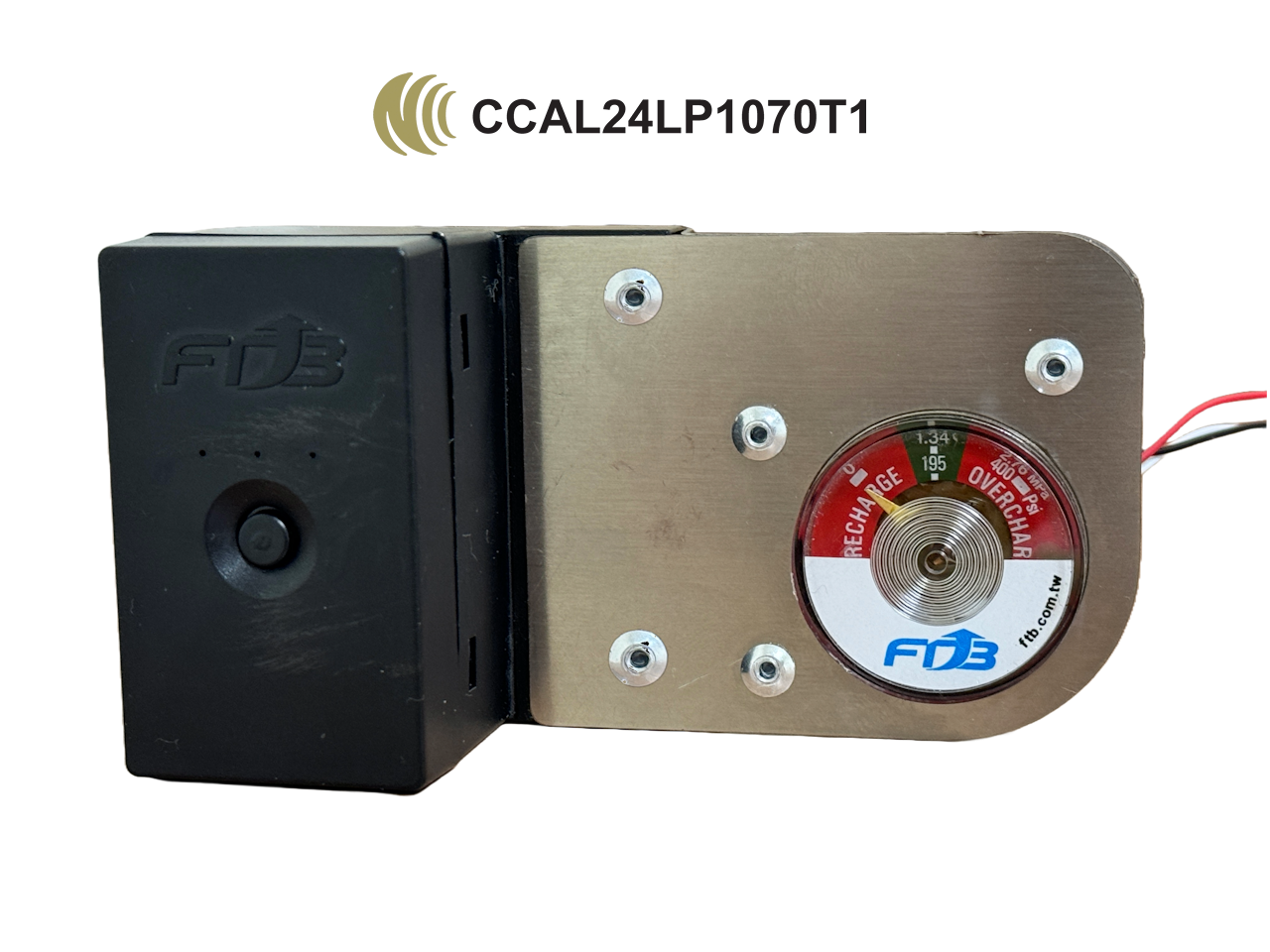

SIG-36-Complete

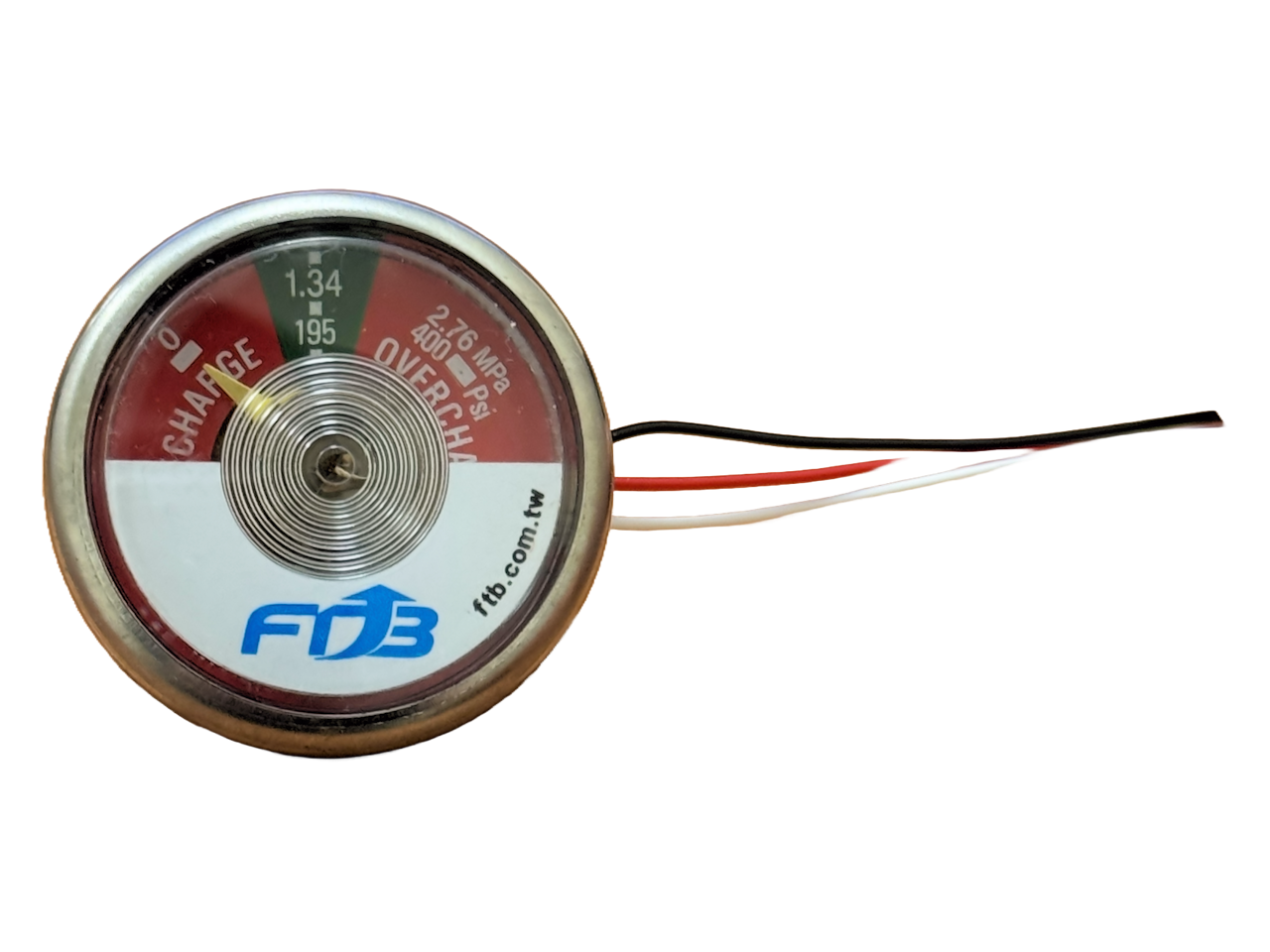

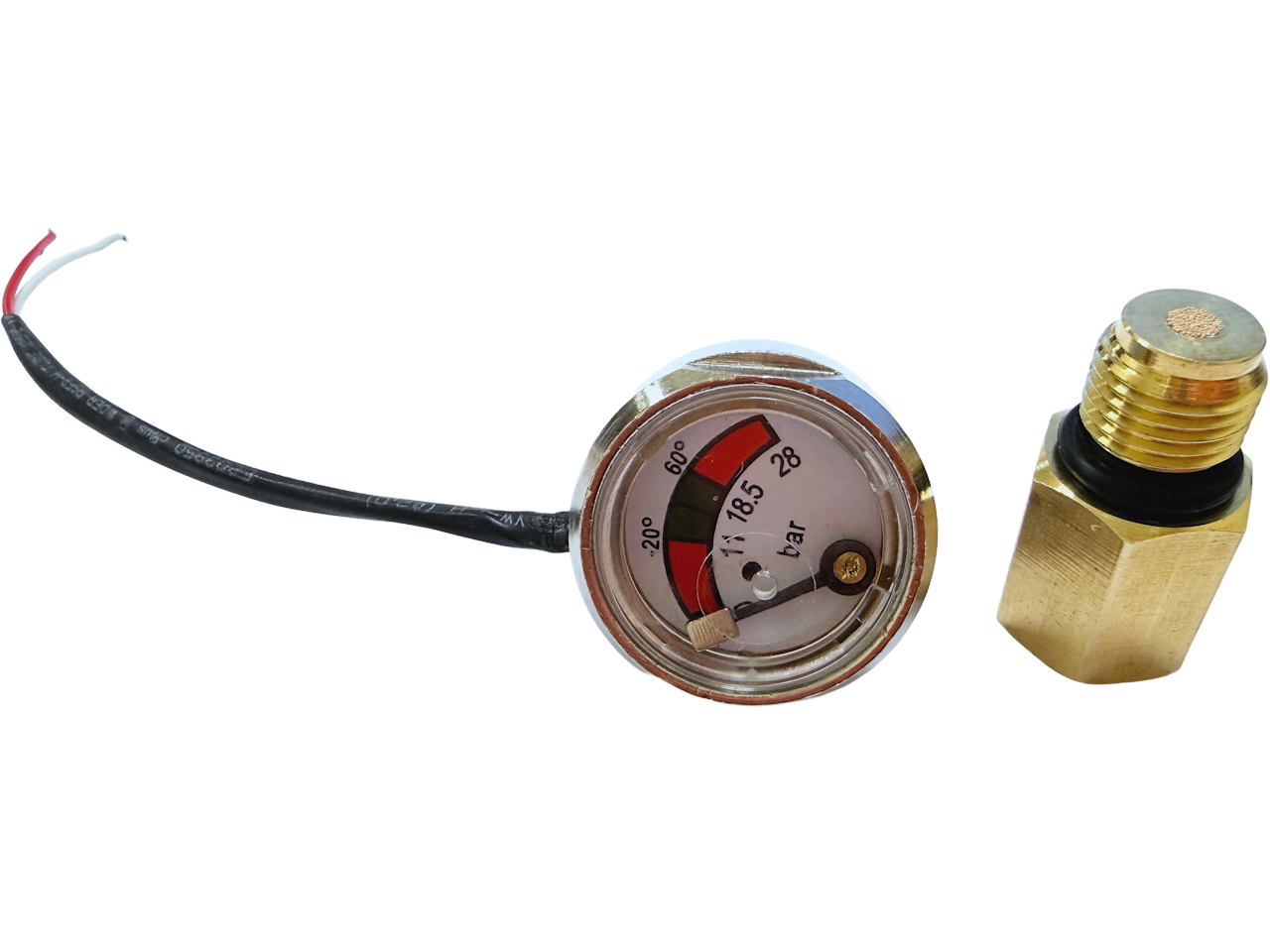

SG-36F (2 Contacts)

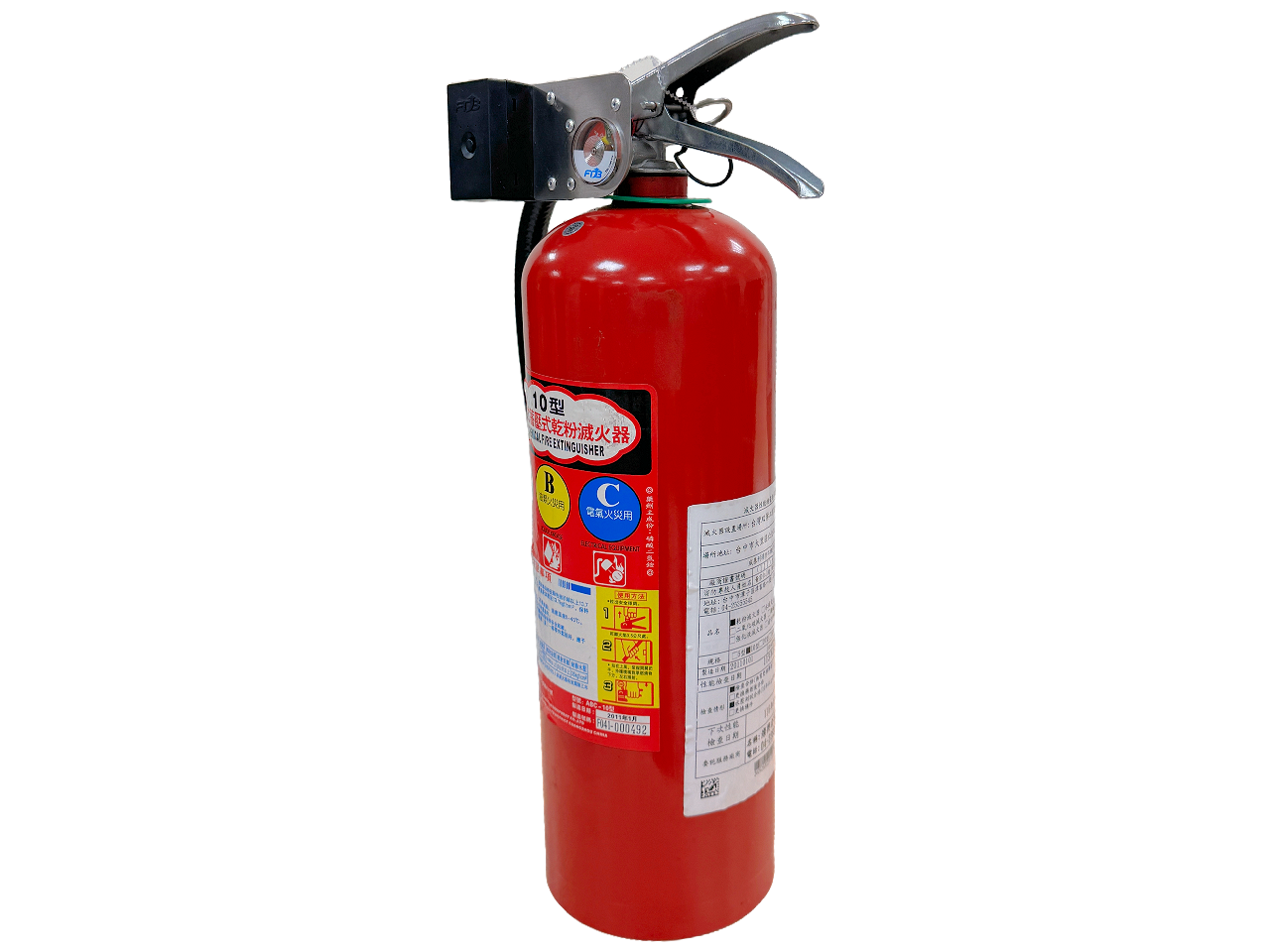

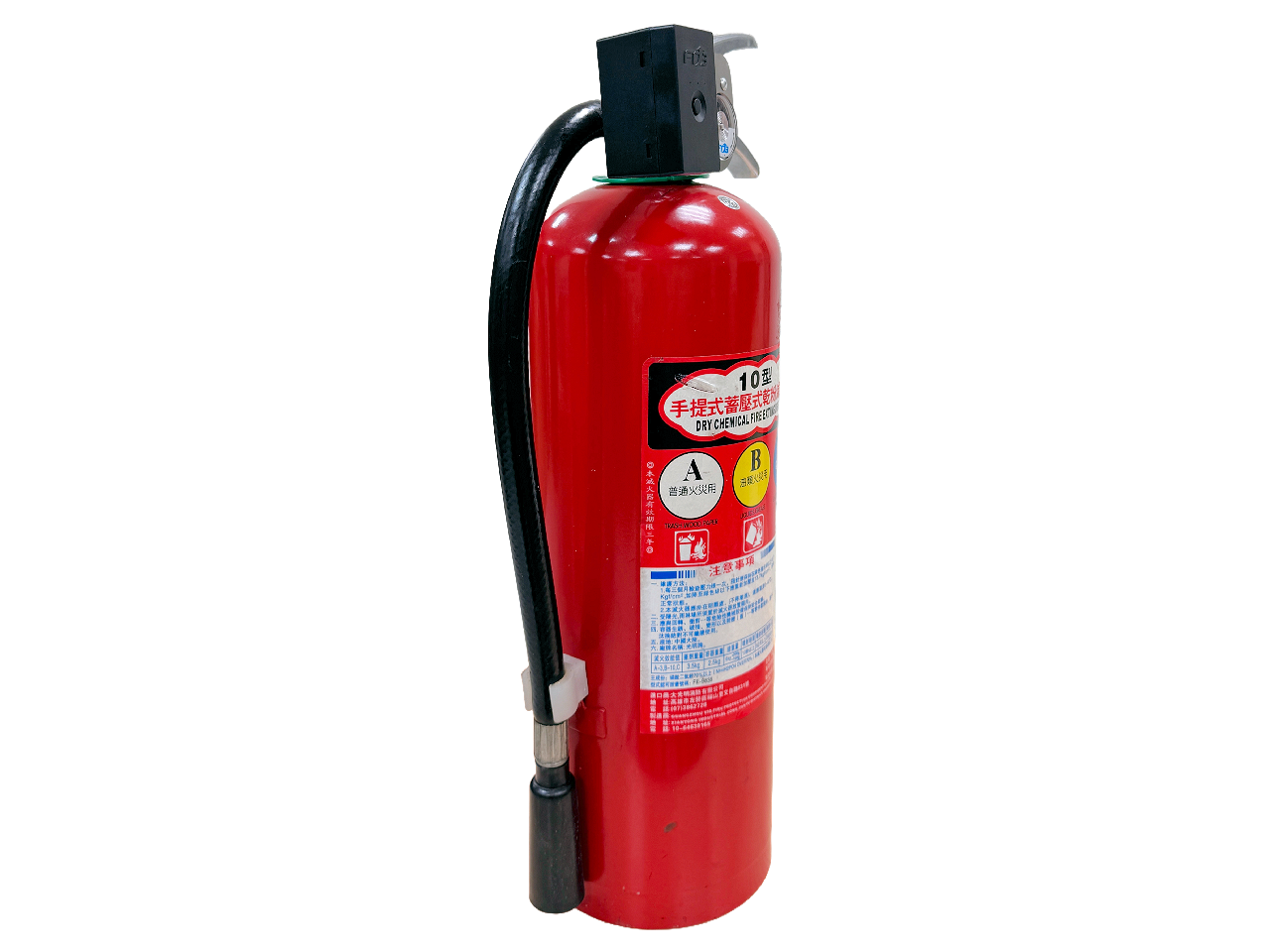

SIG-36 on Extinguisher

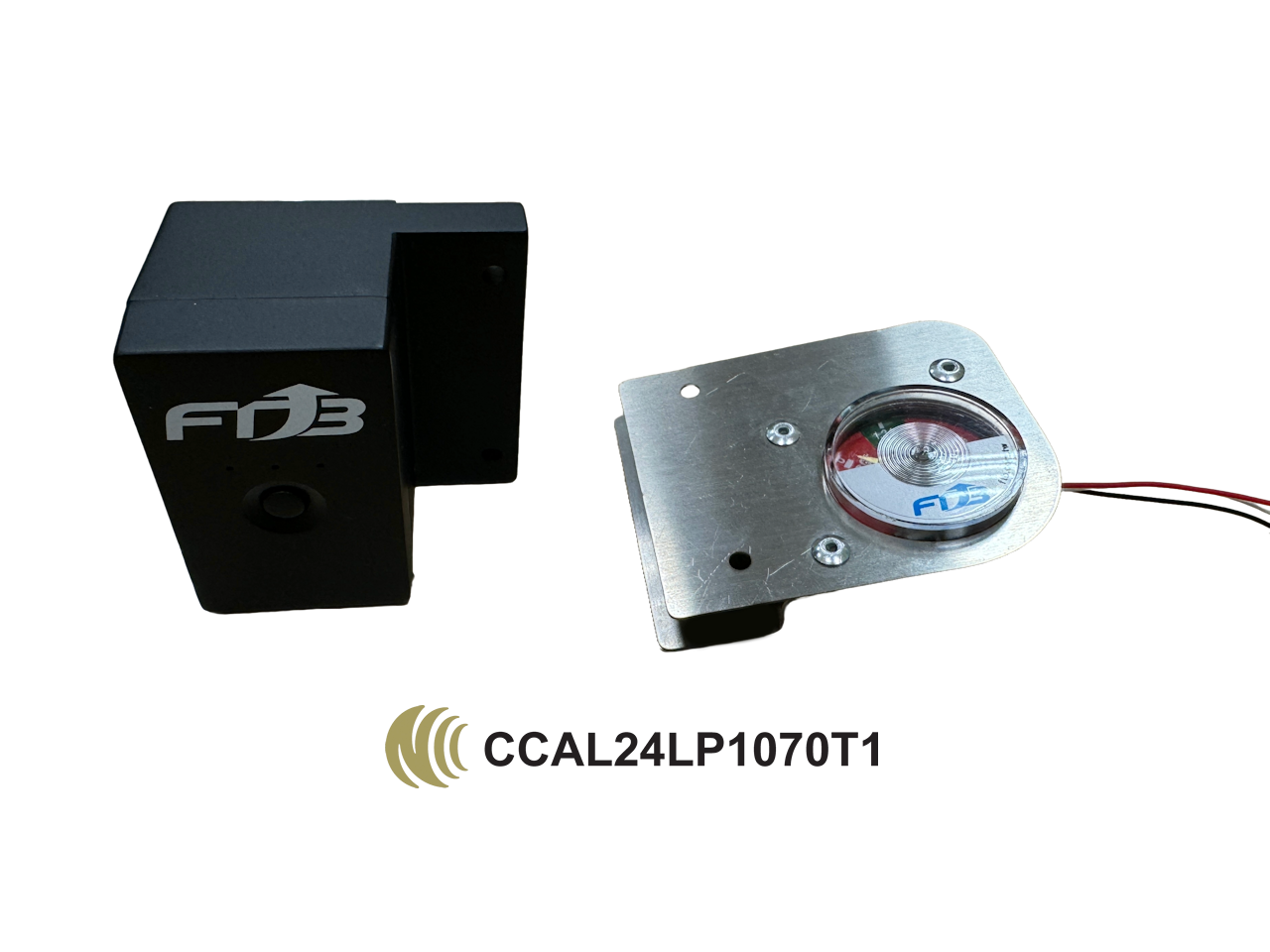

SIG-36-Detachable

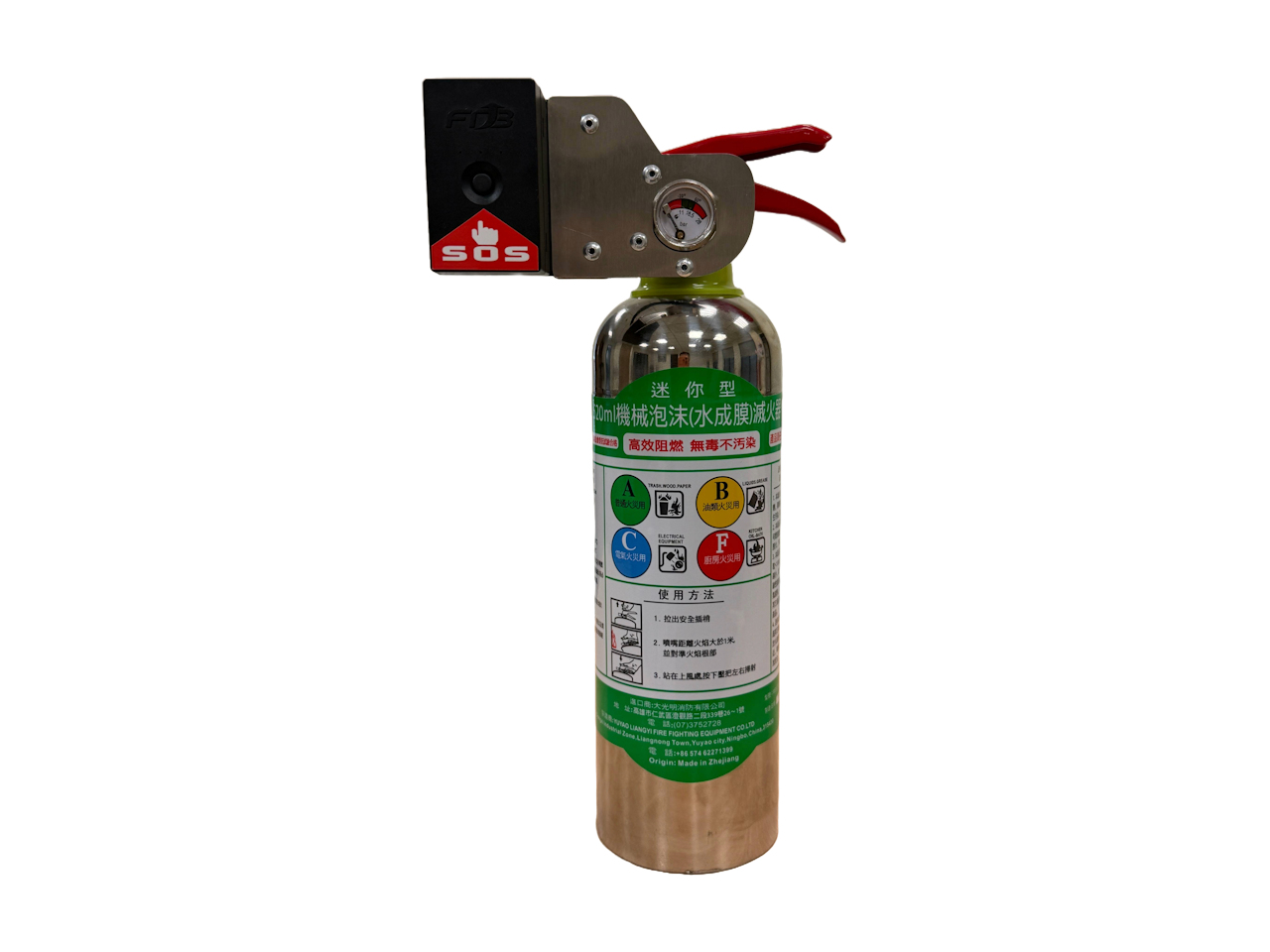

SIG-36 on Extinguish

SIG-36 on Extinguish
