LoRa IoT Medical Oxygen Cylinder Pressure Gauges and Flow Meters

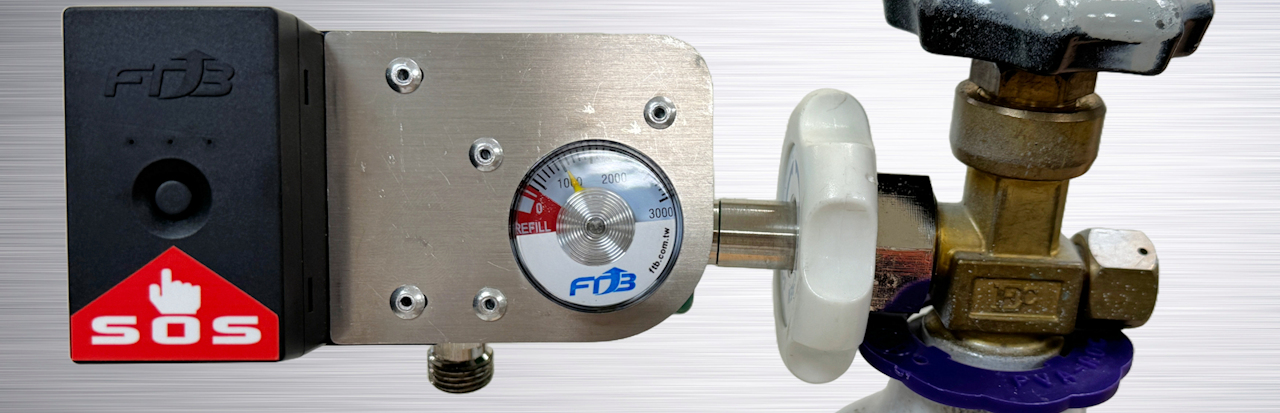

Smart IoT LoRa SIG-36 Medical Oxygen Cylinder Pressure Gauges and Flow Meters
Another IoT application suitable for medical oxygen cylinders to monitor the critial level of oxygen during medical treatments. Reduce the burden of nurses and patients' relatives or caregivers. When the oxygen reaches the minimum operational level, an immediate alarm sends out to the backend, and Apps. After the alarm, the remaining use time, the remaining pressure of 500 psi, the use flow rate of 5 l/min, and the use oxygen concentration are calculated. Valued-added SOS button makes every oxygen cylinder a mobile life-saving device.

FEATURES:
Long range transmission up to 20 km in wide open areas
Real-time accessibility 24/7
Notify when oxygen pressure is below safety level
Notify when preset temperature is reached - the generation of a potential fire source in progress
Device expansions available
Built-in mobile "EMERGENCY" button makes every oxygen cylinder a life saver
Mobile accessibility when you are on the GO. (iOS/Android Apps, and PC Portal)
LoRa Gateways can monitor thousands of IoT Oxygen Cylinder Gauges at the same time.

SPECS:
Models: SIG-36 (36 mm)
Pressure Ranges: 0-3000 psi or assigned by customers.
Dial Sizes: 36 mm
Bourdon Tube: Standard brass with optional SS316
Movement: Standard brass
Connection: Standard brass, 1/8" PT or NPT, M10x1.2 to choose from
Pointer: Steel
Case: Stainless Steel, Center Back Mount
Engineering Units: psi, kg/cm2, MPa
Voltage: Battery DC 3V
Transmission: Periodic
Connectivity: LoRa
ISM Band: By region
NCC-ID: CCAL24LP1070T1

LoRaWAN Gateway/ Web Portal/ iOS/ Android:
Supplied Free of Charge for Web Portal, iOS & Android downloads. LoRaWAN gateway will be quoted along with SIG-36 together. Software supported languages are English, Traditional Chinese, Simplified Chinese, Japanese, and Korean.
iOS: Download Here
Android: Download Here
FeXGuarD User's Manual: Download Here
FeXGuarD Backend Administrator's Manual: Download Here
SIG-36 Installation Guide: Download Here
SIG-36 Manual: Download Here
