Pressure Transmitter Gauges

MTG-63 / 100 Pressure Gauge with Output Signals
The MTG-63 is manufactured under FTB-Developed and Patent-Pending Technology for the core contact system of the gauge using the "non-contact" sensoring system as the major device to keep the switchings more smooth, wear-free, accurate, quick, and thus make the life-span longer.

The MTG-63 / 100 offers an analog gauge dial to display the process pressure locally. Additionally, no worries to be afraid of power outage caused unexpectedly to make your applications stopped working without a pressure reading, our MTG-63 / 100 can surely solve your problems just as easy as 1-2-3. Simply monitor the pressure reading from the gauge just like a standard pressure gauge. MTG Series with non-contact sensor works best for the applications where high pressure switches are necessary. Because of the benefits of a combination of a high quality pressure gauge with FTB Patent-Pending "non-contact" Technology, the MTG Series performs free from wear and friction. This is because of the integration of a non-contact sensor built inside the quality FTB pressure gauge to minimize the tolerances for both devices.

Pressure ranges available are up to 1000 bar for most applications on recent market.

FEATURES:
Quick response time (3 microsecond)
Patented "non contact" technology for long life-spam
SS 316 Bourdon Tube and Movement from Germany to ensure quality assurance
Suitable for water, oil, air, and any other corrosive or non-corrosive fluids
2-in-1 design to minimize the tolerance between the reading of gauge and outputs
RS-485 Modbus RTU offers quick transmitting speed with serial com in computer interface
Additional NPN/PNP Open Collectors with 5 modes to choose from
Reserved tranditioinal 4-20 mA analog output offers an upgrade option for old applications

SPECS:
Models: MTG-63 (2.5") & MTG-100 (4")
Pressure Ranges: Vacuum, Compound, 0-1000 bar in between
Dial Sizes: 2.5" and 4"
Bourdon Tube: Standard brass with optional SS316 from Germany
Movement: Standard SS430 from Germany
Connection: Standard brass, 1/8", 1/4", 3/8" and 1/2" to choose from
Pointer: Plastic
Accuracy: 1.5% F.S.
Engineering Units: psi, bar, kg/cm2, kPa, MPa
Analog Output: 4-20 mA (3-wire)
Digital Output: RS-485 Modbus RTU Serial Communication
NPN/PNP Open Collectors: Five modes to choose from
Case: SS304, Lower Mount, Lower Back Mount, Lower Back Mount w/ Front Flange

• Catalogs Download

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.

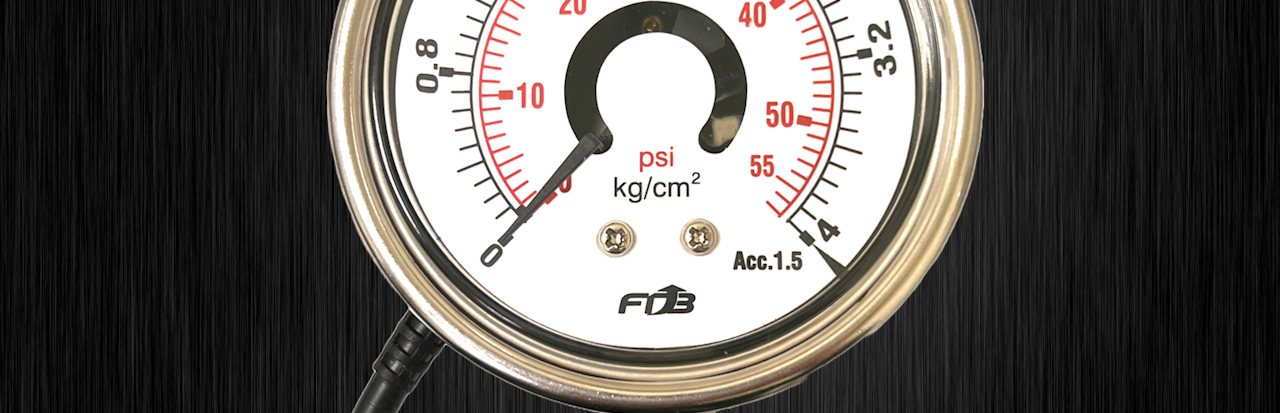

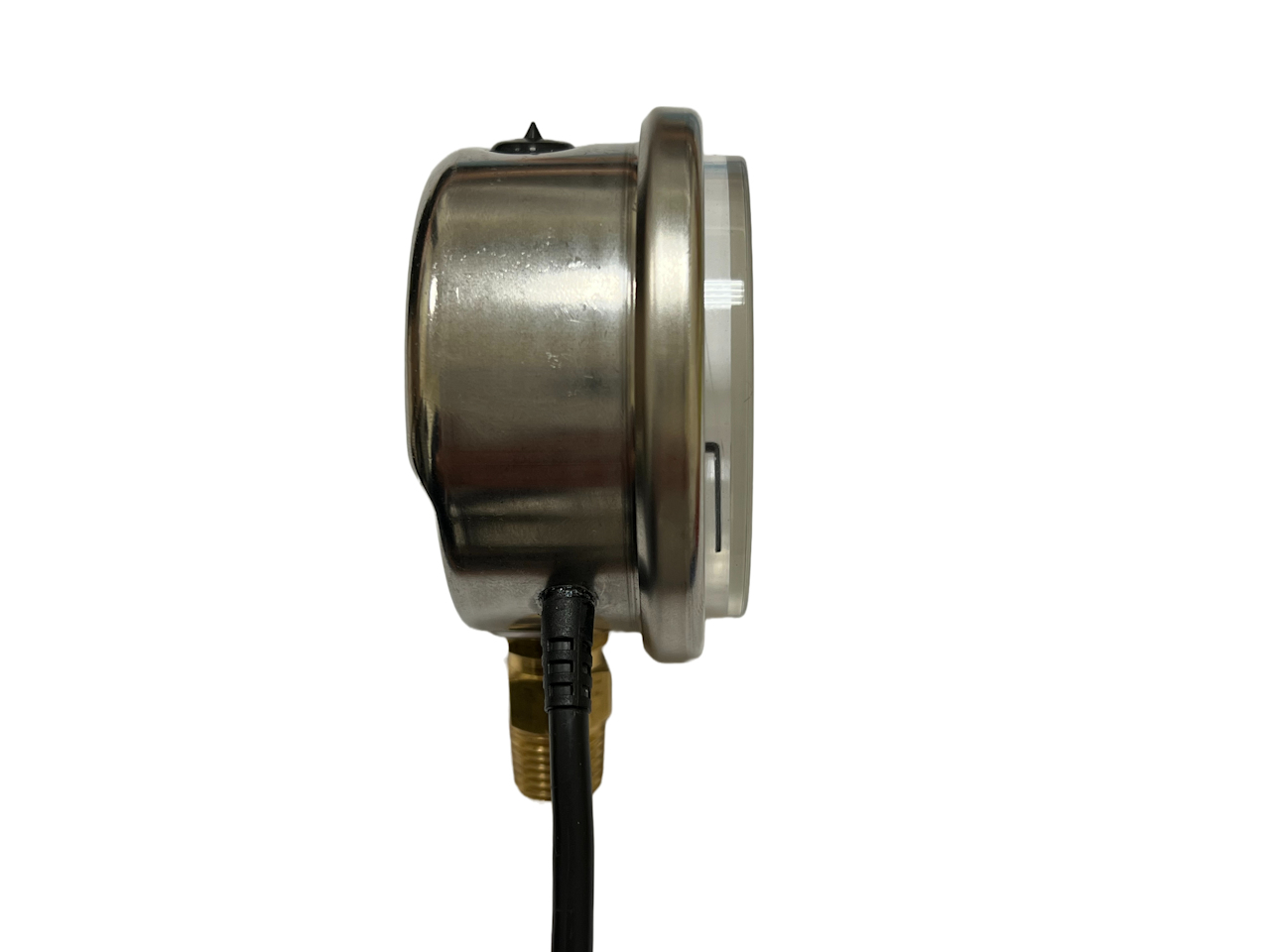

MTG-63-LM

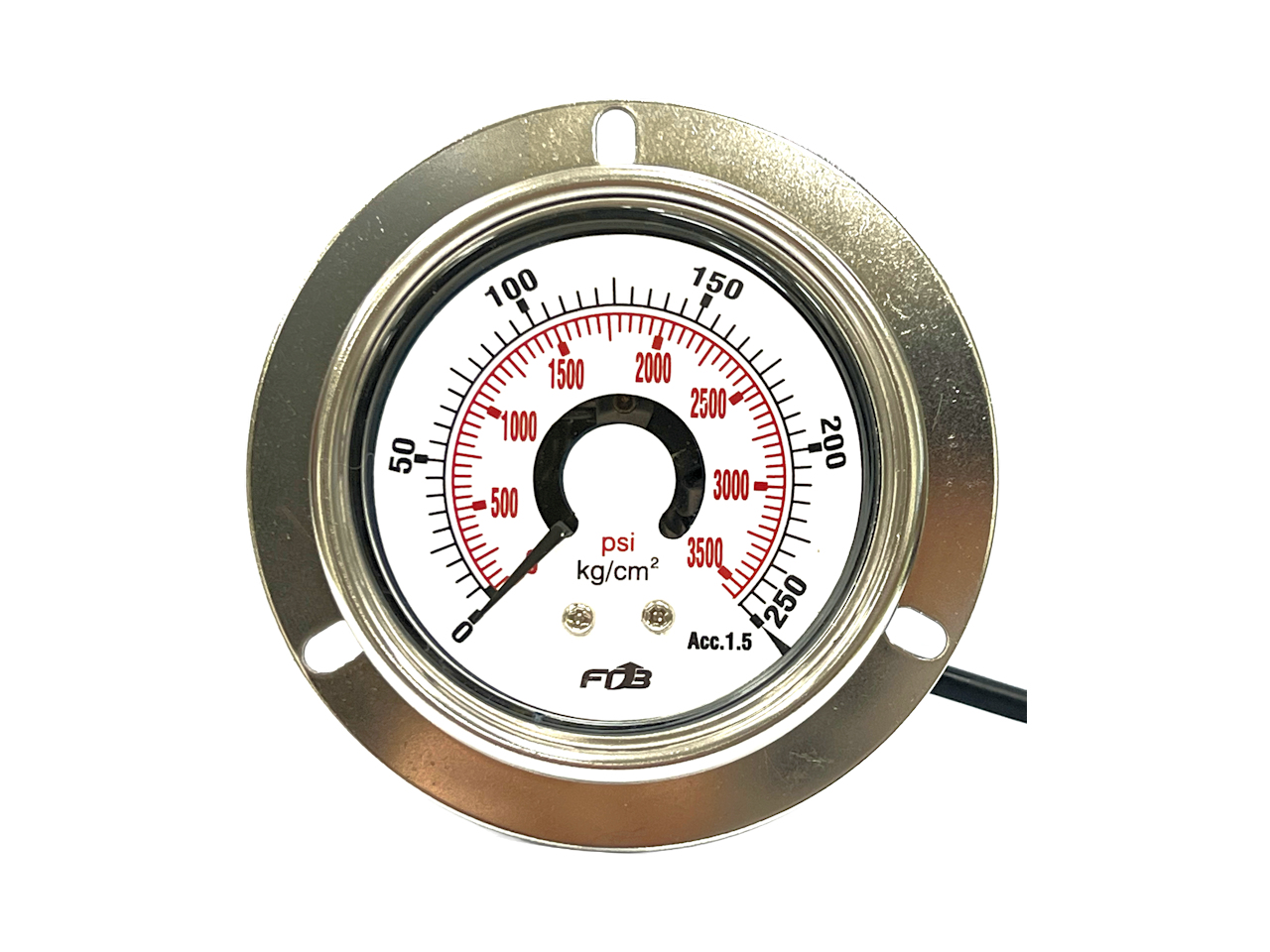

MTG-63-LBMF

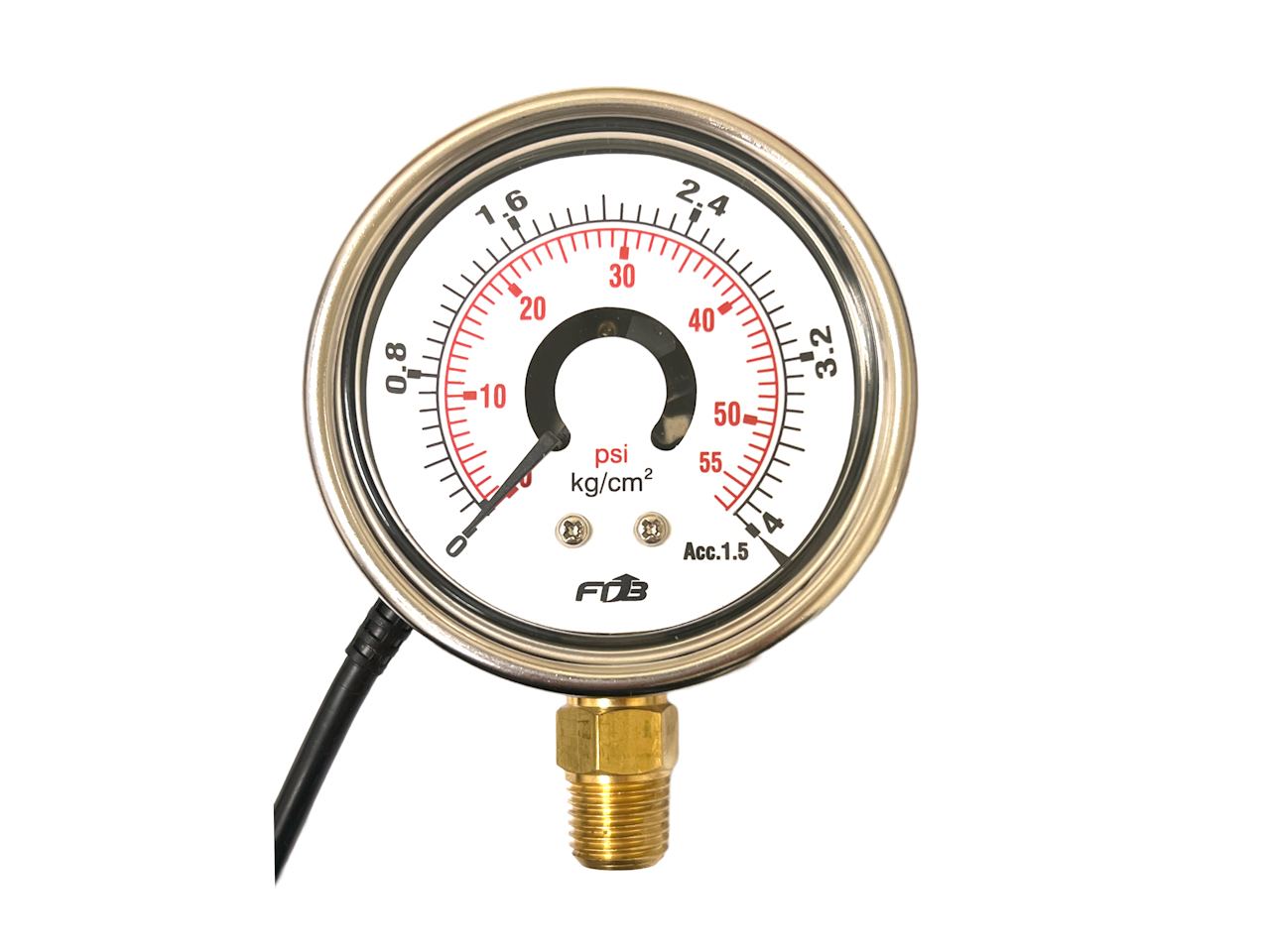

MTG-63-LM

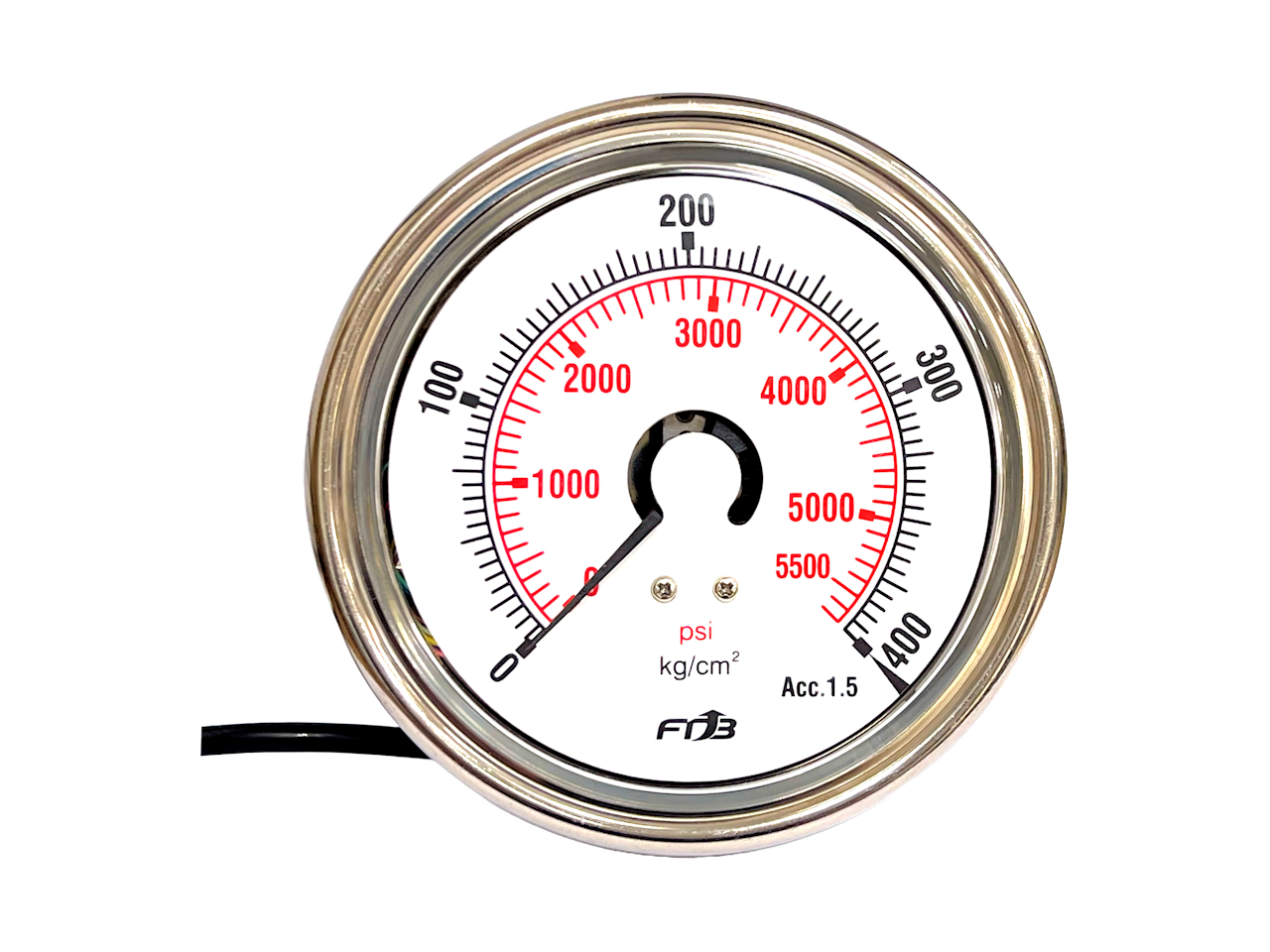

MTG-100-LBM

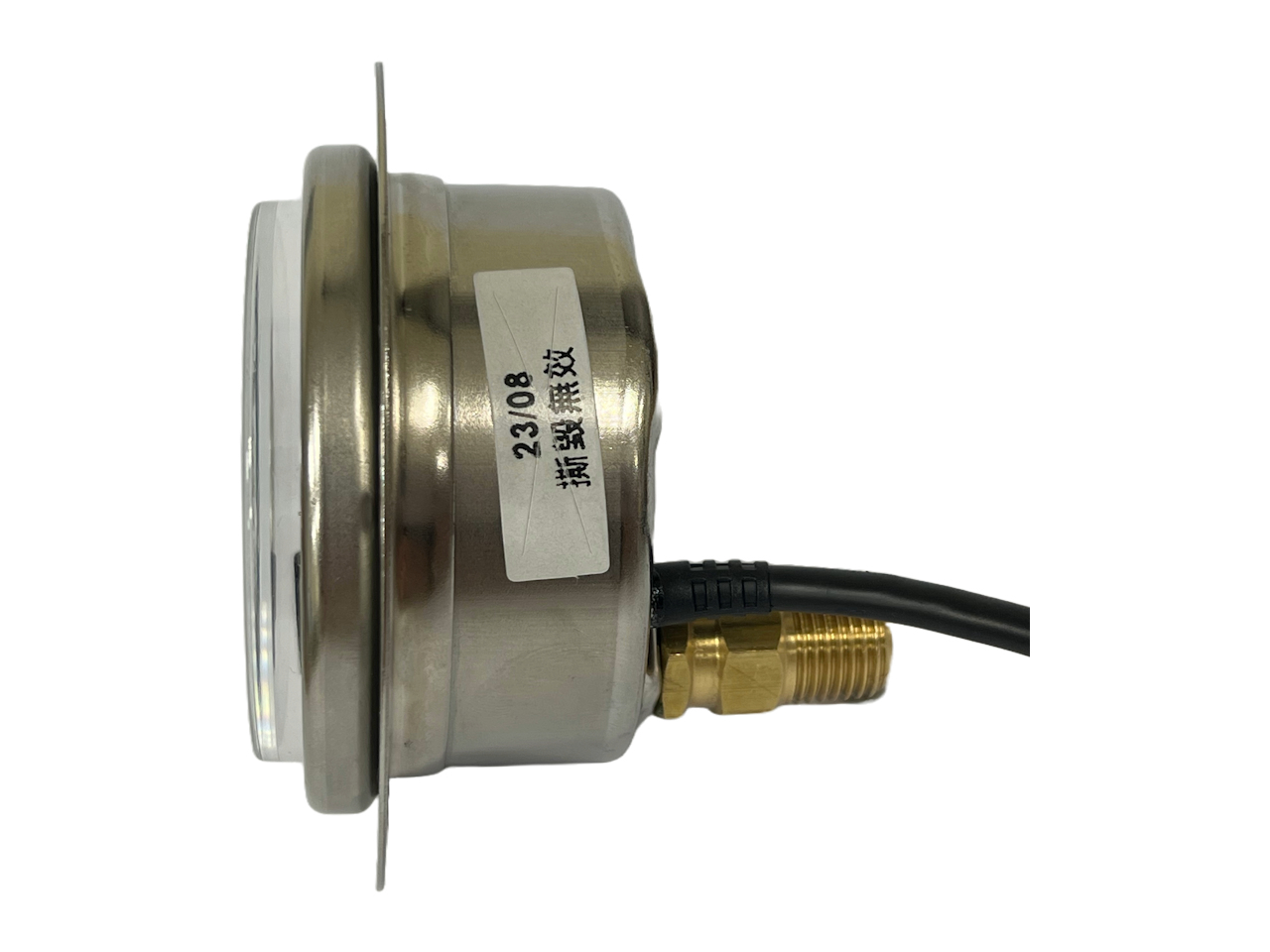

MTG-63-LBMF

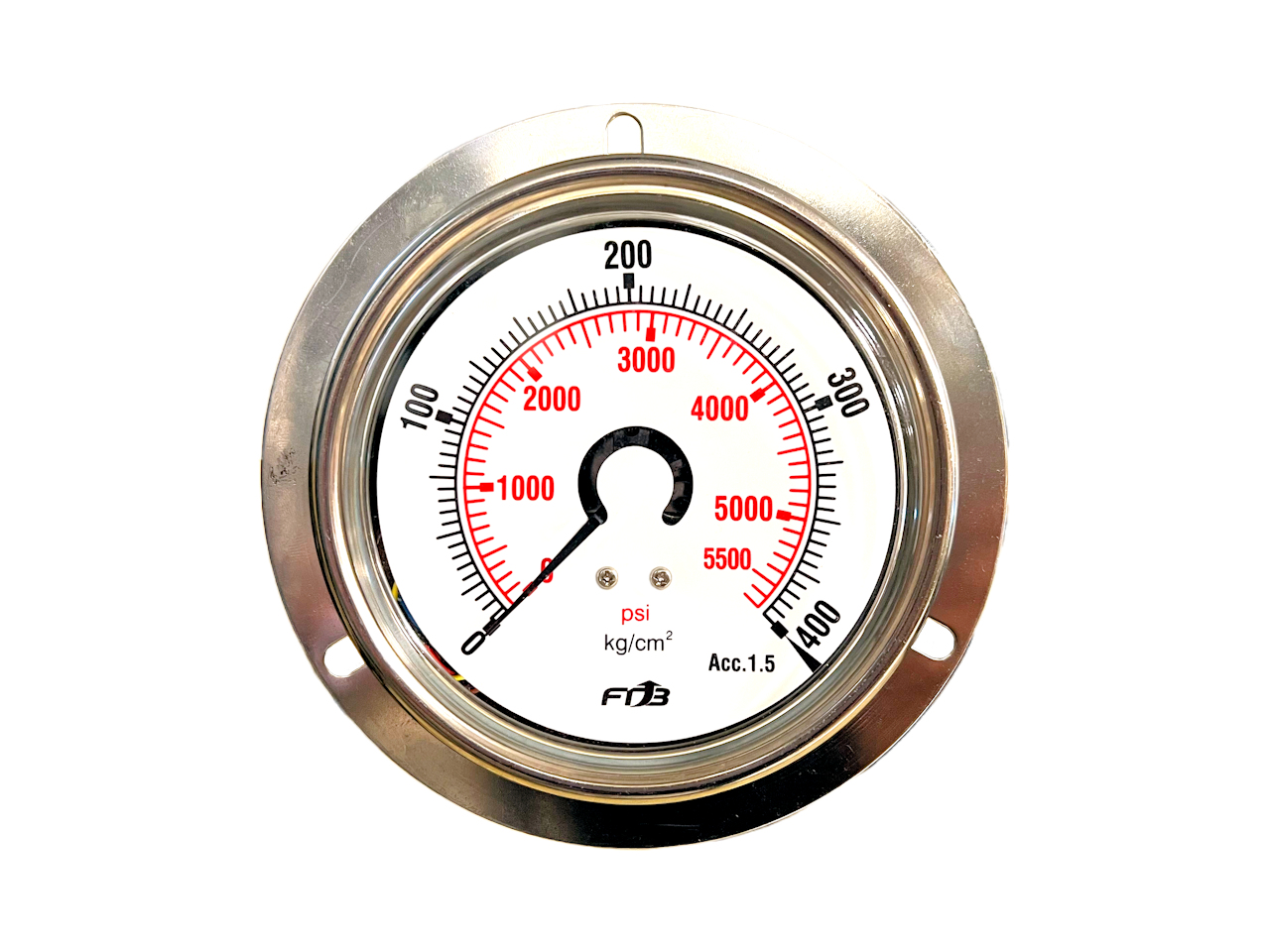

MTG-100-LBMF
