Liquid-Filled Pressure Gauges

Sizes ranging from 1 1/2" to 6" with bottom and back mounts available. For detailed product models and specs, please refer to Online Catalogues or Product Gallery for more info. Please refer to the product images below for a brief image of some of our products manufactured.

General Specs:
Dial Size: 1 1/2" to 6"
Bourdon/Coiled Tube: Brass Material.
0-700/0-1000 bar used with Germany-Imported SS316 Material.
Movement: Germany-Imported SS430 Material.
Internals & Socket: Brass.
Accuracy: ±2% on 1 1/2" and 2", ±1.5% on 2 1/2", 4", ±1% on 6".
Liquid-Filled: Imported 99.95% Purity Glycerin, or Optional Silicone.
Mounting: Lower Mount (Bottom), Back Mount, Back Mount with Flange, Back Mount with U-Bracket.
Pressure Ranges: Vacuum, Compound, 0-1000 bar.
Bezel Type: Standard Crimped Bezel, or Optional Bayonet Ring.
Dial Scales: Standard Dual Scale with kg/cm²/psi, psi/bar, and etc.


Photo Gallery

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.

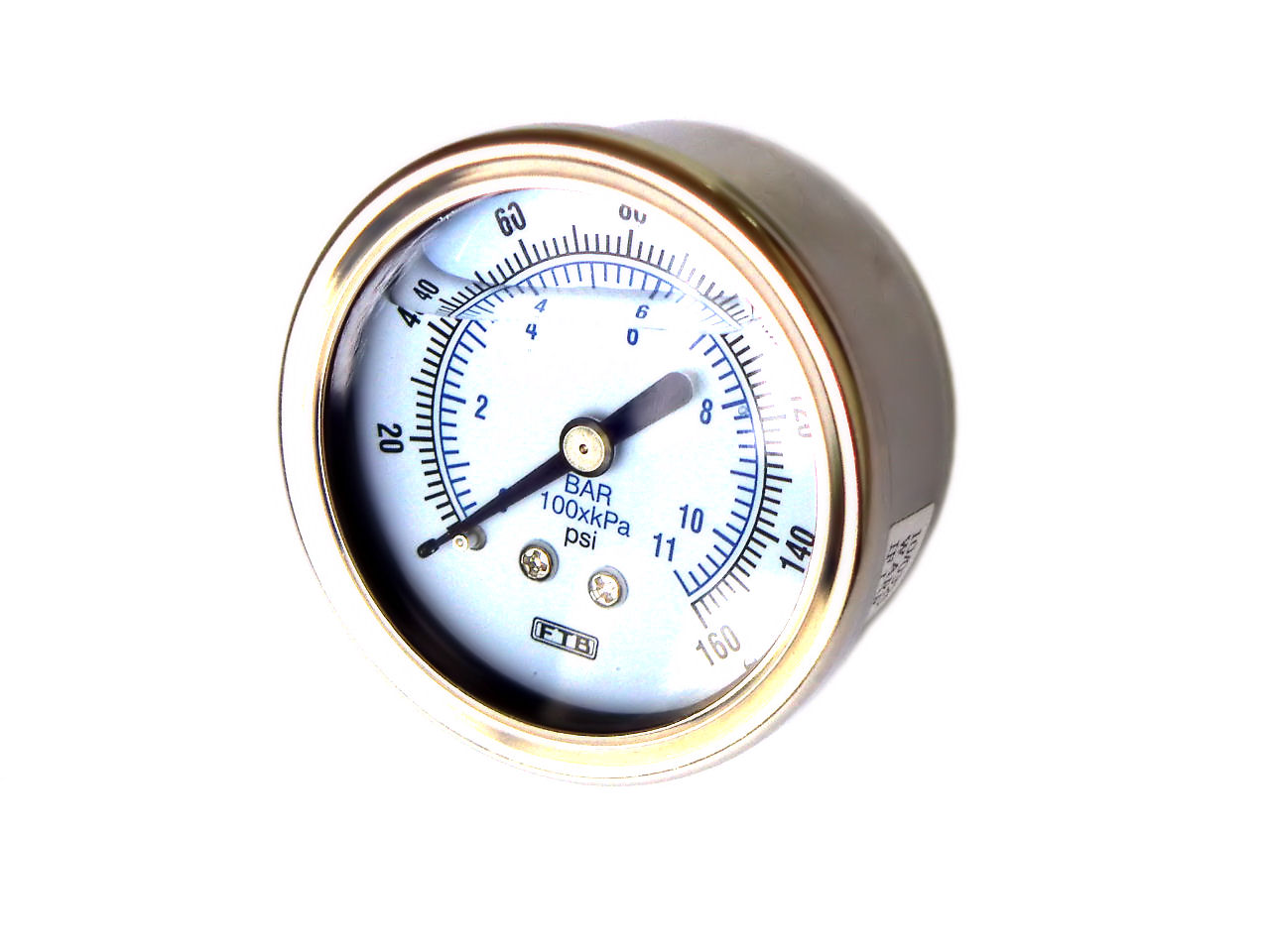

322.51.22

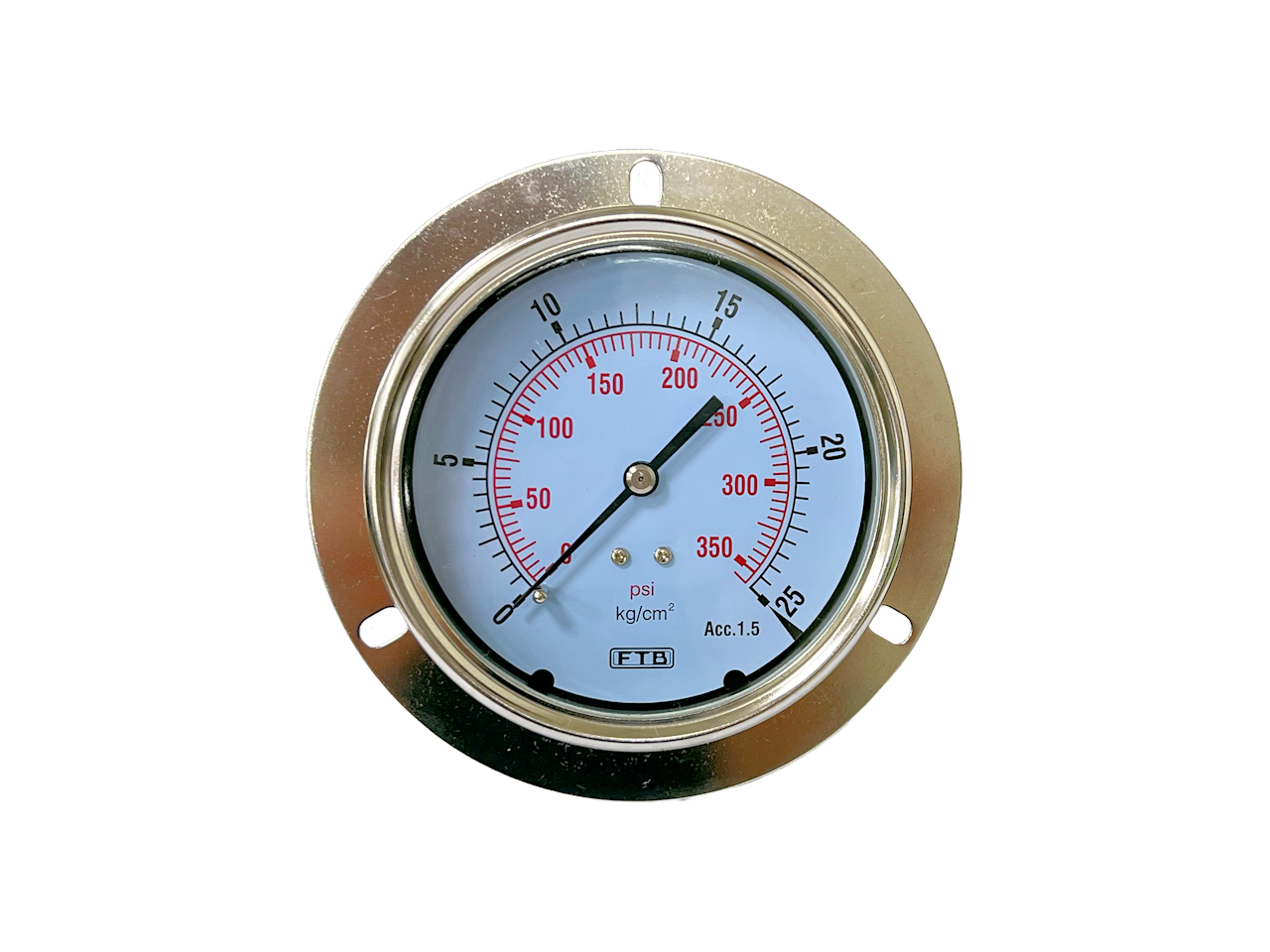

325.61.23

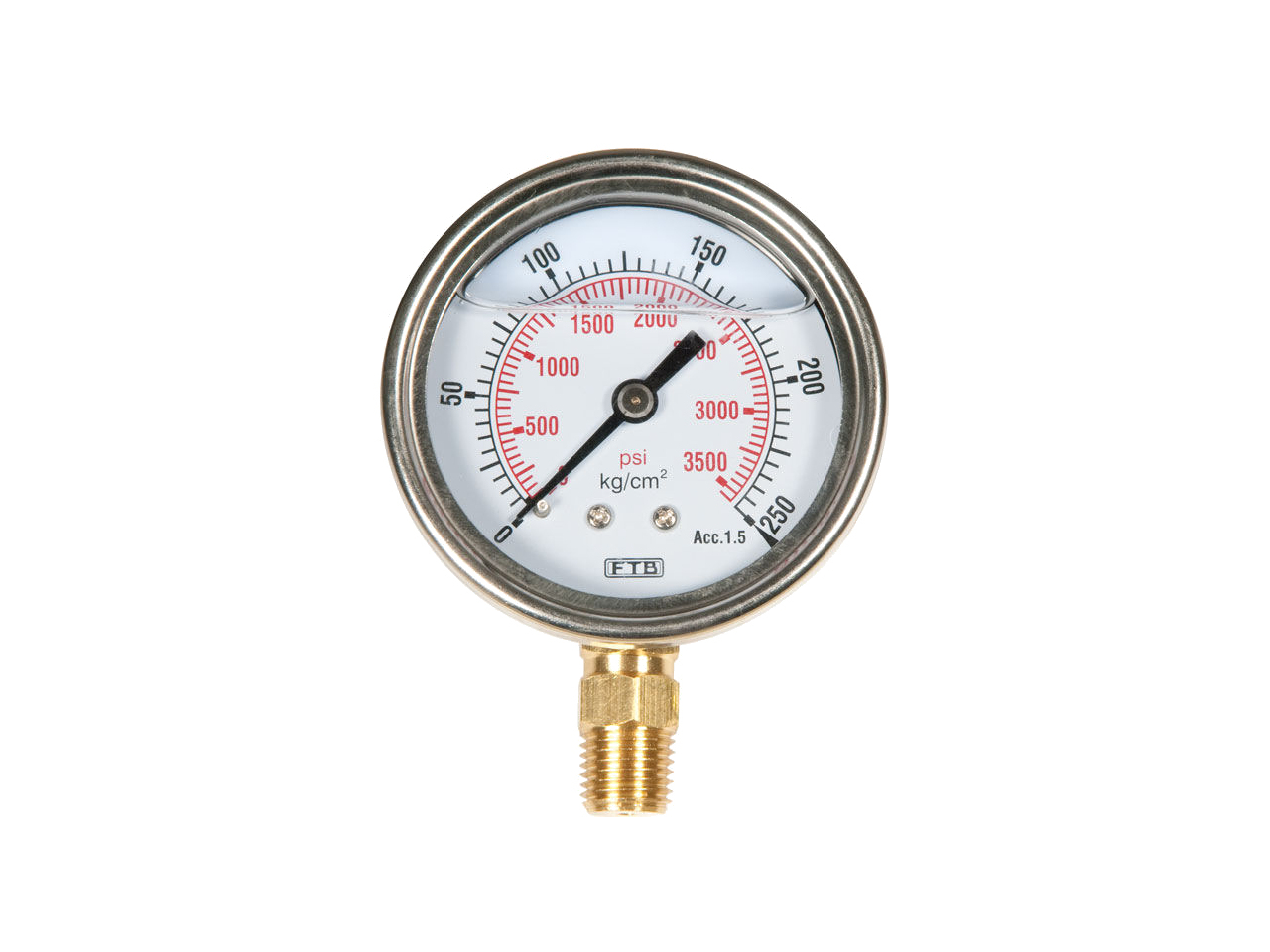

323.11.22

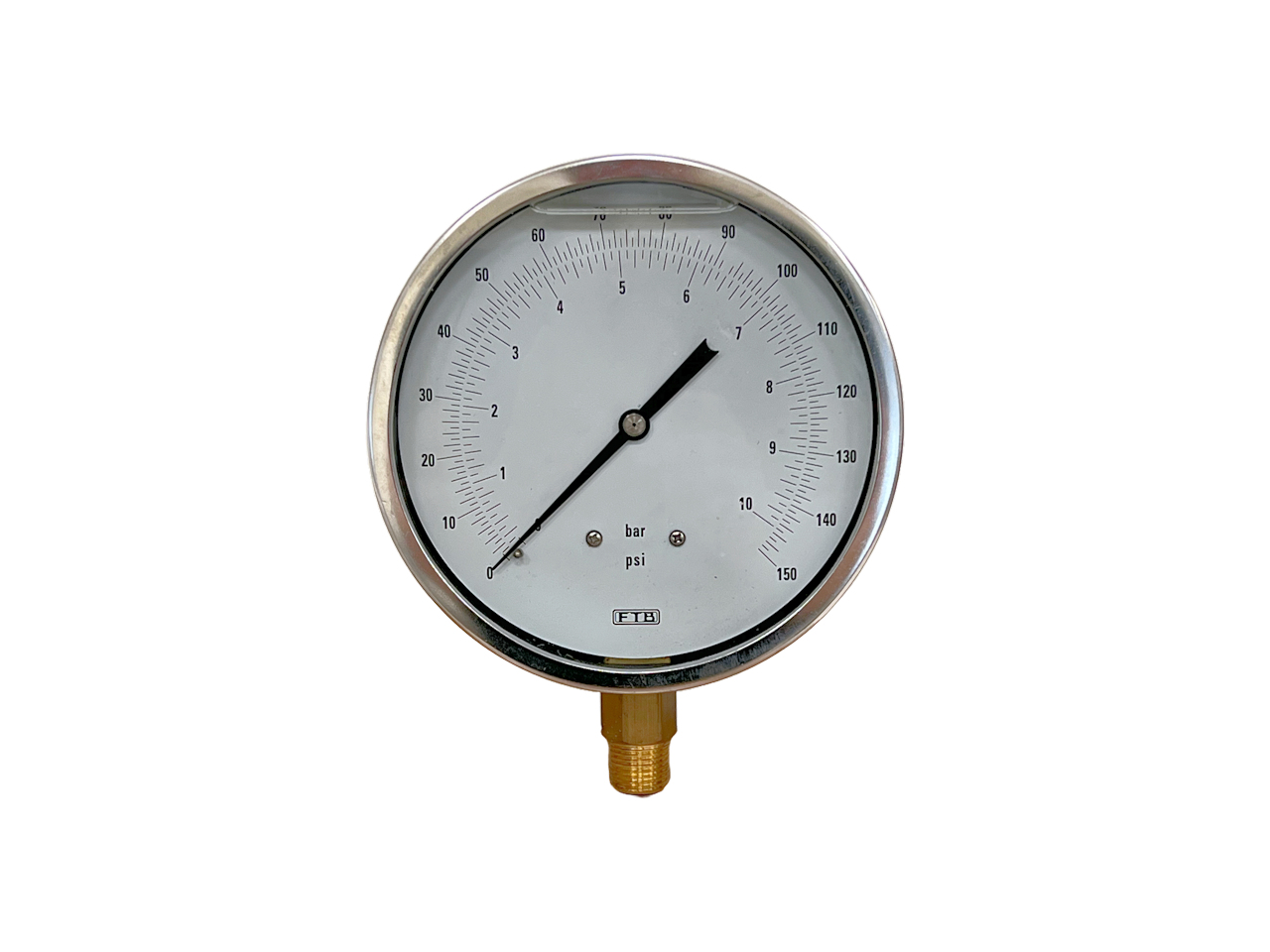

226.11.24

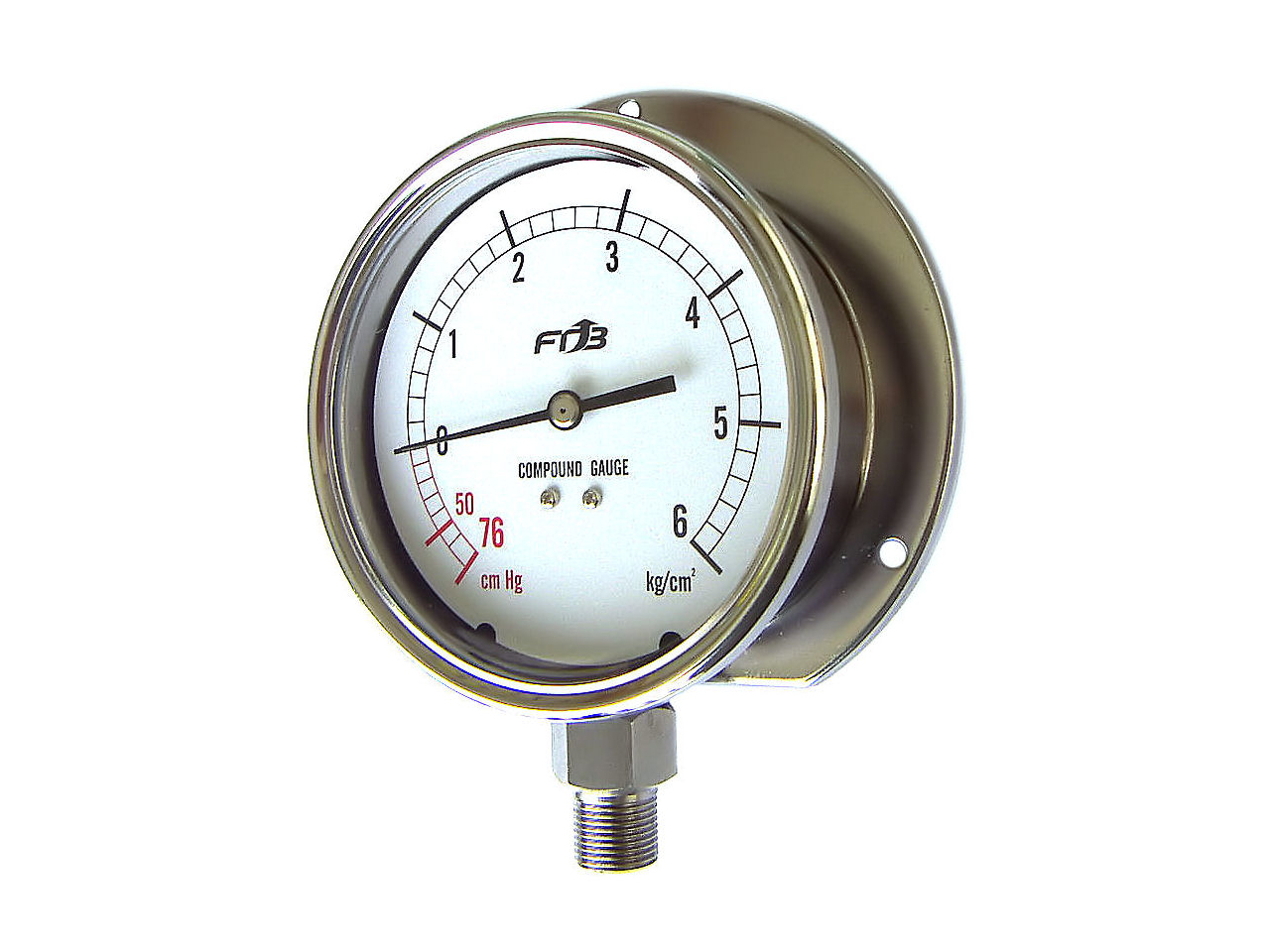

325.23.23

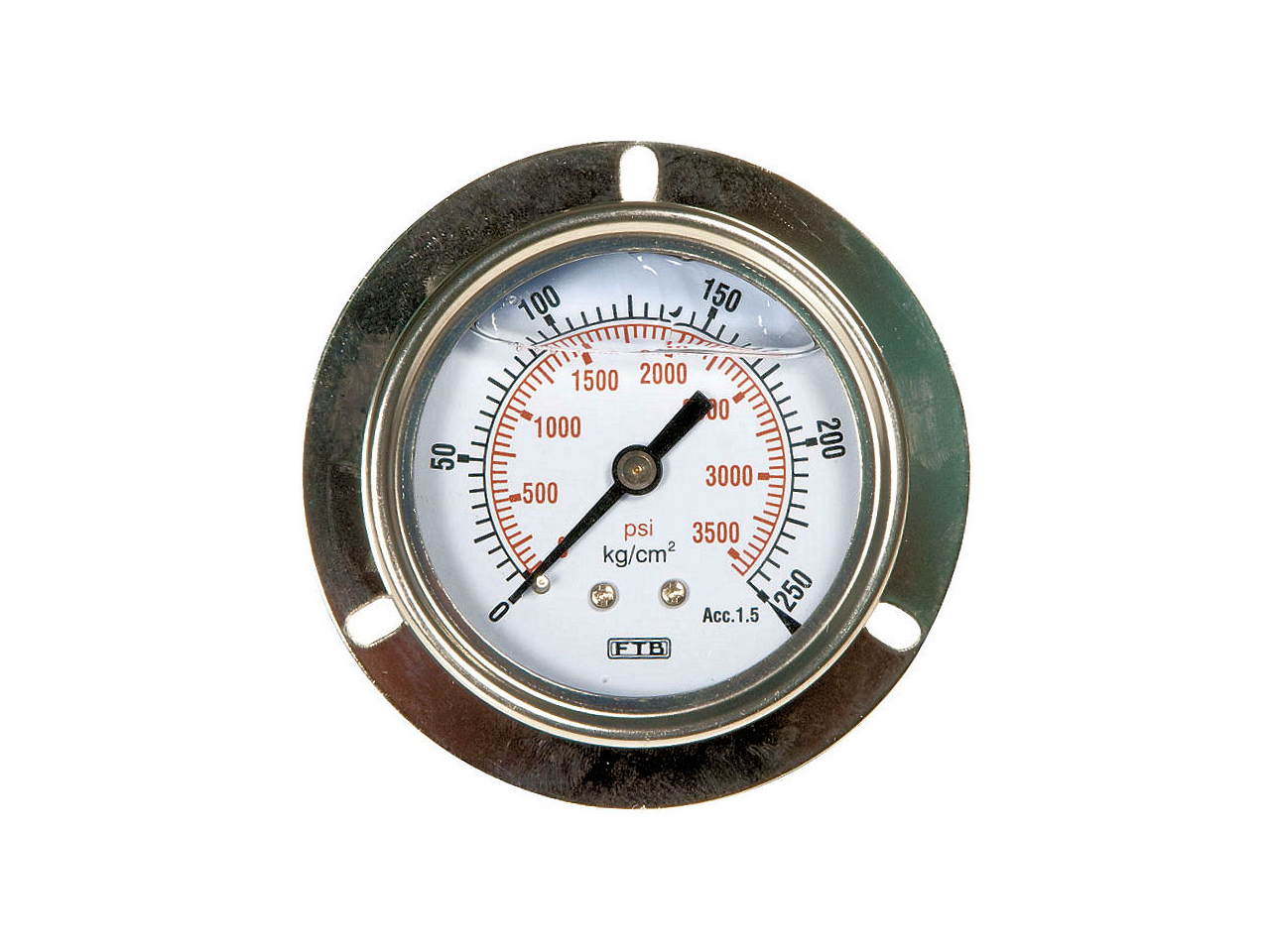

323.71.22
