Double-Sided Pressure Gauges

FTB Patented Double-Sided Pressure Gauges are available currently on 2 1/2" Lower Mount Type only. FTB Patented Double-Sided Pressure Gauges are especially suitable for the applications with long distance monitoring. FTB Double-Sided Pressure Gauges work best for PCB manufacturing equipment, medical devices where front and back monitoring situations are necessary. Check out the features, specs., and other model numbers below for details.

General Specs:
Dial Size: 2 1/2"
Case: SS304
Mounting: Lower Mount (LM), crimped bezel.
Bourdon/Coiled Tube: Brass Material.
Movement: Germany-Imported SS430 Material.
Internals & Socket: Brass Material.
Accuracy: ±1.5% F.S.
Connection: SS316 or Brass.
Liquid-Filled: Imported 99.95% Purity Glycerin, or Optional Silicone.
Mounting: Lower Mount (Bottom), Back Mount, Back Mount with Flange, Back Mount with U-Bracket.
Pressure Ranges: Vacuum, Compound, 0-1000 bar.
Bezel Type: Standard Crimped Bezel, or Optional Bayonet Ring.
Dial Scales: Standard Dual Scale with kg/cm²/psi, psi/bar, and etc.

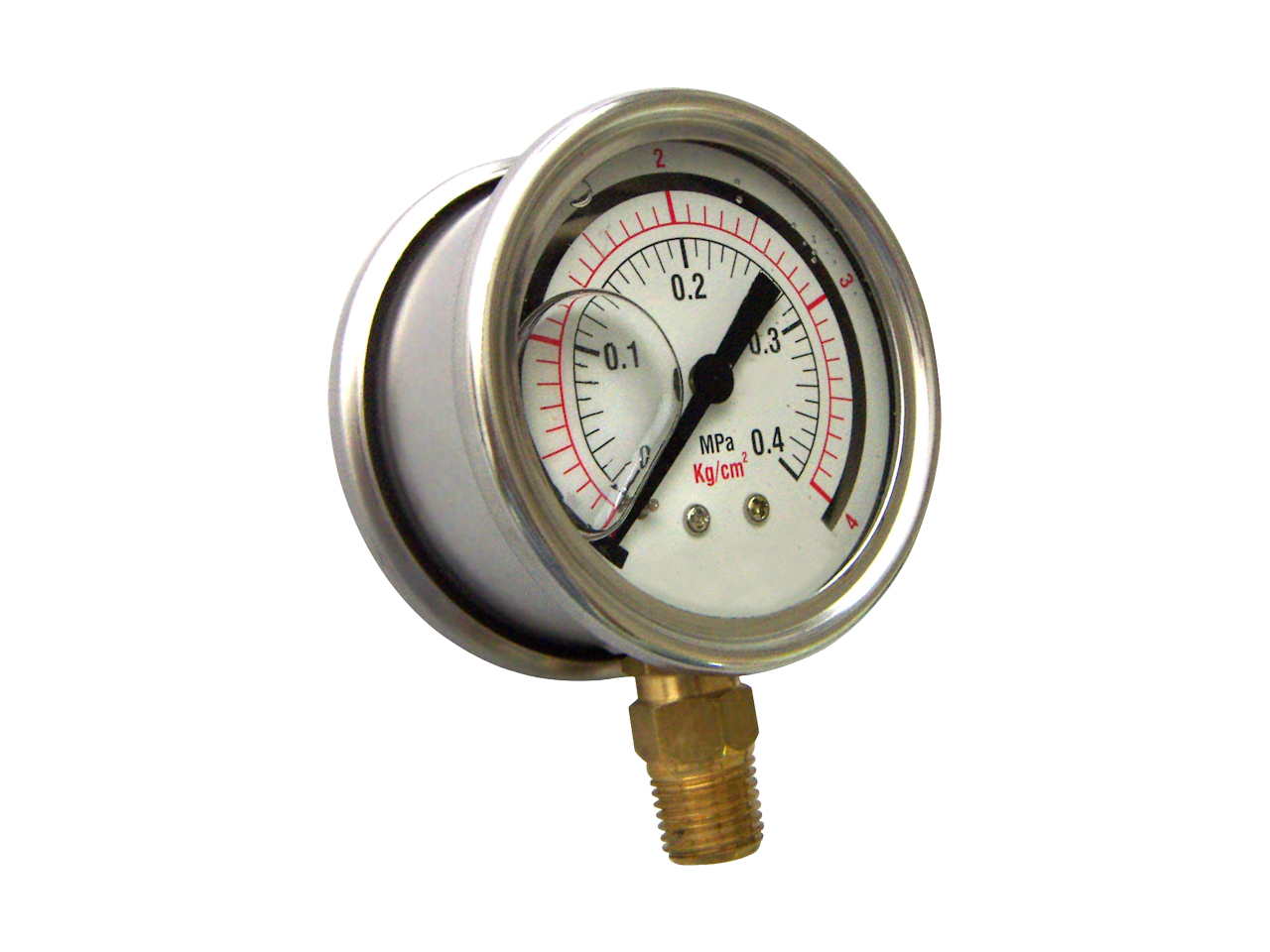

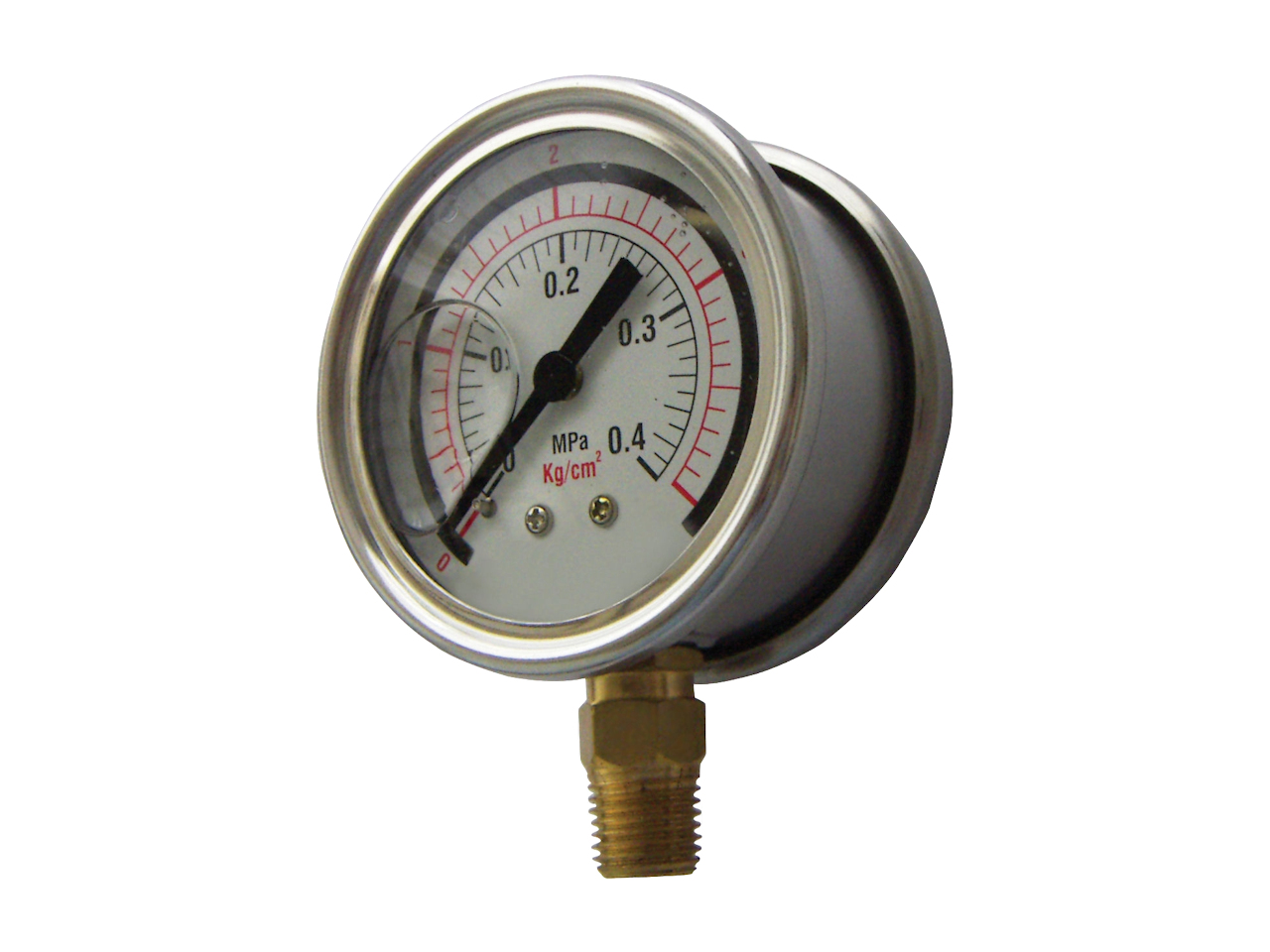

Photo Gallery

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.
