Digital Pressure Gauges

The DPG-75 Digital Pressure Gauges with 0.66% to 1% full scale accuracy uses FTB-developed and patented technology as your cutting edge, cost-effective provider for digital solutions. The FTB-developed technology delivers stable and long-lasting performance. 5 1/2 digits blue backlit LCD makes DPG-75 the largest in window size Digital Pressure Gauge found available on market. The DPG-75 was built for the applications which the cost for digital solutions is highly concerned.

The DPG-75 is rugged and features High Pressure Capture with pressure ranges ranging from vacuum (bar, "Hg, cmHg, mmHg) to 15,000 PSIG (displayed also in bar, kg/cm2, MPa, and kPa). An alternating current AC power adapter of 100-240 Volts with 50-60 Hz is included for easy installation; also, a direct current DC power of 5-24 Volts is available as an option for direct current DC power input as well. Typical applications include test and measurement in the process industries, hydraulic and pneumatic systems, industrial gases, industrial machinery and machine tools, injection molding machines, stamping and forming presses, and pumps and compressors.

The second generation DPG-75 II and DPG-100 offer a better solution for all applications in one unit. RS-485 serial communications, PNP or NPN open collectors, 0-5/10 VDC or 4-20 mA analog outputs are available to choose from. RS-485, also known as TIA-485(-A), EIA-485, is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems. PNP or NPN open collectors are suitable for replacing traditional mechanical switch contacts. Analog outputs of 0-5/10 VDC and 4-20 mA are transmitter solutions to replace traditional pressure transmitters. The All-in-One design offers another ideal solution for system integration.

DPG-75 Features & Specs:
Diameter: 3 inches (78 mm)
Operating Temperature: 14 - 392 F/-10 - 200 C
Storage Temperature: 14 - 122 F/-10 - 50 C
Ambient Temperature: 14 - 167 F/-10 - 75 C
Accuracy: +/- 0.66% to 1% Full Scale
Pressure Ranges: Negative (Vacuum) and Positive through 0-15000 psi
Over Pressure: 150% F.S.
Burst Pressure: 250% F.S.
Engineering Units: Negative/Vacuum (bar, "Hg, cmHg, mmHg), Positive (bar, psi, kg/cm2, MPa, kPa)
LCD Display: 5 1/2 Digits LCD, Blue Backlit with 0.5" height
Connection: Standard 1/4" PT Brass, SS316 Optional
Case Material: ABS Plastic
Field Calibration: Zero Adjustment
High Pressure Capture: Standard
CE Compliant: Standard
Power Requirement:
D24 (5-24 VDC Input 2-wire wiring/1.5 meters), mostly recommended
A120 (100-120 Volts AC adapter, included, + D24)
A240 (220-240 Volts AC adapter, included, + D24)

DPG-75 II & DPG-100 Fetures & Specs
Diameter: 3 inches (78 mm - DPG-75 II), 4 inches (100 mm - DPG-100)
Operating Temperature: 14 - 392 F/-10 - 200 C
Storage Temperature: 14 - 122 F/-10 - 50 C
Ambient Temperature: 14 - 167 F/-10 - 75 C
Accuracy: +/- 0.66% to 1% Full Scale
Pressure Ranges: Negative (Vacuum), Positive through 0-15000 psi, and Compound (-1-1, -1-2, -1-3, -1-4, -1-5, -1-6, -1-7, -1-8, -1-9, -1-10, -1-15, -1-20, -1-25, -1-30, -1-35, -1-40, -1-70, -1-100 kg)
Over Pressure: 150% F.S.
Burst Pressure: 250% F.S.
Engineering Units: "Hg, cmHg, mmHg, bar, psi, kg/cm2, MPa, and kPa
LCD Display: 5 1/2 Digits LCD, White Backlit with 0.5" height
Connection: Standard 1/4" PT Brass (DPG-75 II), 1/2" PT Brass (DPG-100), SS316 Optional
Case Material: ABS Plastic (DPG-75 II), Steel with Chrome-Plated (DPG-100)
Field Calibration: Zero Adjustment
High Pressure Capture: Standard
NPN/PNP Open Collectors: Up to 4 Editable (NO, NC, OFF) Contacts, NPN/PNP User-Selectable (DPG-100)
Transmitter Signal: 0-5/10 VDC, 2-10VDC, or 4-20 mA
Serial Communication: RS-485 Asynchronous Mode
CE Compliant: Standard
Power Requirement: 24 VDC

• Catalogs Download

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.

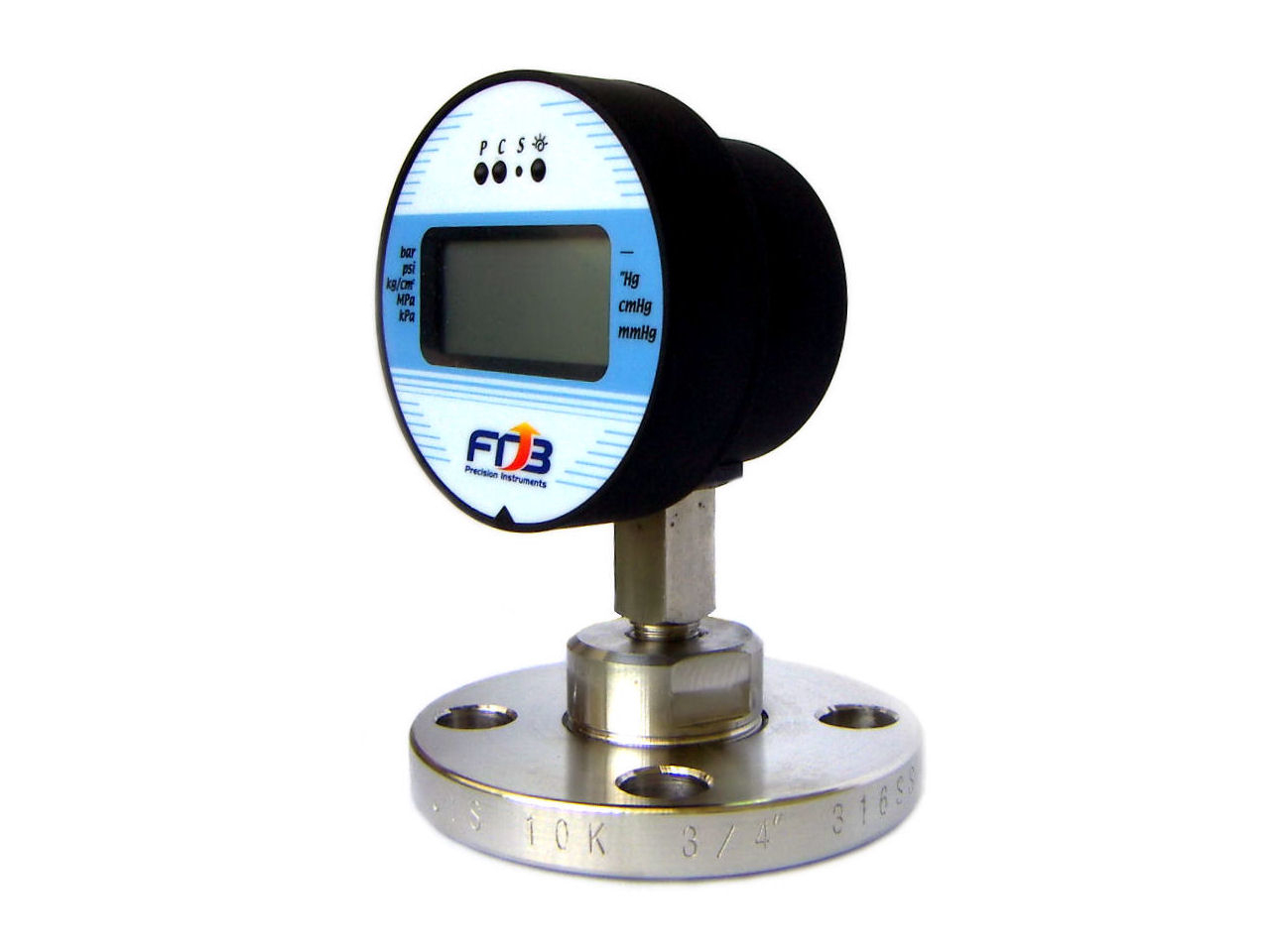

DPG-75 + FD-100

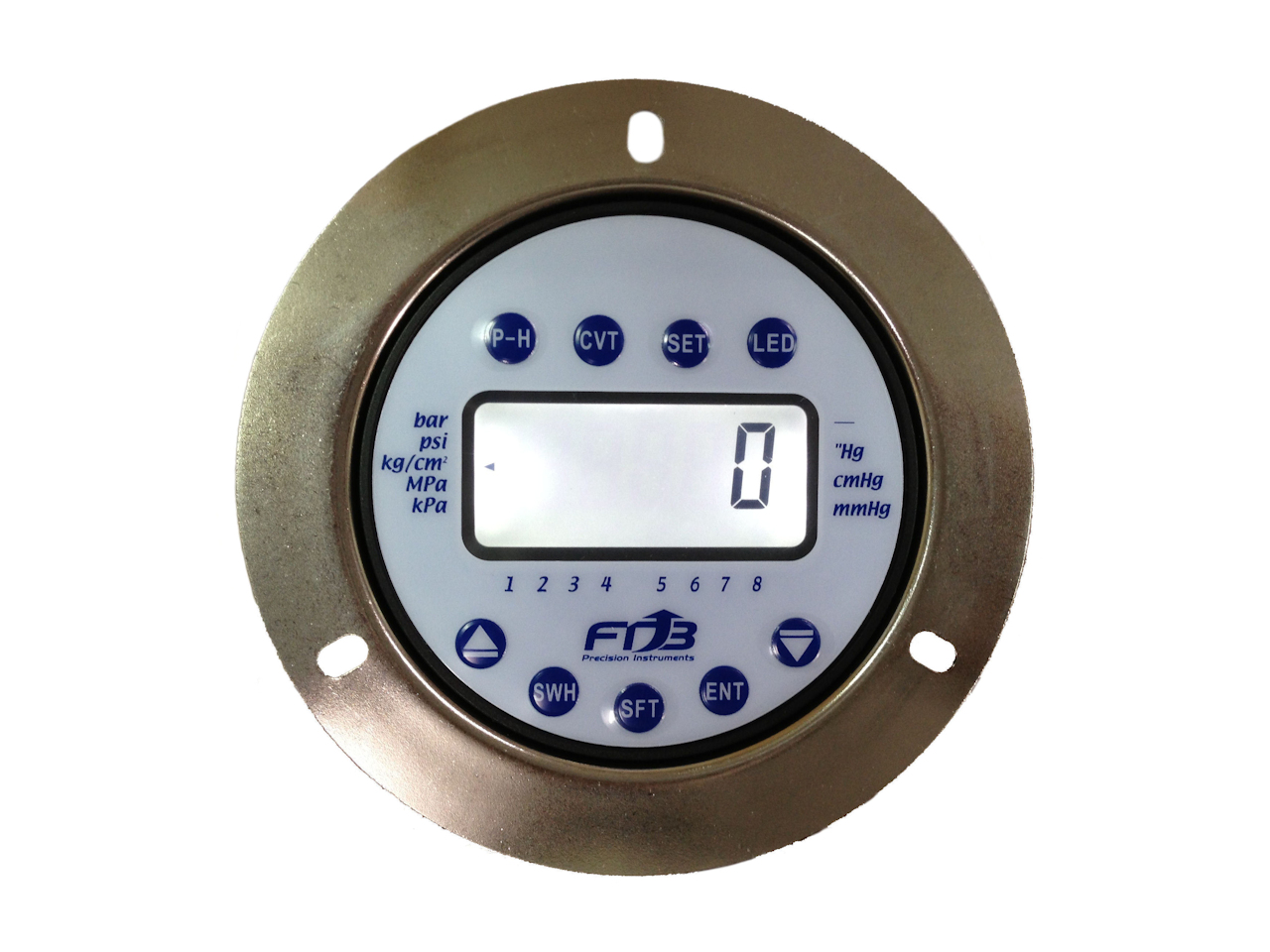

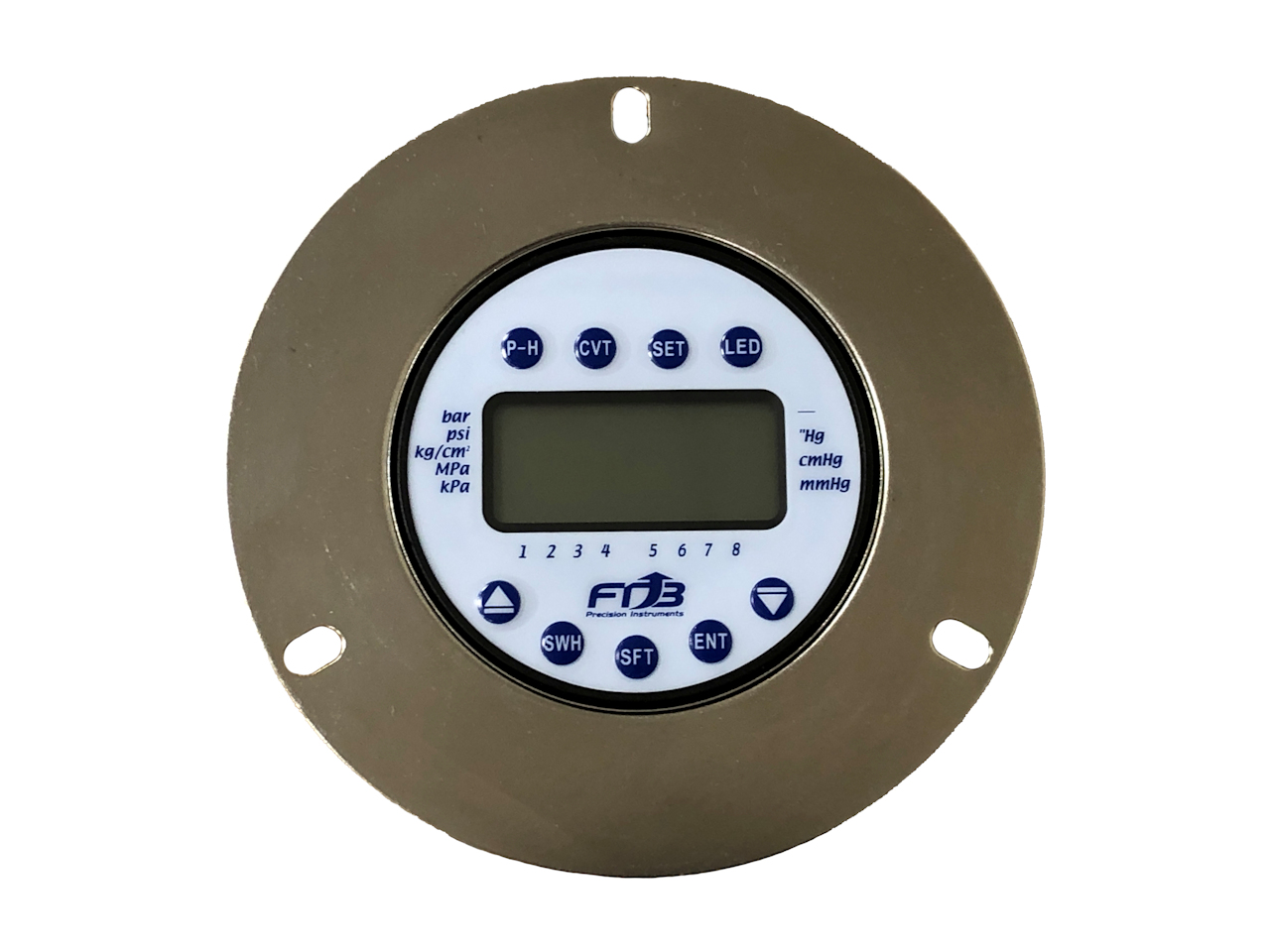

DPG-75II-4"Flange

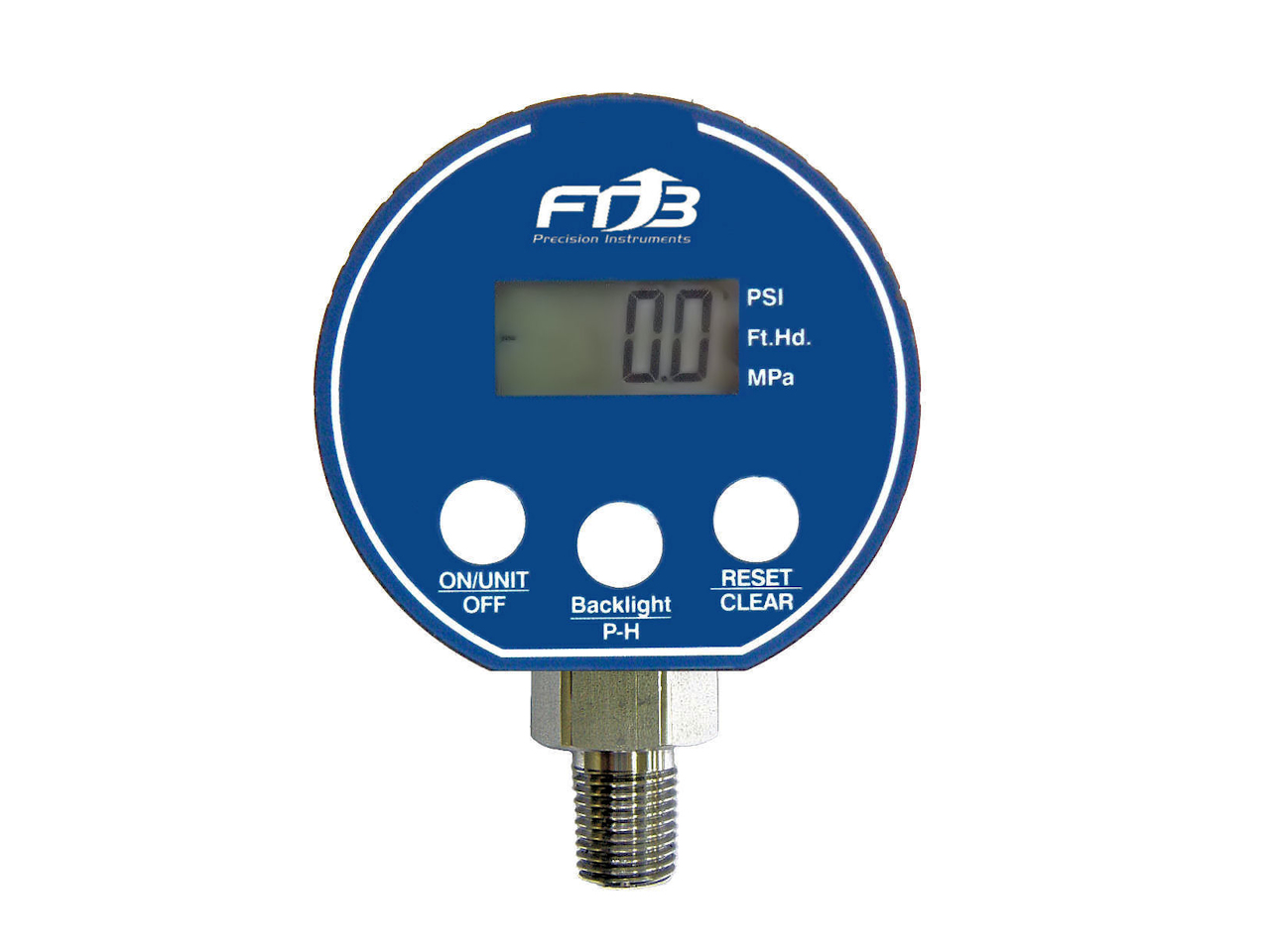

DPG-75-BP

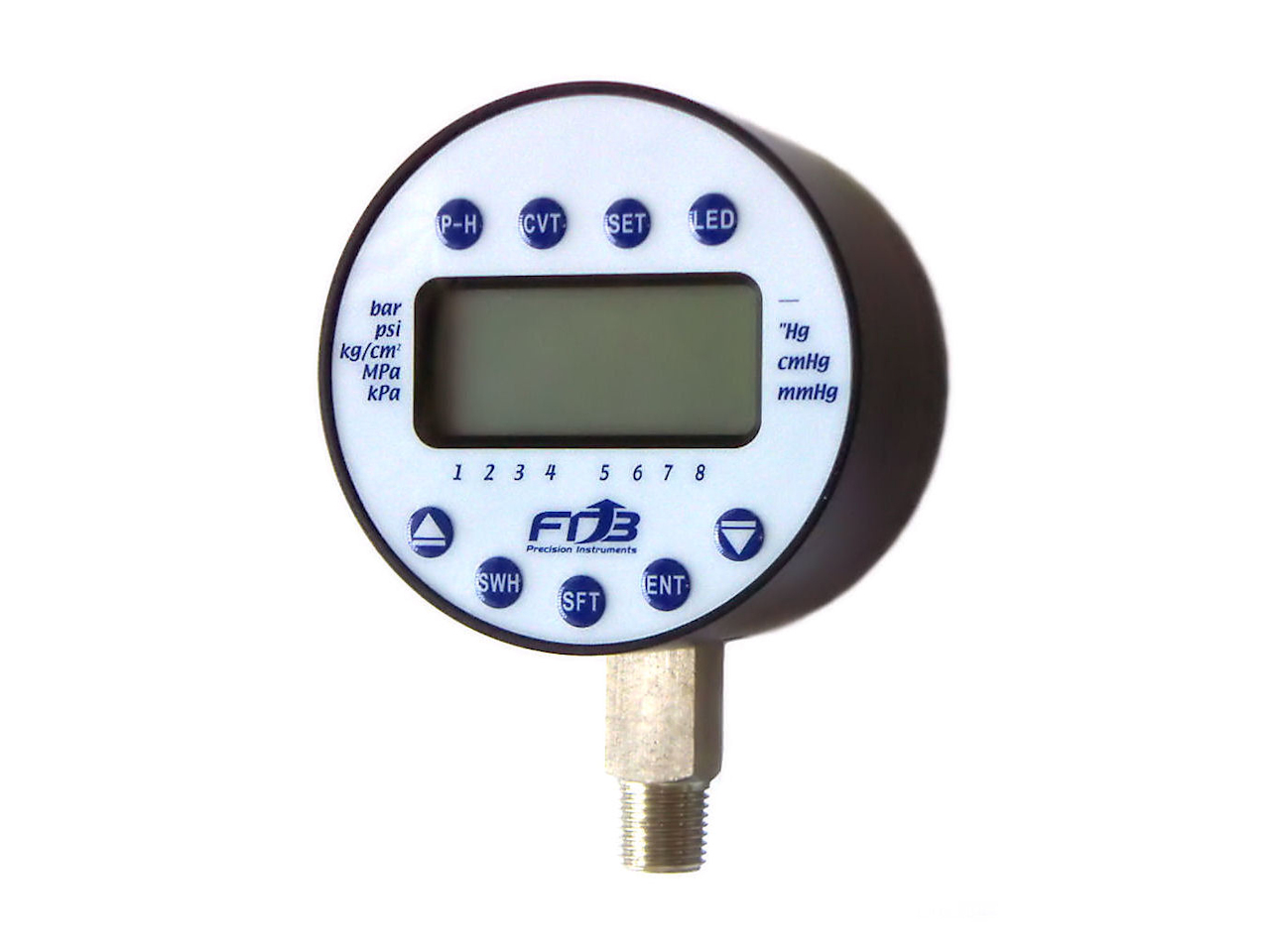

DPG-75 Lower

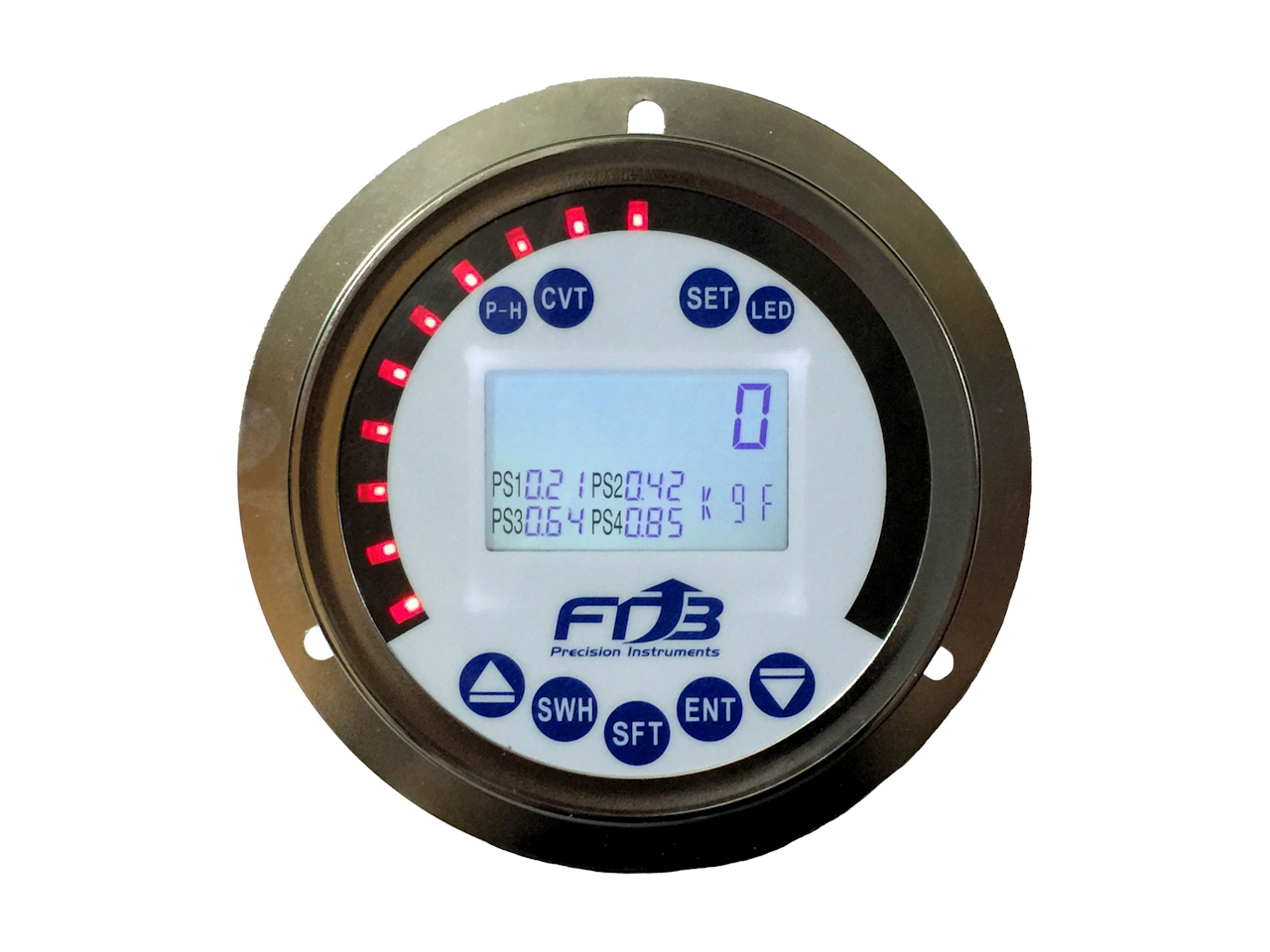

DPG-100-LBMF

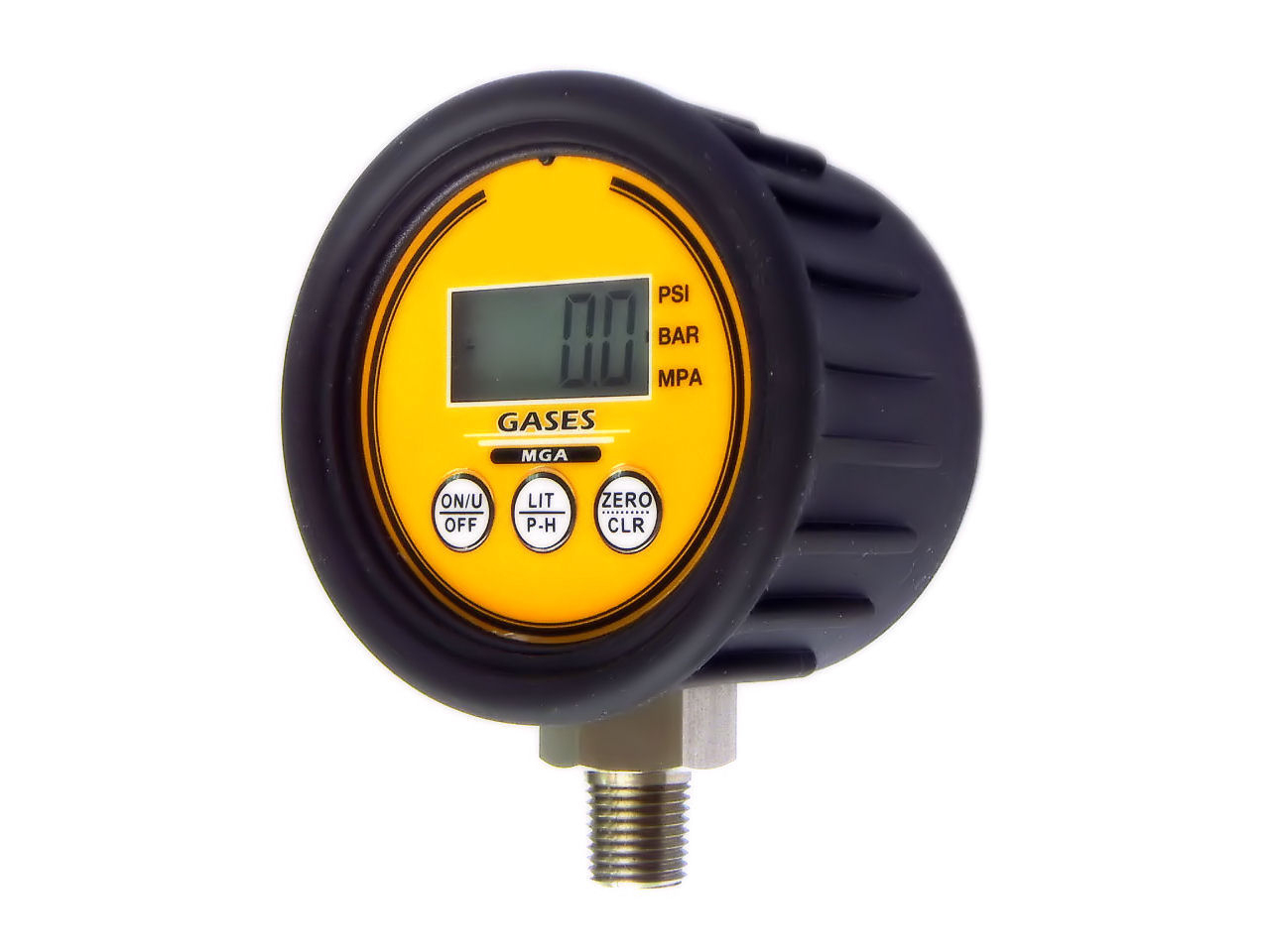

DPG-75-BP-1

DPG-75II-LBMF

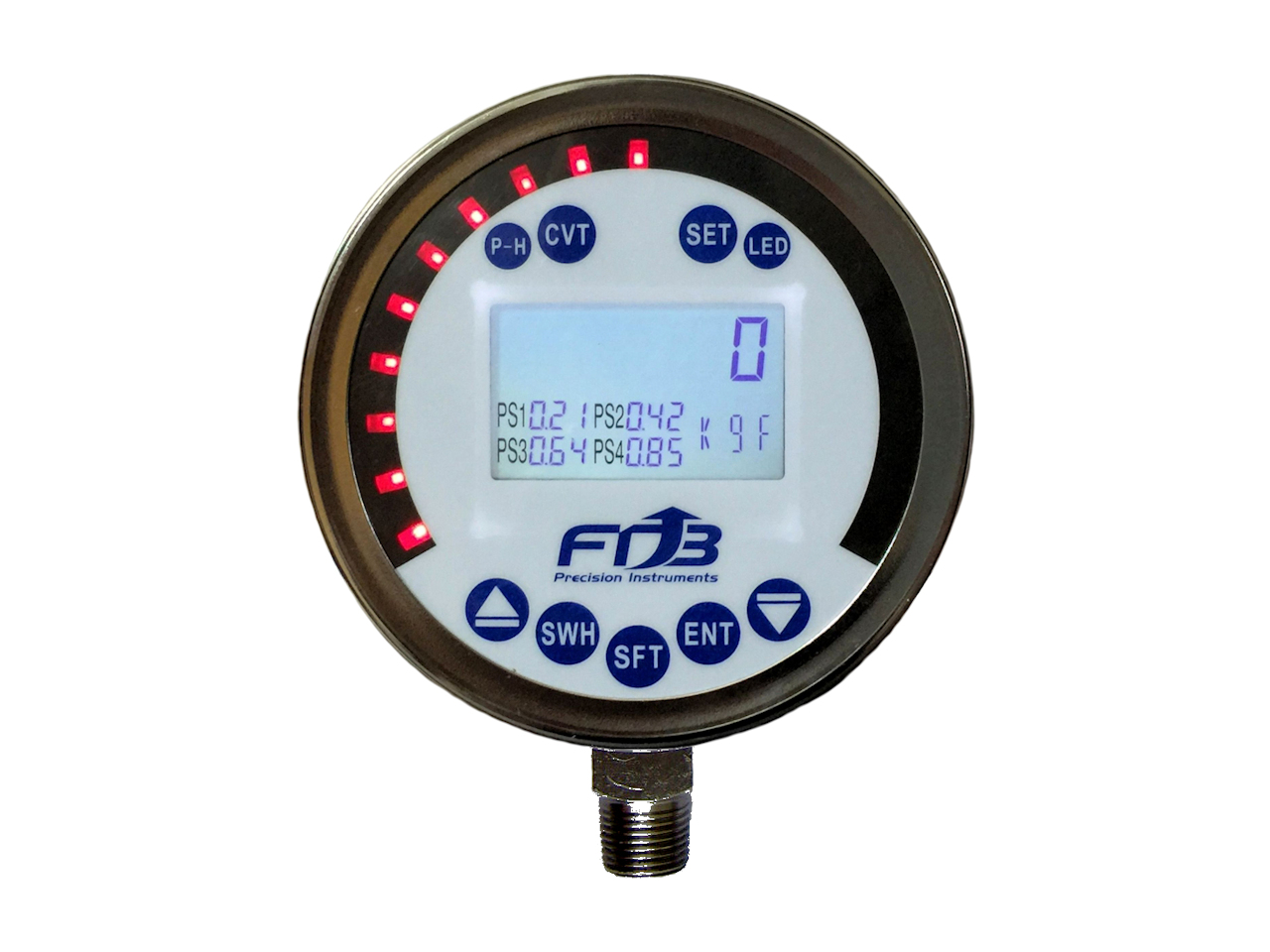

DPG-100-LM
