Gauge with Self-Defined Zones

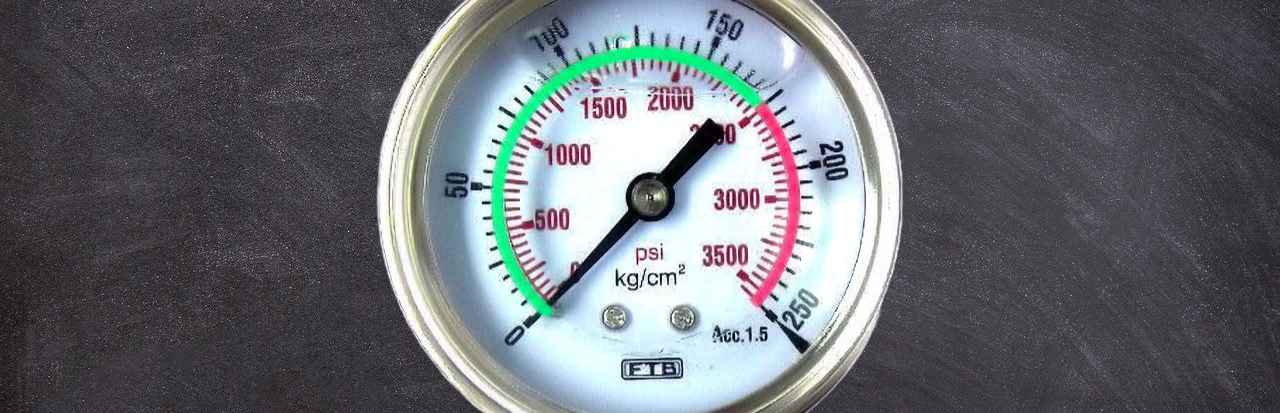

FTB Patented Pressure Gauge with Self-Defined Zones
 FTB Patented Self-Defined Pressure Gauges are especially suitable for the applications with special warming dials requested. Making your own dials is as easy as 1-2-3. Colored Bars are available with Green and Red only. Check out the features, specs., and other model numbers below for details. Available on 2.5" gauges only.

Model: Self-Defined Colored Bars
Mounting: Lower Mount, Back Mount, Back Mount with Flange, Back Mount with U-Bracket, Crimped or Bayonet Bezel.
Ranges: Positive 0-1000 bar in between, Negative (Vacuum), and Compound.
Case: SS304
Tubing: SS316, Brass, or Phosphor Bronze.
Movement: SS316 or Brass.
Connection: SS316 or Brass.
Accuracy: 1.5% F.S.
Scale: Dual Scale psi, bar, kPa, MPa, kg/cm2, etc.

Photo Gallery

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.

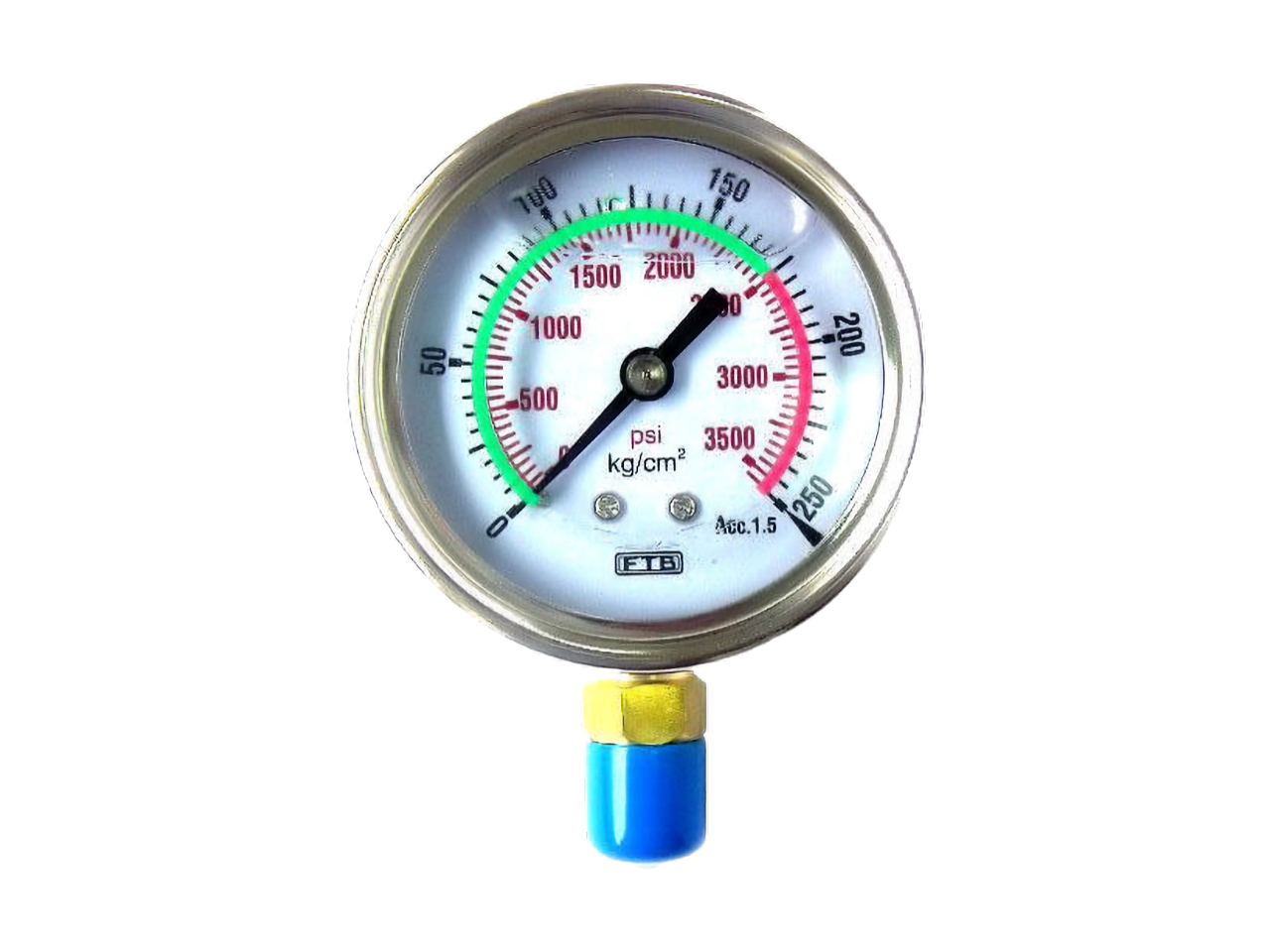

Pressure Gauge with Self-Defined Zones

323-11-SD
