Smart LoRa/WiFi IoT Ward Medical Oxygen Pressure Gauges and Flow Meters

Smart LoRa/WiFi IoT Ward Medical Oxygen Pressure Gauges and Flow Meters
IoT application suitable for medical oxygen monitoring at wards for monitoring, logging, and analyzing usage of oxygen for patient treatment. Data stored at cloud for analysis. The data provided include oxygen pressure, oxygen flow, oxygen concentration, total oxygen flow used by patients, etc., which can be used by the hospital to analyze oxygen supply data and treatment benefits. More info to download here.

FEATURES:
LoRa/WiFi transmission
Real-time accessibility 24/7
Store oxygen data at cloud including oxygen usage, flow rate, oxygen pressure, and oxygen concentration
Device expansions available

SPECS:

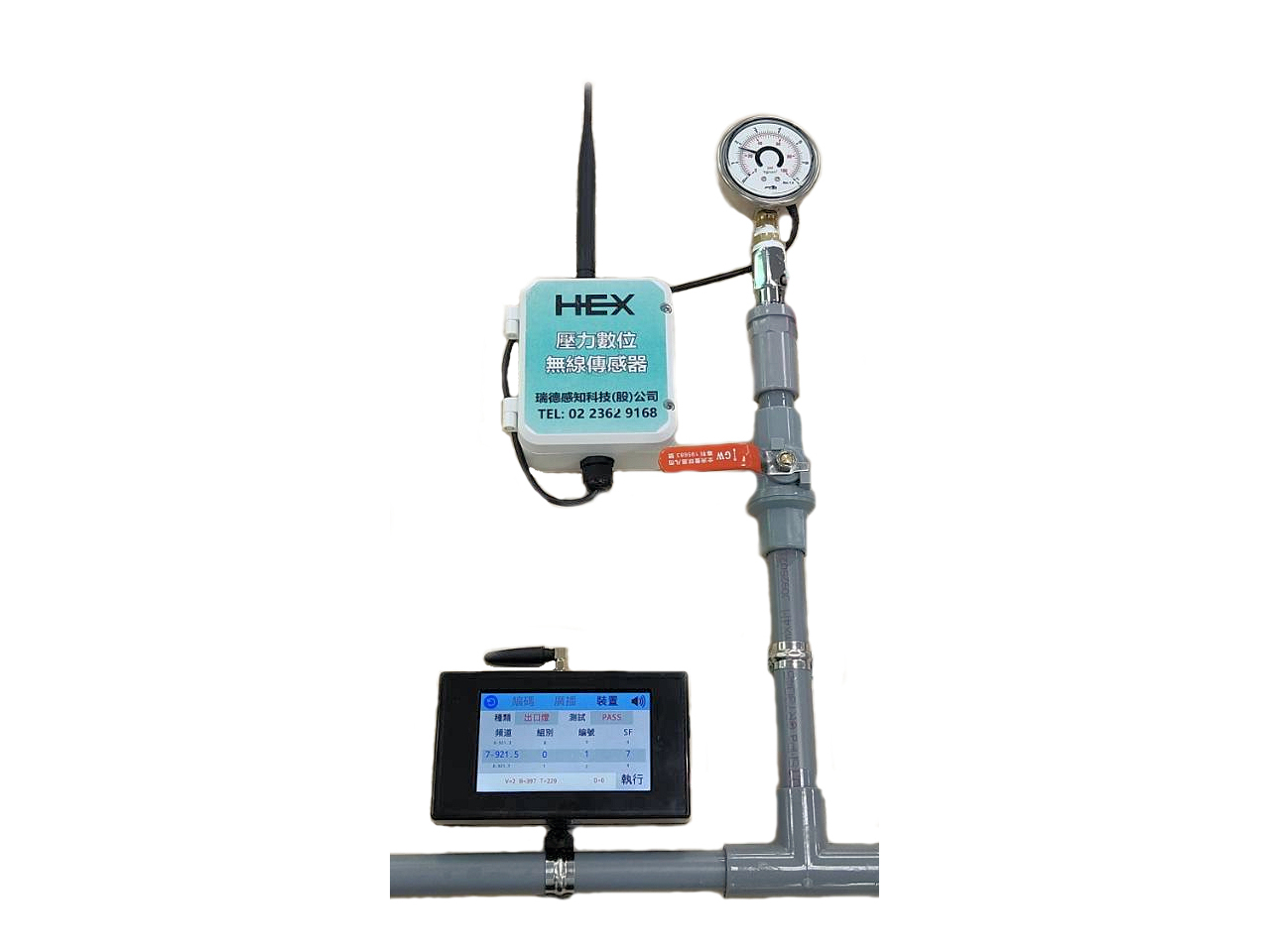

Models: MTG-63 Pressure Gauge and Flow Meter
Pressure Ranges: 0-3000 psi or assigned by customers.
Dial Sizes: 63 mm
Bourdon Tube: Standard brass with optional SS316
Movement: Standard brass
Connection: Standard brass, 1/4" PT or NPT, PF to choose from
Pointer: Plastic
Case: Stainless Steel, Lower Mount
Engineering Units: psi, kg/cm2, MPa
Voltage: DC 24V
Transmission: Alays-on
Connectivity: LoRa/WiFi, RS-485 RTU, RS-485 TCP
NCC-ID: CCAL24LP1070T1

LoRaWAN Gateway/ Web Portal/ iOS/ Android:
Supplied Free of Charge for Web Portal, iOS & Android downloads. LoRaWAN gateway will be quoted along with SIG-36 together. Software supported languages are English, Traditional Chinese, Simplified Chinese, Japanese, and Korean.
iOS: Download Here
Android: Download Here
FeXGuarD User's Manual: Download Here
FeXGuarD Backend Administrator's Manual: Download Here
SIG-36 Installation Guide: Download Here
SIG-36 Manual: Download Here

Videos:
Chinese
Jananese

PowerPoint Presentation:
English

• Catalogs Download

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.

MTG-36 Pressure/Flow Meter

SIG-36-Complete

LoRaWAN Gateway 090B
