Inductive Contact Pressure Gauges

CE Approved Inductive Contact Pressure Gauges
All models are with German-made inductive contact device, which are worldwide used and with the finest quality in the world making switching easy and durable. Check out the specs. and other model numbers on specs(21), specs(22), specs(23), and Product Gallery for details.

Models:

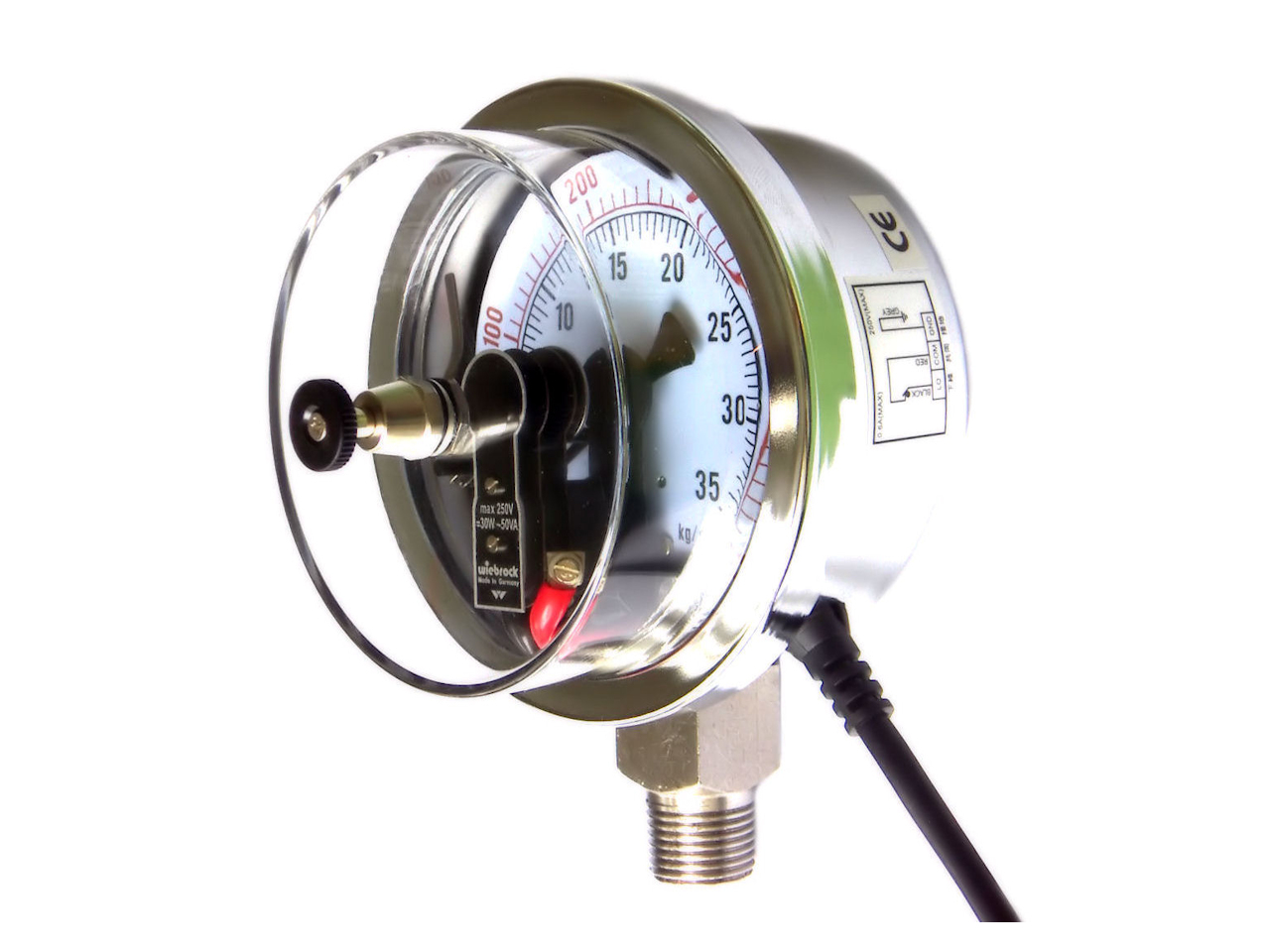

1) IPG-100-LM Lower Mount, upto 4 Contacts Offered.

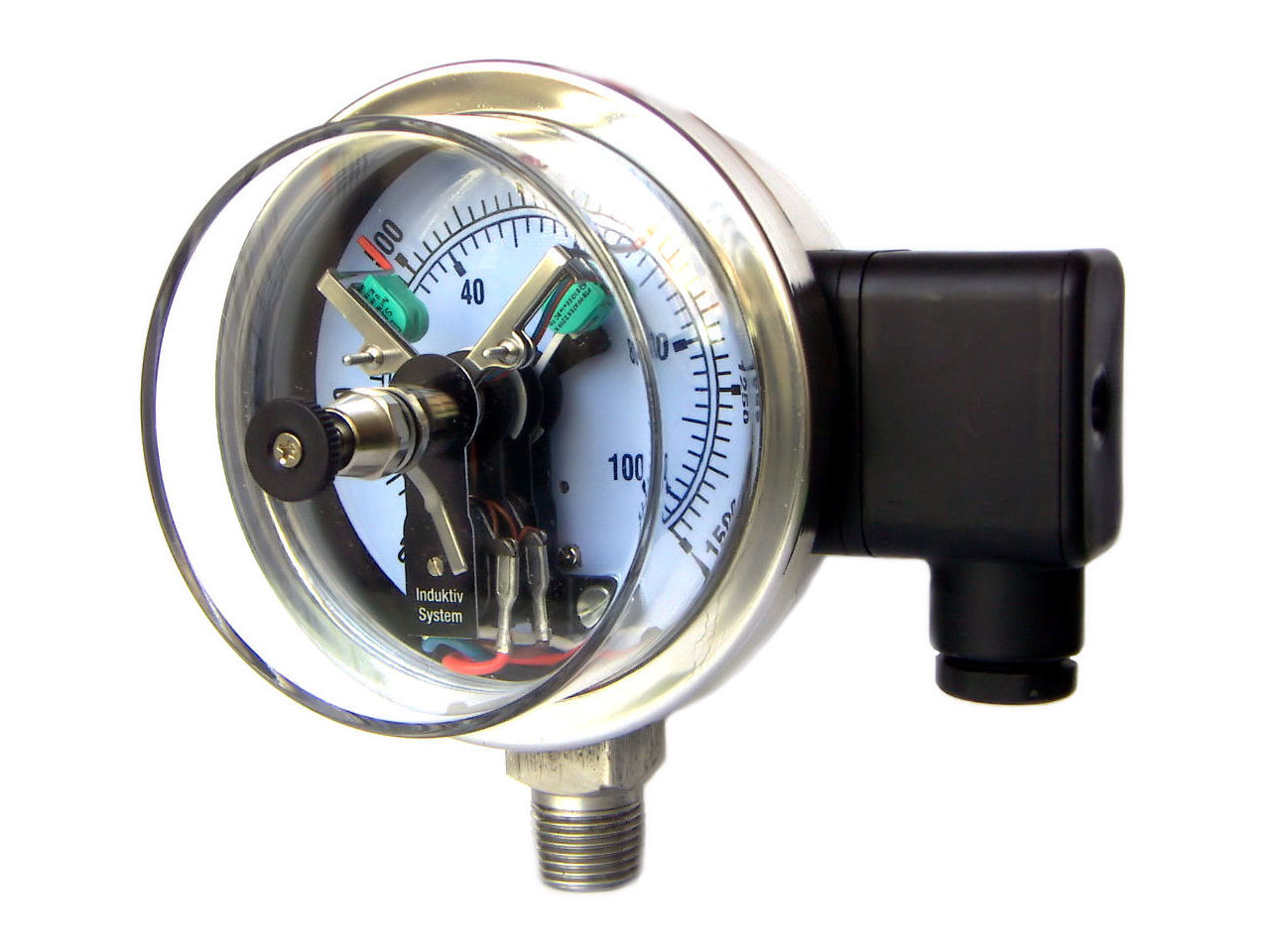

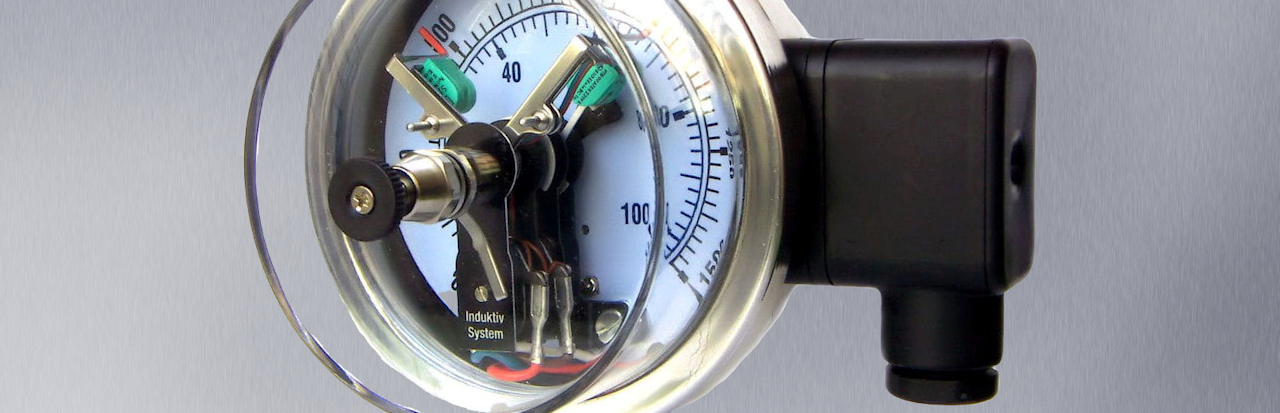

2) IPG-100-LM-1 Lower Mount with Cable Box, upto 4 Contacts Offered.
3) IPG-100-LM-2 Lower Mount Cable Box with Explosion Proof Case, upto 4 Inductive Contacts.

Specifications:
Pressure Ranges: Positive, Negative (Vacuum), Compound
Case: AISI SS304
Lens: Acryic or Glass
Pointer: Aluminum
Bourdon: AISI SS316
Movement: AISI SS316
Connection: Standard Brass, Optional AISI 316, 1/4" or 1/2" PT, NPT, PF
Wiring: Fixed Cable or Germany-Imported PG 13.5 Cable Box
Contact: High A(NO), Low B(NC), up to 4 Contacts
Accuracy: 1.0% F.S.
Engineering Units: psi, bar, kPa, MPa, kg/cm2, and etc.

Technical Data:
Electrical Version: DC Voltage, 2-wire to DIN 19 234 (NAMUR)
Nominal Voltage: 8 V=(Ri approx. 1K Ohm)
Operating Voltage: 5-25 VDC
Current Consumption: ≧3 mA (active face uncovered), ≦1 mA (active face covered)
Switching Accuracy: Approx. 0.5% of the full scale value
Ambient Temperature: -20°C to +70°C

NOMINAL DATA (SJ 2 N Slot Sensors):
Switching Point with Fe Test Plate: Approx. 60% Insert Depth
Repeatability Accuracy R: ≦0.01 mm
Switch Hysteresis H: 0.05 to 0.2 mm
Testplate (Min. Dimensions Fe and non Fe): 5 mm x 8 mm x 0.5 mm
Working Voltage: 5-25 VDC
Residual Ripple: ≦5%
Switching Frequency: 5kHz
Protection Class to DIN 40 050: IP 67
Permissible Shock and Vibration (To IEC 68-2-6 and IEC 68-2-27): Accel ≦30g, T≦11 ms, f≦55 Hz, a≦1 mm
Method of Connection (The cable has to be fastened permanently when ambient temperature is above 80°C): 0.5 m, Mini-Flat-Cable, 0.06 mm².

• Catalogs Download

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.

IPG-100-LM

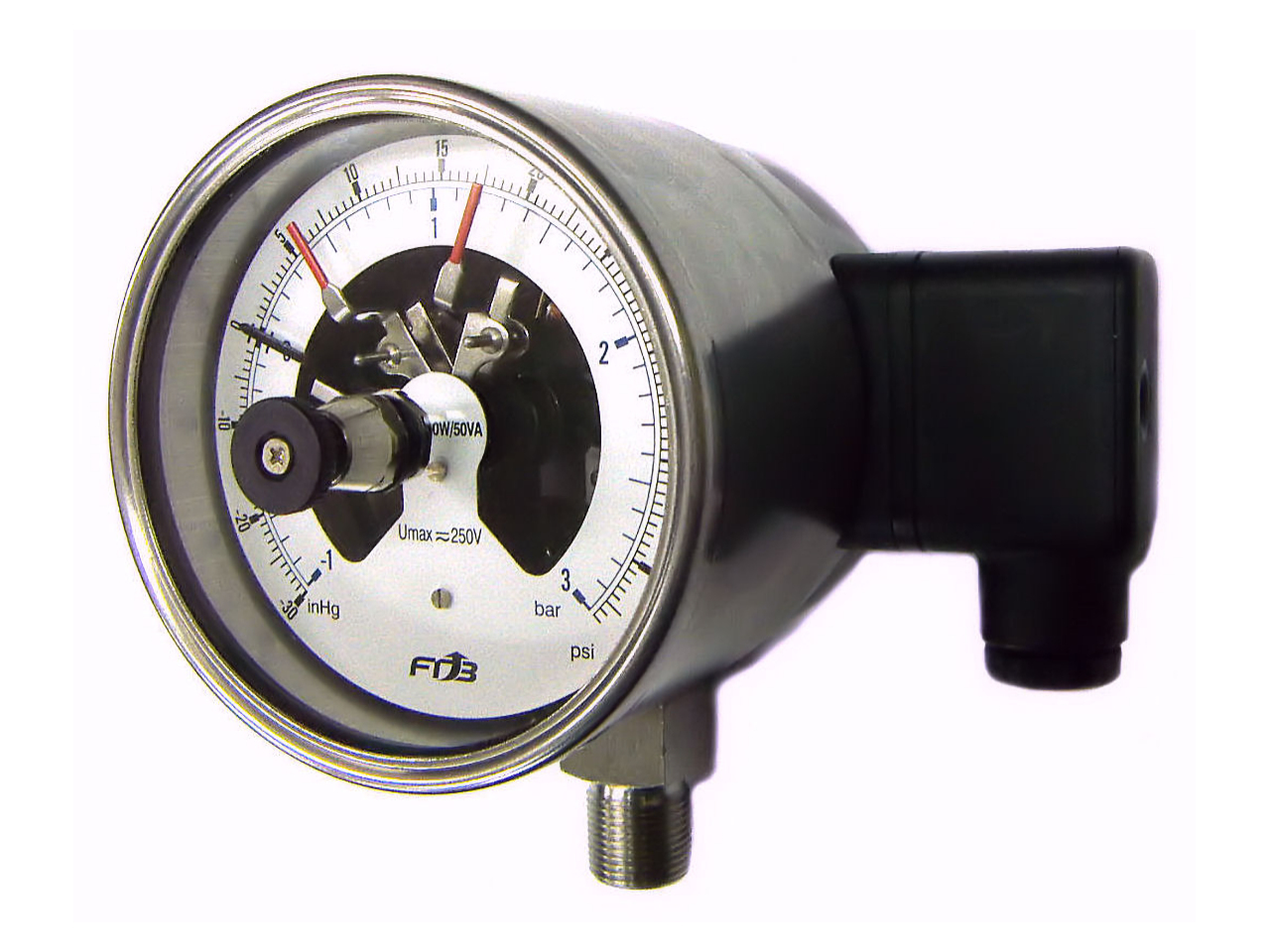

IPG-100-LMF-2

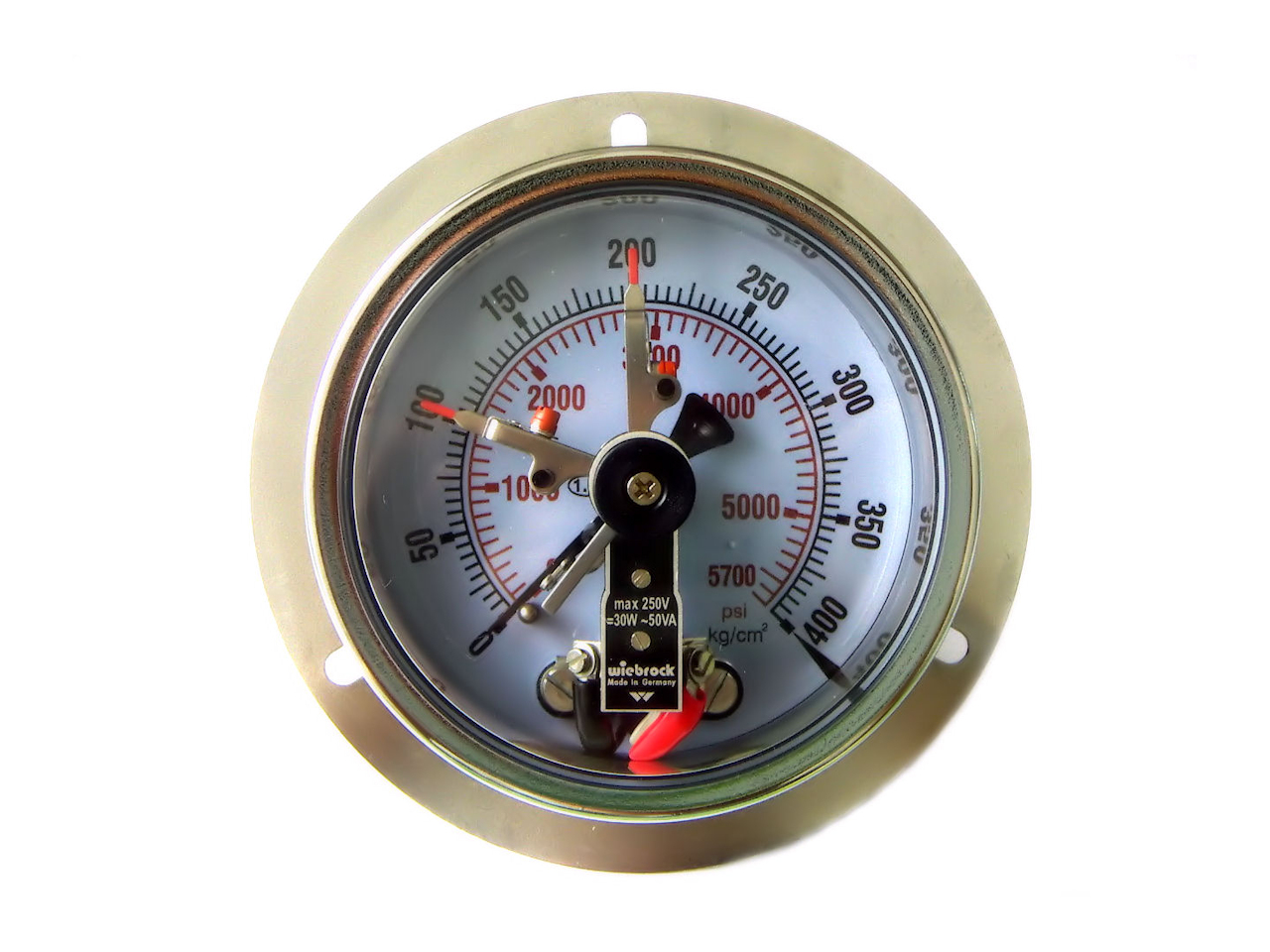

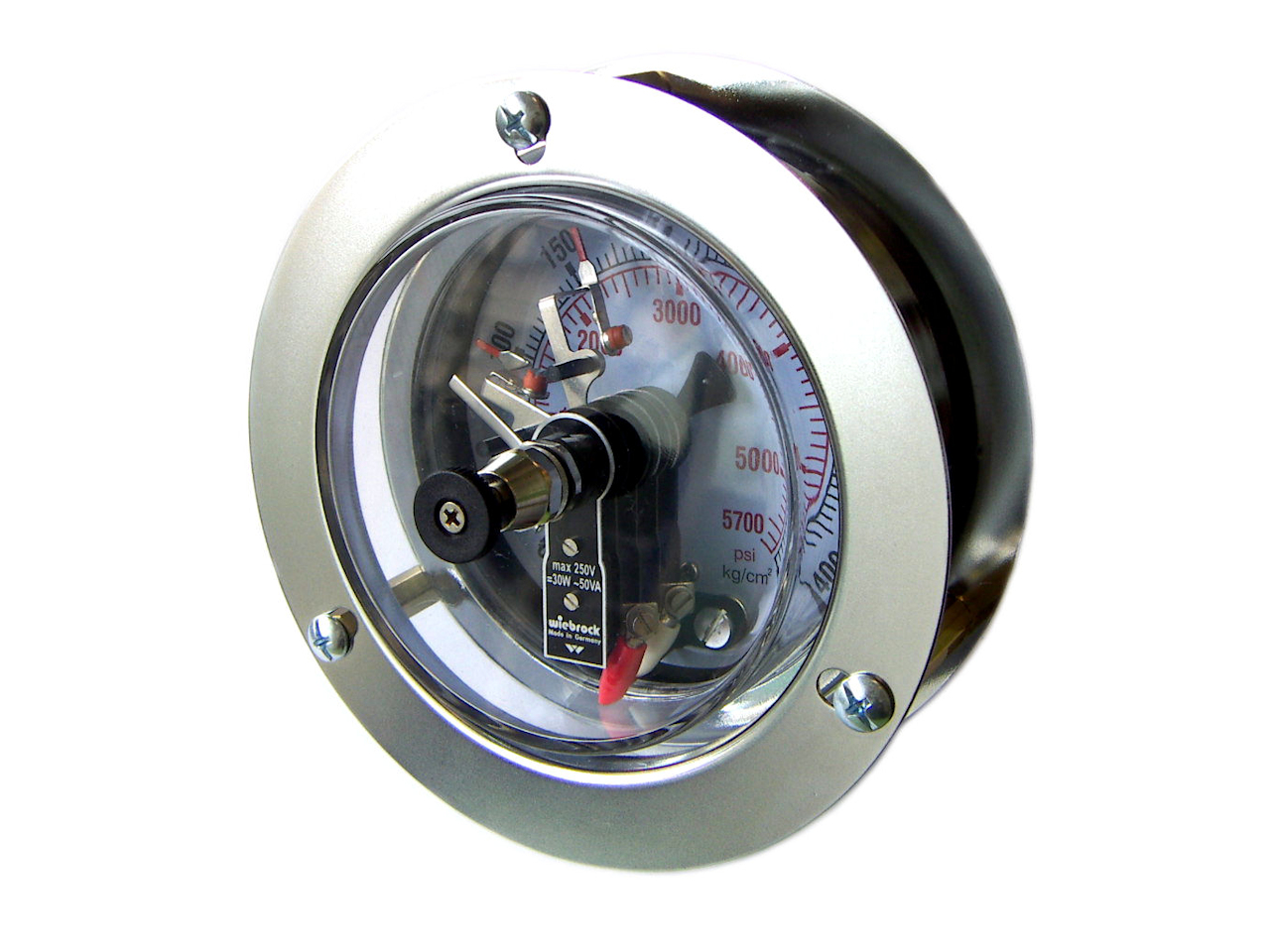

IPG-100-LBMF

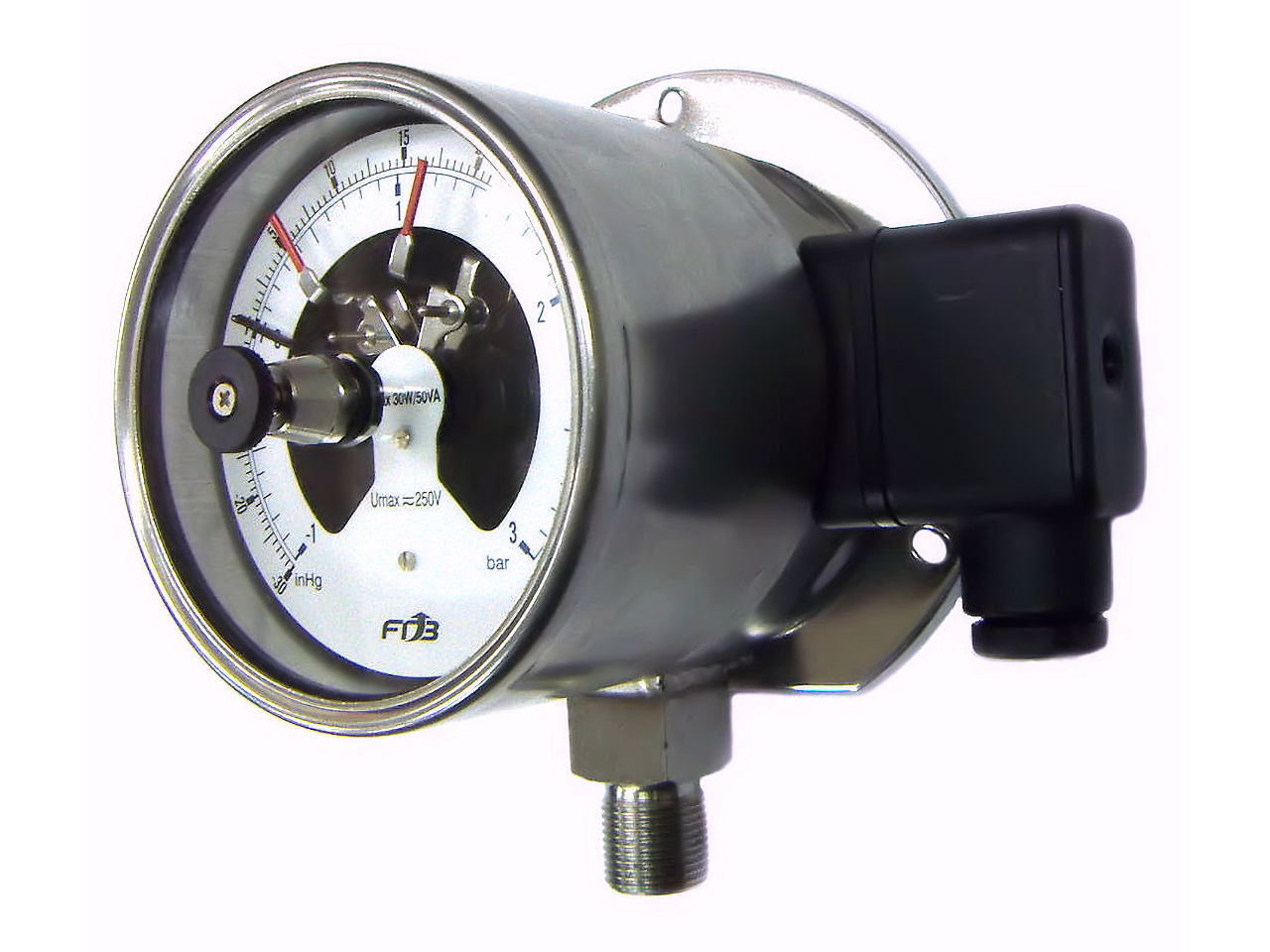

IPG-100-LM-2

IPG-100-LM-1

IPG-100-LBMF
