Pressure Switch Gauges (Fixed Contacts)

CE Approved Pressure Switch Gauges (Patents Registered Worldwide)
The EEPG-40/50/63 Non-Contact Type Pressure Gauge with Switch is manufactured under the FTB-Developed and Patent-Pending Technology for the core contact system of the gauge using the "non-contact" sensoring system as the major device to keep the switchings more smooth, accurate, quick, and thus make the life-span longer. The major benefits and features of EEPG-40/50/63 are specified below.

Features:
1) Pressure gauge with non-contact sensor works best for the applications where pressure switches are necessary. Because of the benefits of a combination of a high quality pressure gauge with FTB Patent-Pending "non-contact" Technology, the EEPG-40/50/63 performs merely no tolerances for the pressures setup on EEPG-40/50/63. This is because of the integration of a non-contact sensor built inside the quality FTB pressure gauge to minimize the tolerances for both devices.
2) Non-Contact Sensor built inside the quality FTB pressure gauge provides a perfect system without the concerns of the contact burning phenomenon for contact type switch.
3) Quick operating and releasing time to meet the requirements for quick operations from the applications such as rubber injection machines.
4) Optional stainless steel AISI 316 Bourdon Tube or Movement to enrich the life-span of the EEPG-40/50/63.

Specifications:

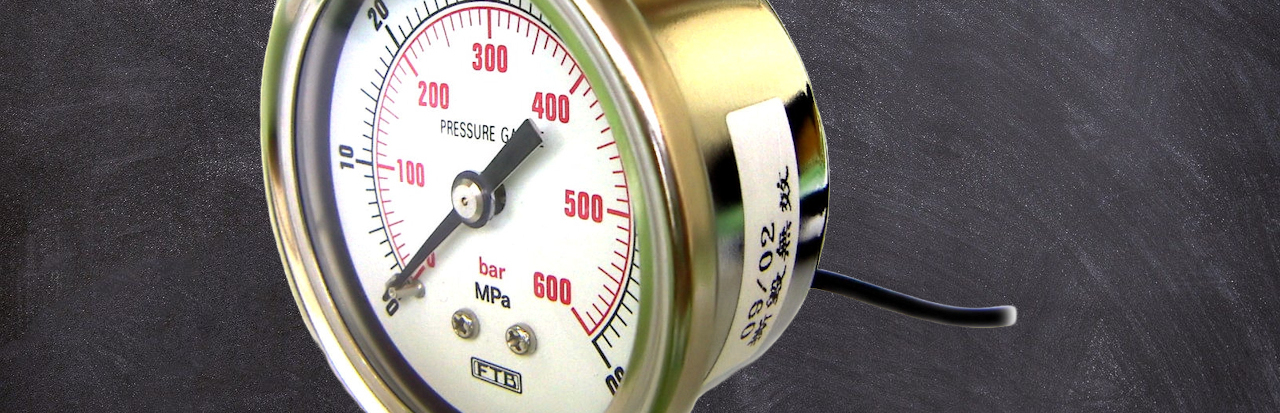

Model: EEPG-63 (Size 2 1/2", fixed setting)
Model: EEPG-50 (Size 2", fixed setting)
Model: EEPG-40 (Size 1.5", fixed setting)
Mounting: Bottom, Back, Bottom with Back Flange, Back with Front Flange
Ranges: Positive, Negative (Vacuum), and Compound
Dial Sizes: 63 mm, 50 mm, 40 mm
Case: Steel with Chrome-Plated, Bayonet Ring
Lens: Acrylic Pointer: Aluminum, Black Lacquered
Tubing: Standard Brass, optional Stainless Steel AISI 316, or Phosphor Bronze
Movement: Standard Brass, optional Stainless Steel AISI 316, or Phosphor Bronze
Connection: Standard Brass or optional Stainless Steel AISI 316
Wiring: 1.5-Meter Wire
Contact Type: High Contact (A-NO), and Low Contact (B-NC)
Control Type: Single or Double Contact(s)
Accuracy: 1.5% F.S.
Scale: psi, bar, kPa, MPa, kg/cm2, and etc.

Technical Data:
Contact Form: SPST Form B
Operating Voltage: 24 VDC / 110 VAC (Maximum)
Switching Power: 10 VA
Switching Current: 0.7A AC / 0.7A DC
Carrying Current: 1.5A AC / 1.5A DC
Operating Time: 1.0 Millisecond
Releasing Time: 0.2 Millisecond
Operating Temperature: -40 to +125 C
Storage Temperature: -50 to +155 C

Catalogs Download

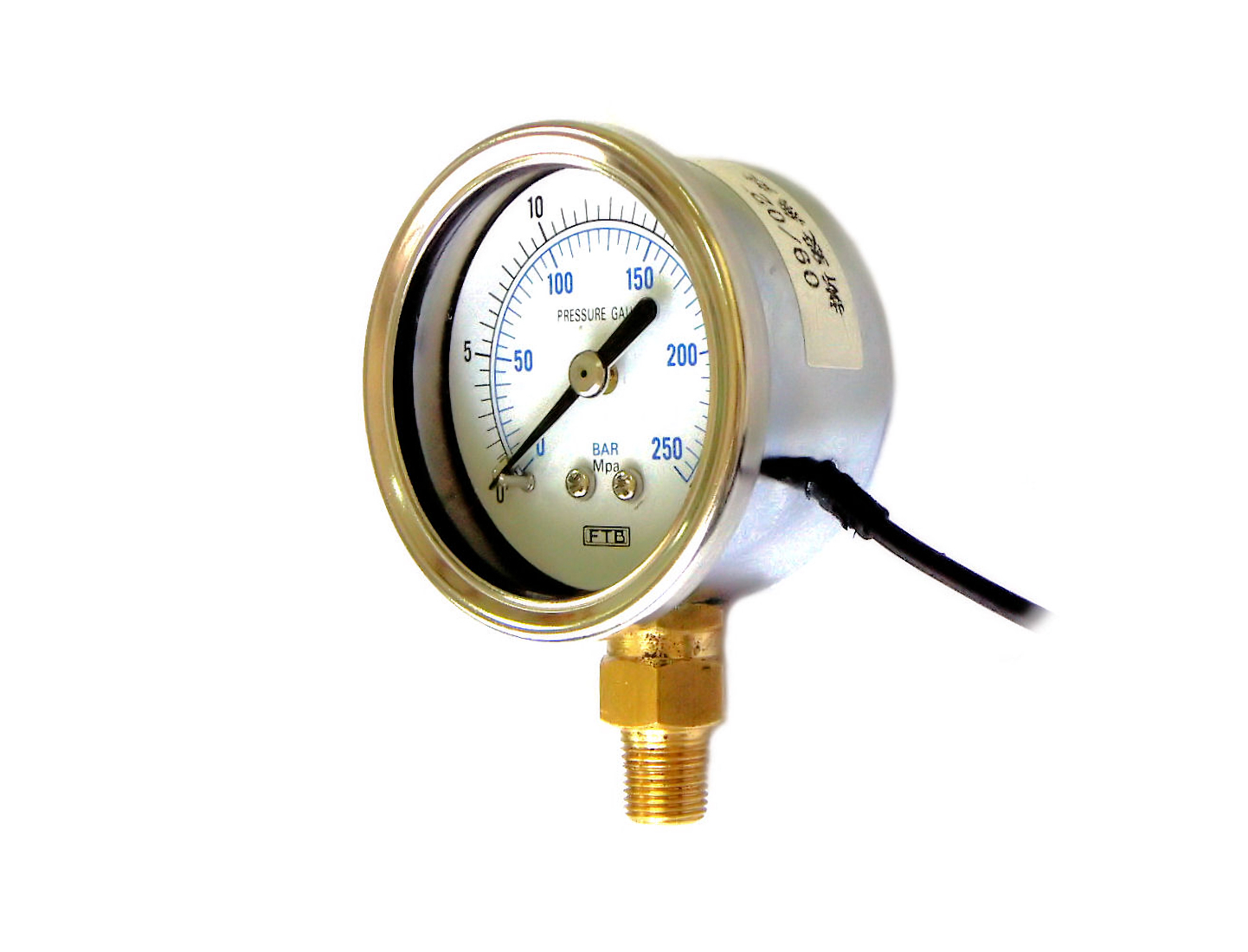

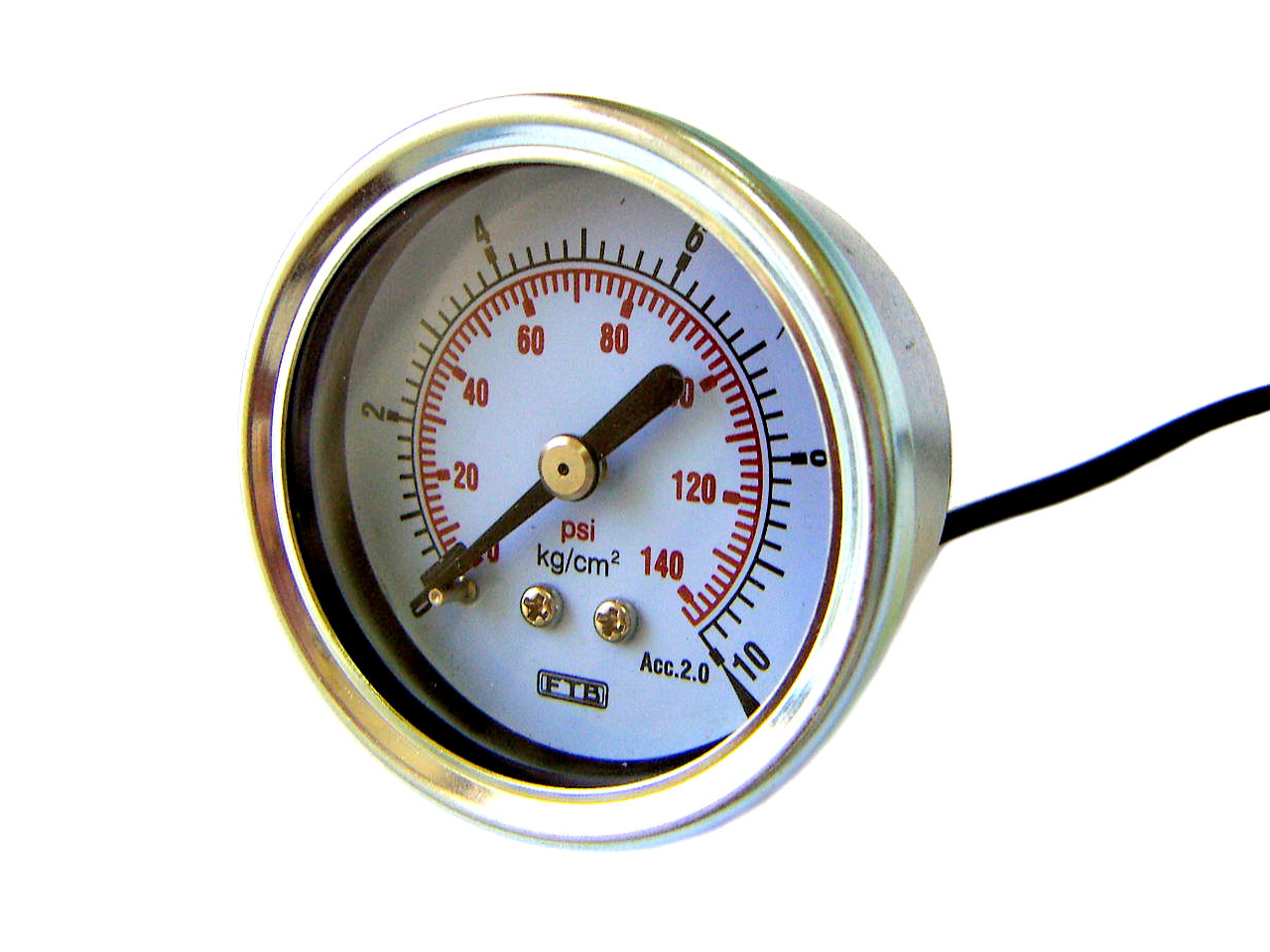

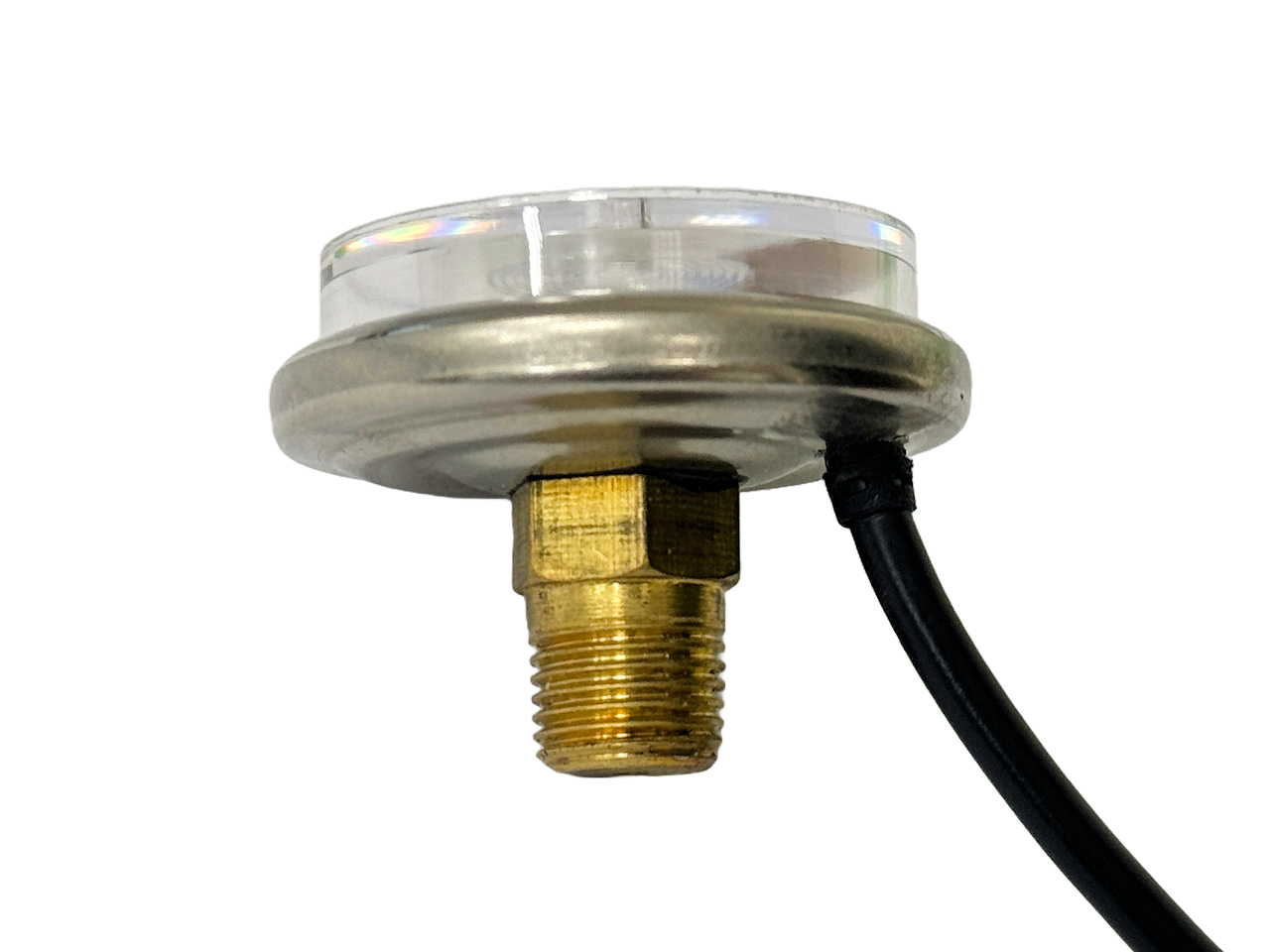

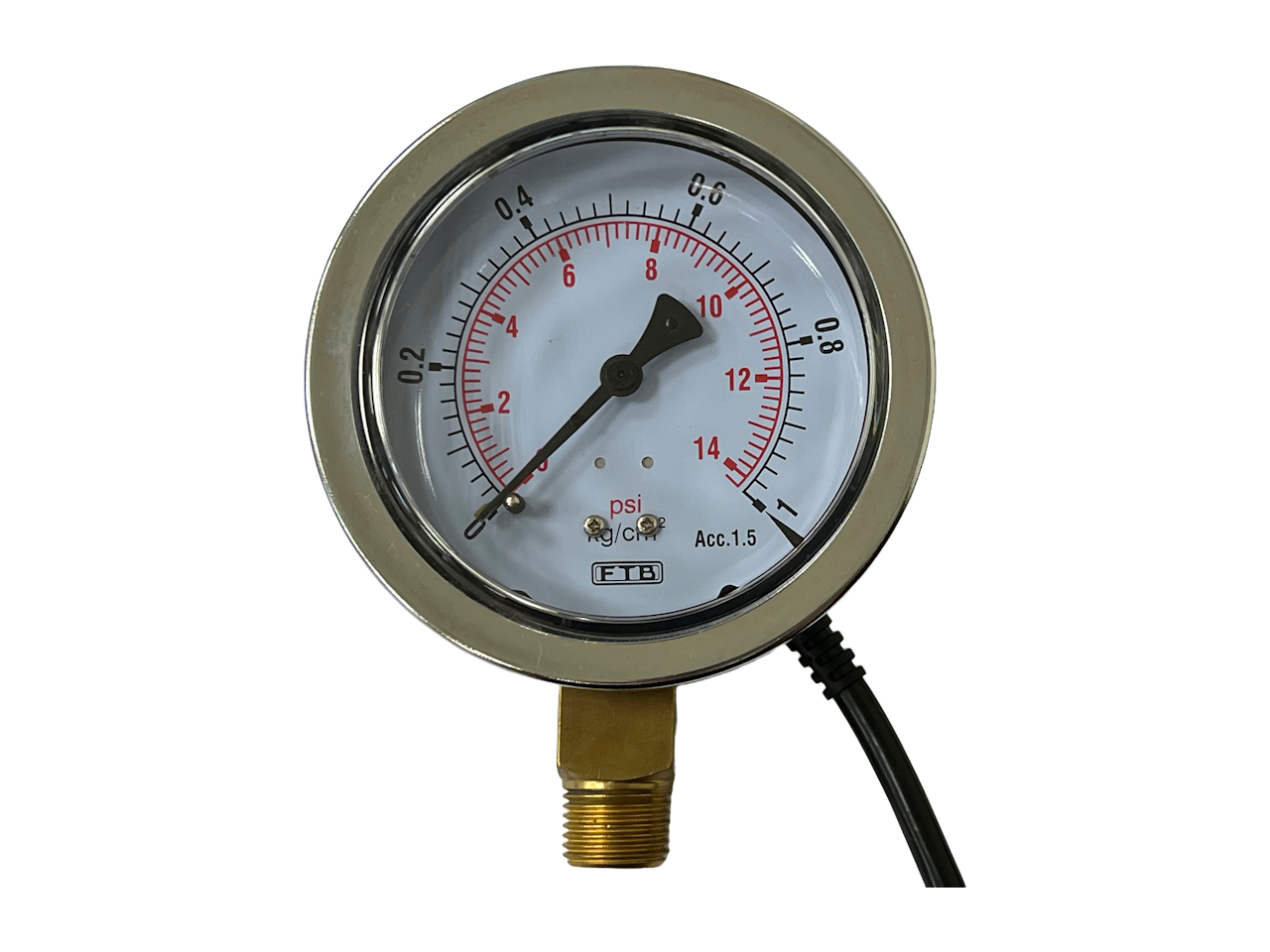

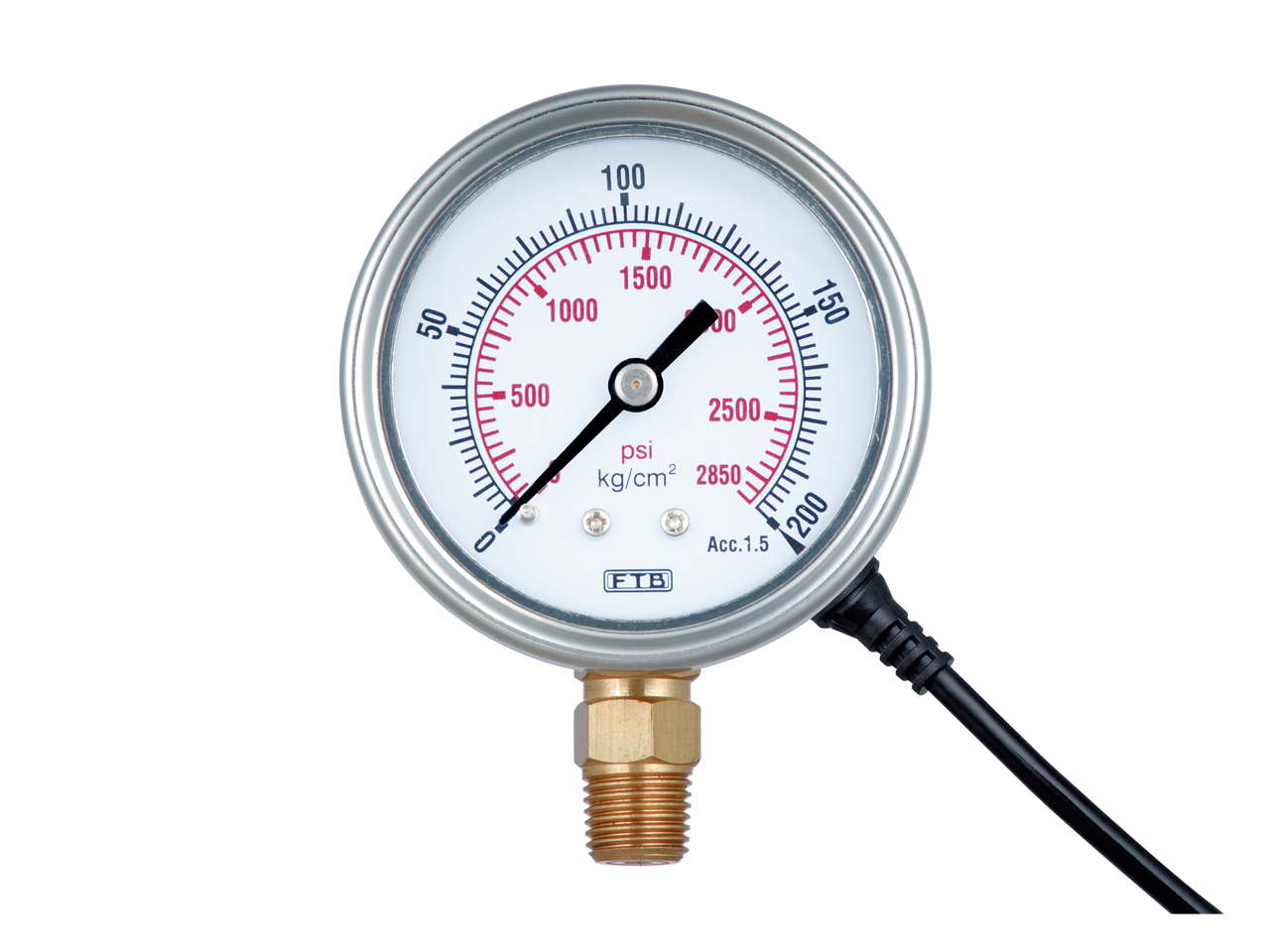

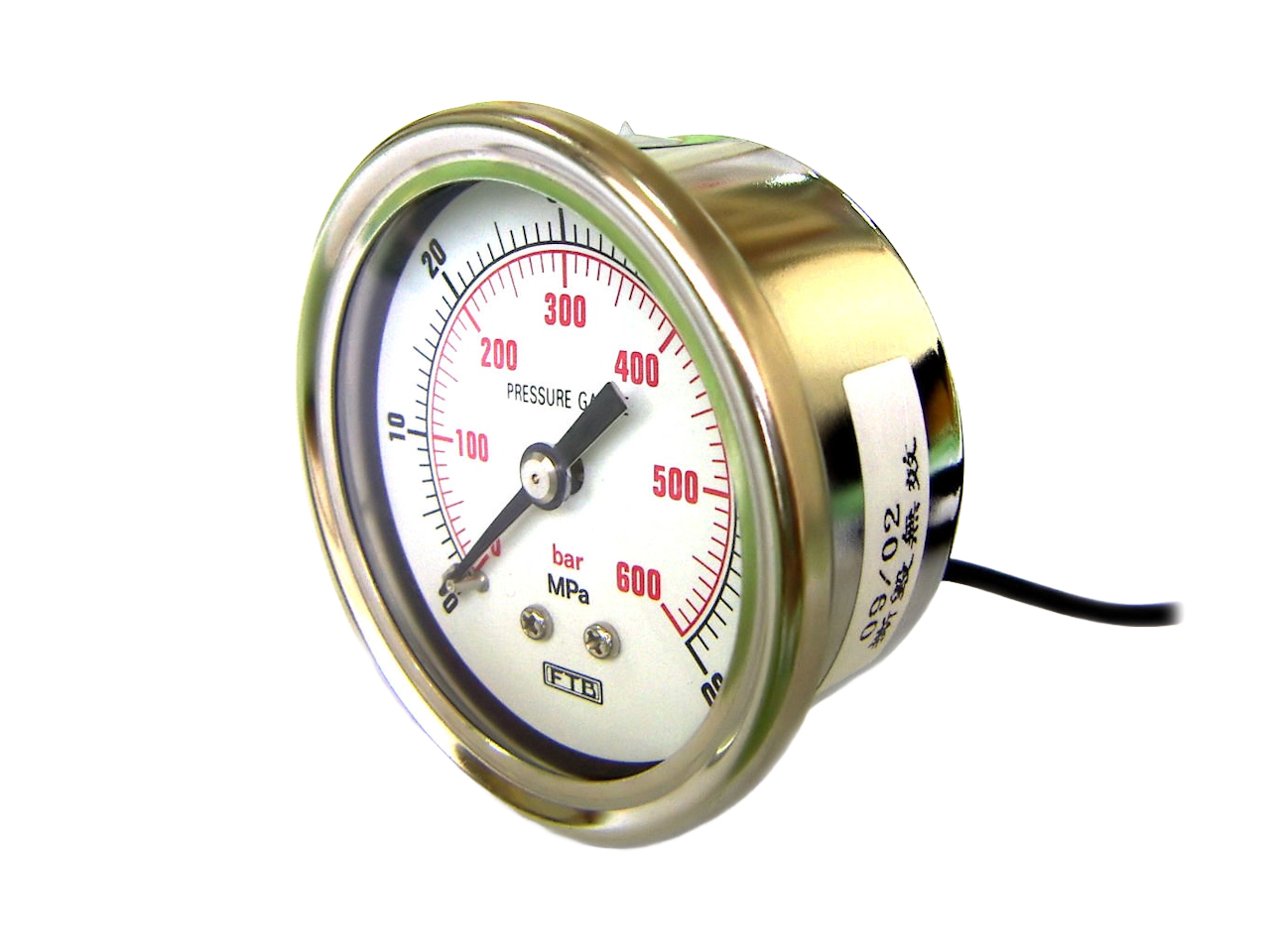

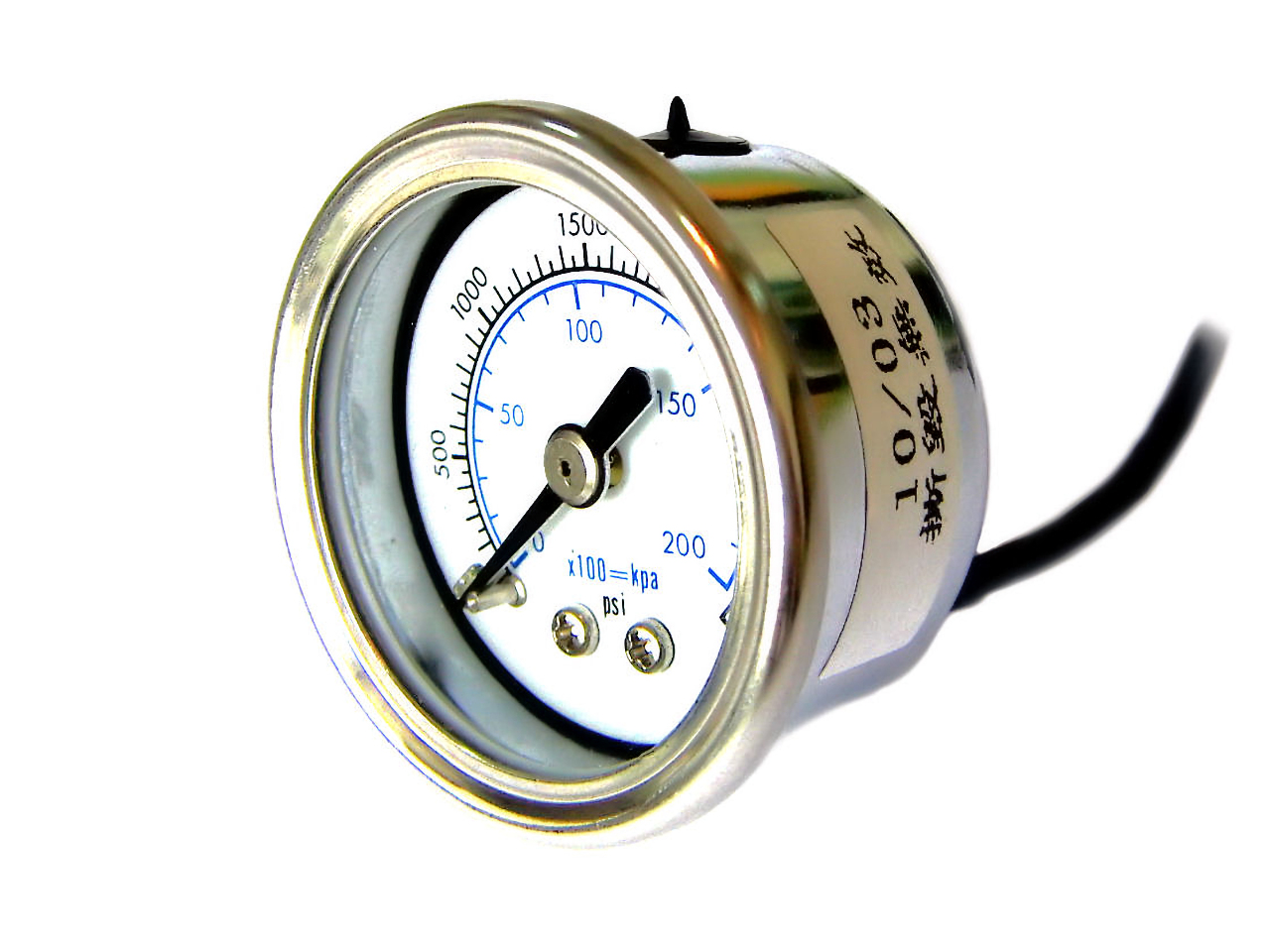

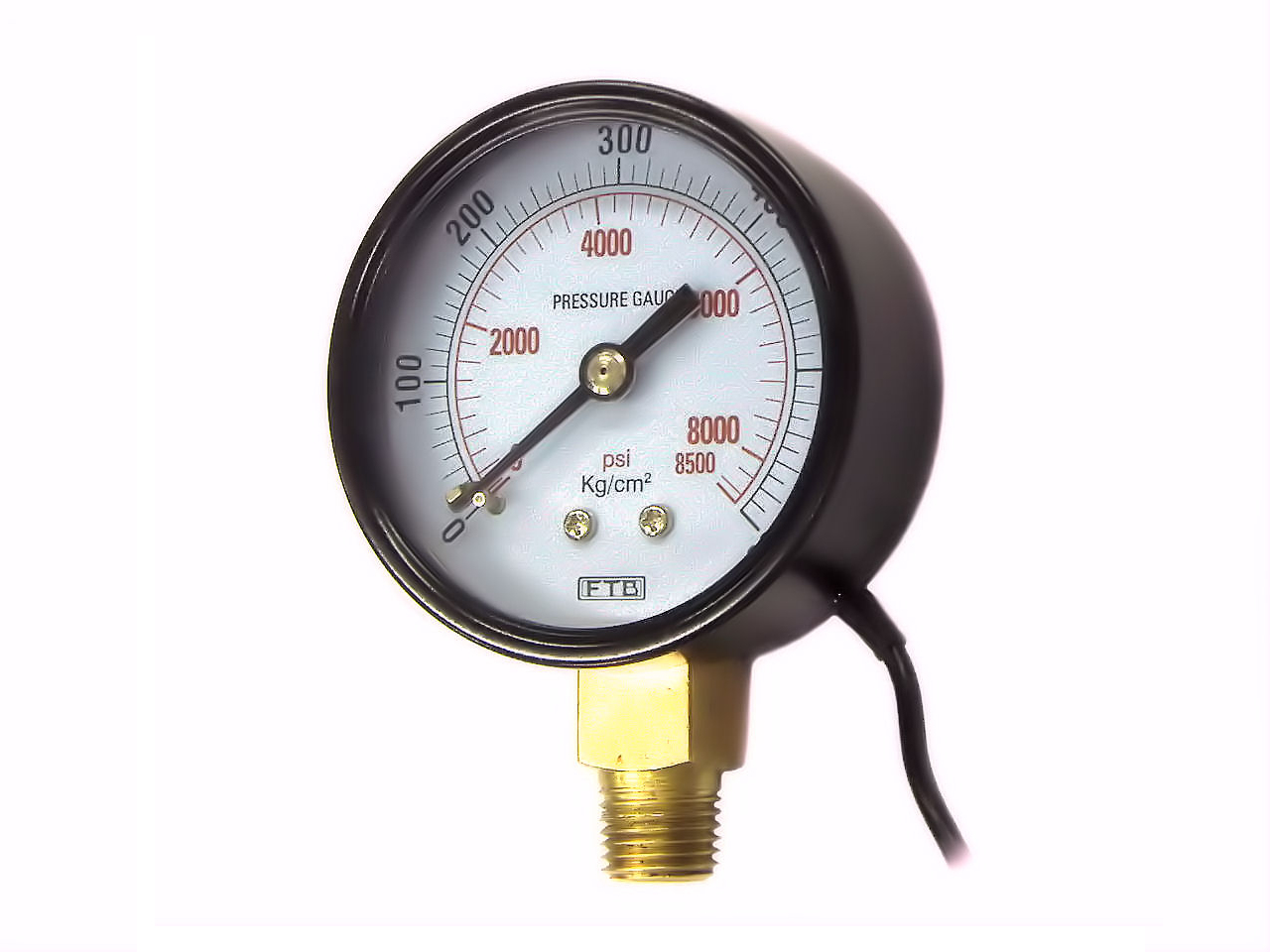

Photo Gallery

If you are looking for some specific models for your applications, below images might be available possibly; however, they are not all of our products in the case. In case of our products not shown below, please write us directly at ftb@ms3.hinet.net for your requests. Thank you.
